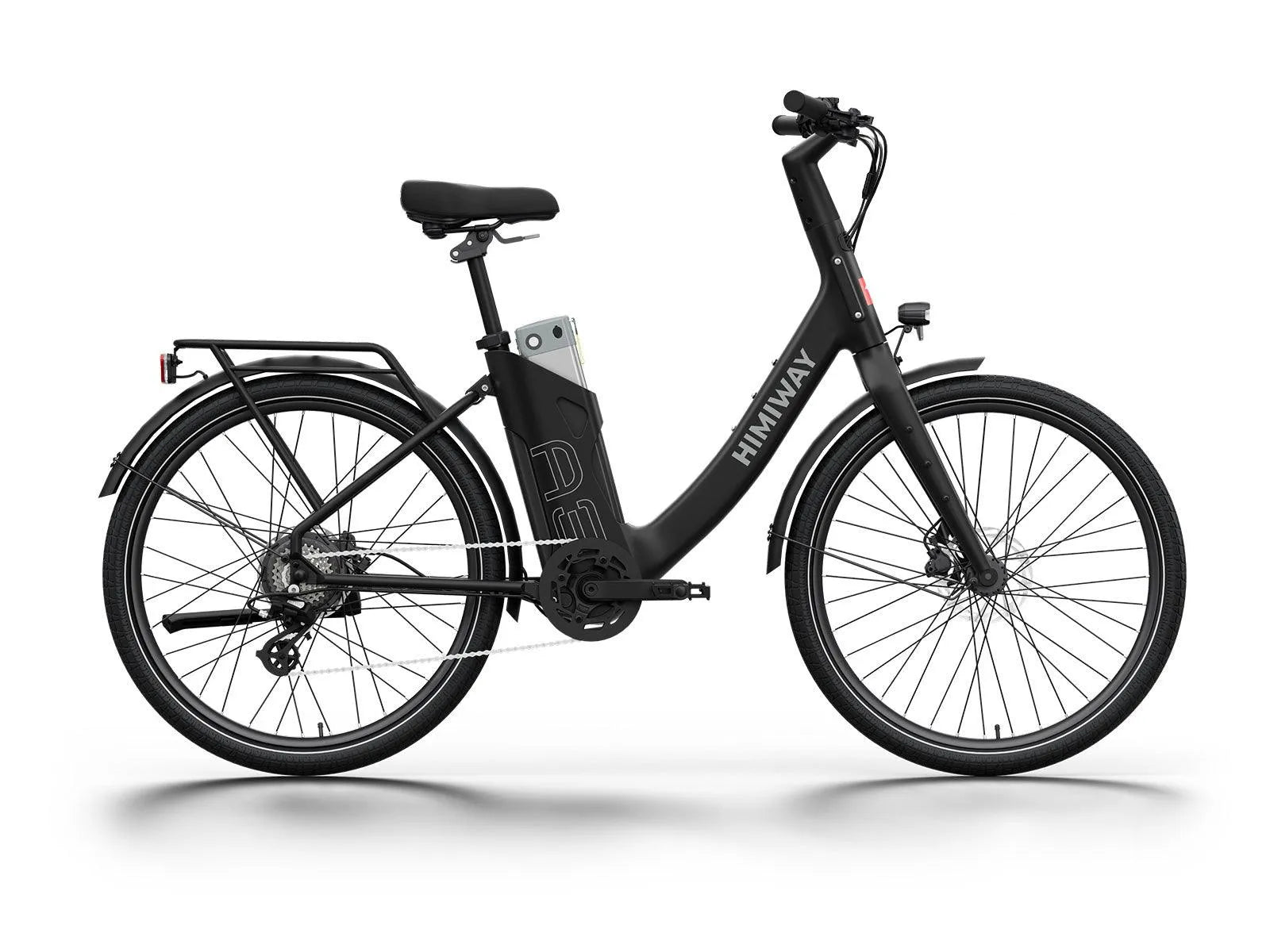

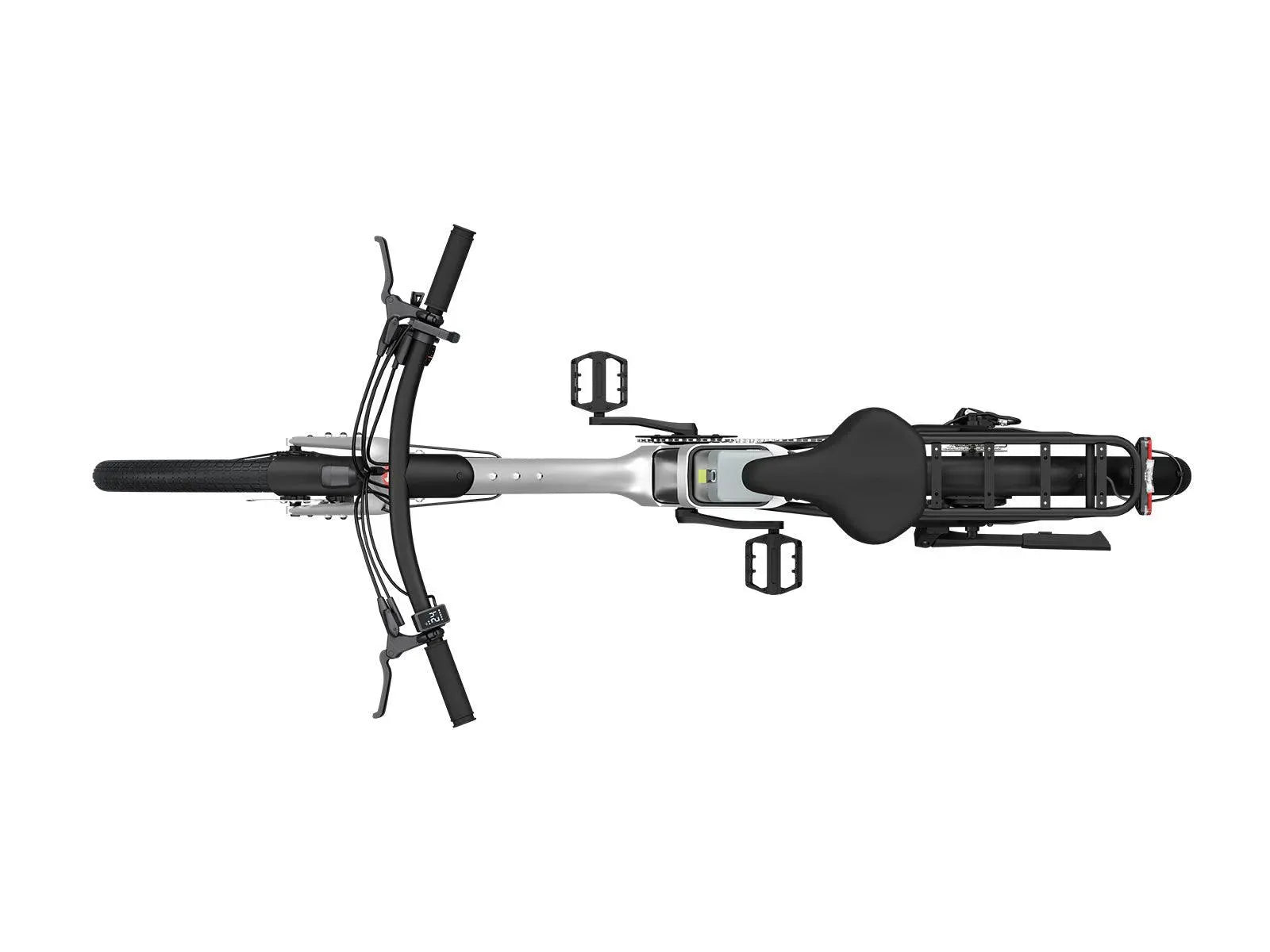

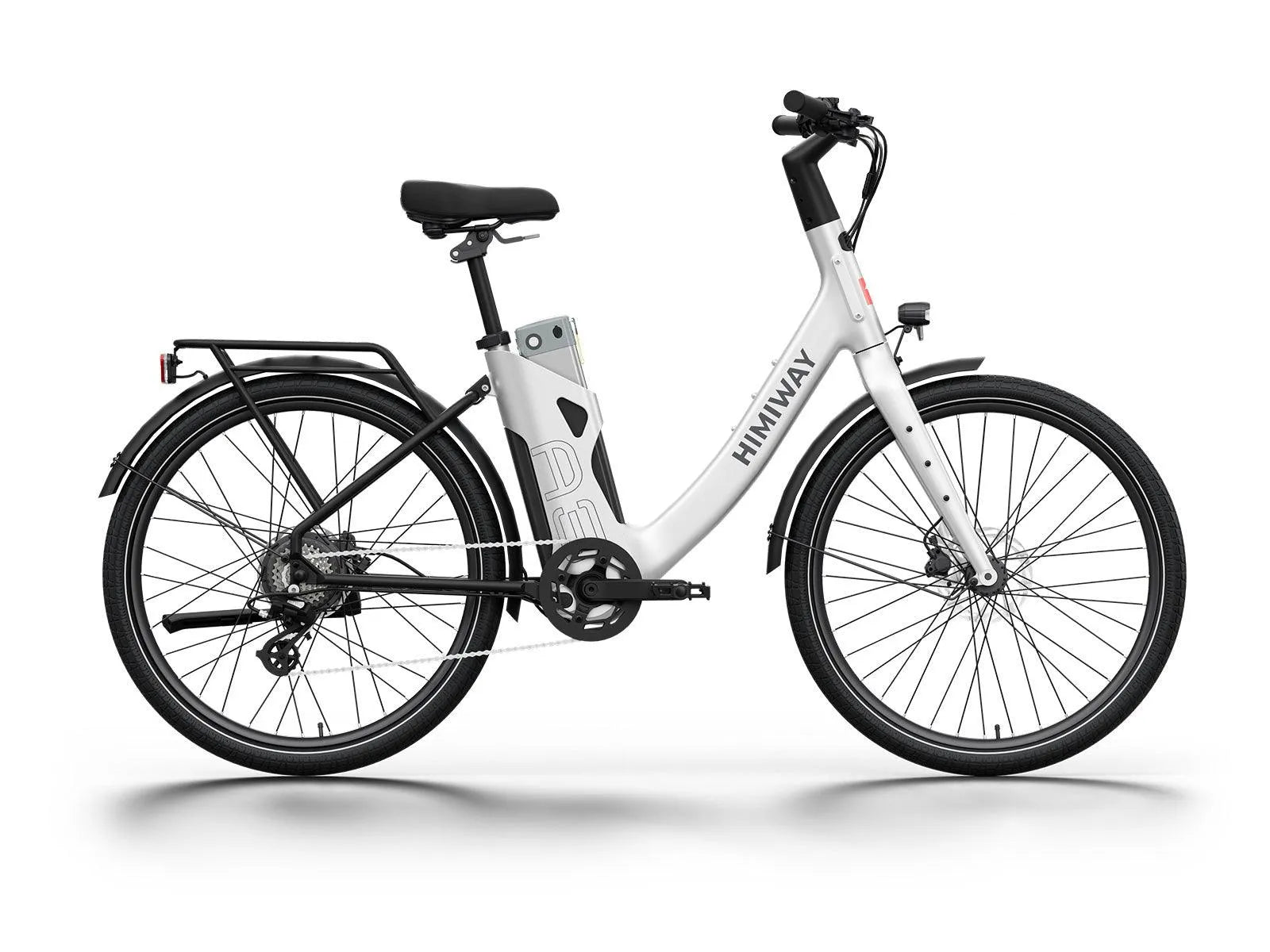

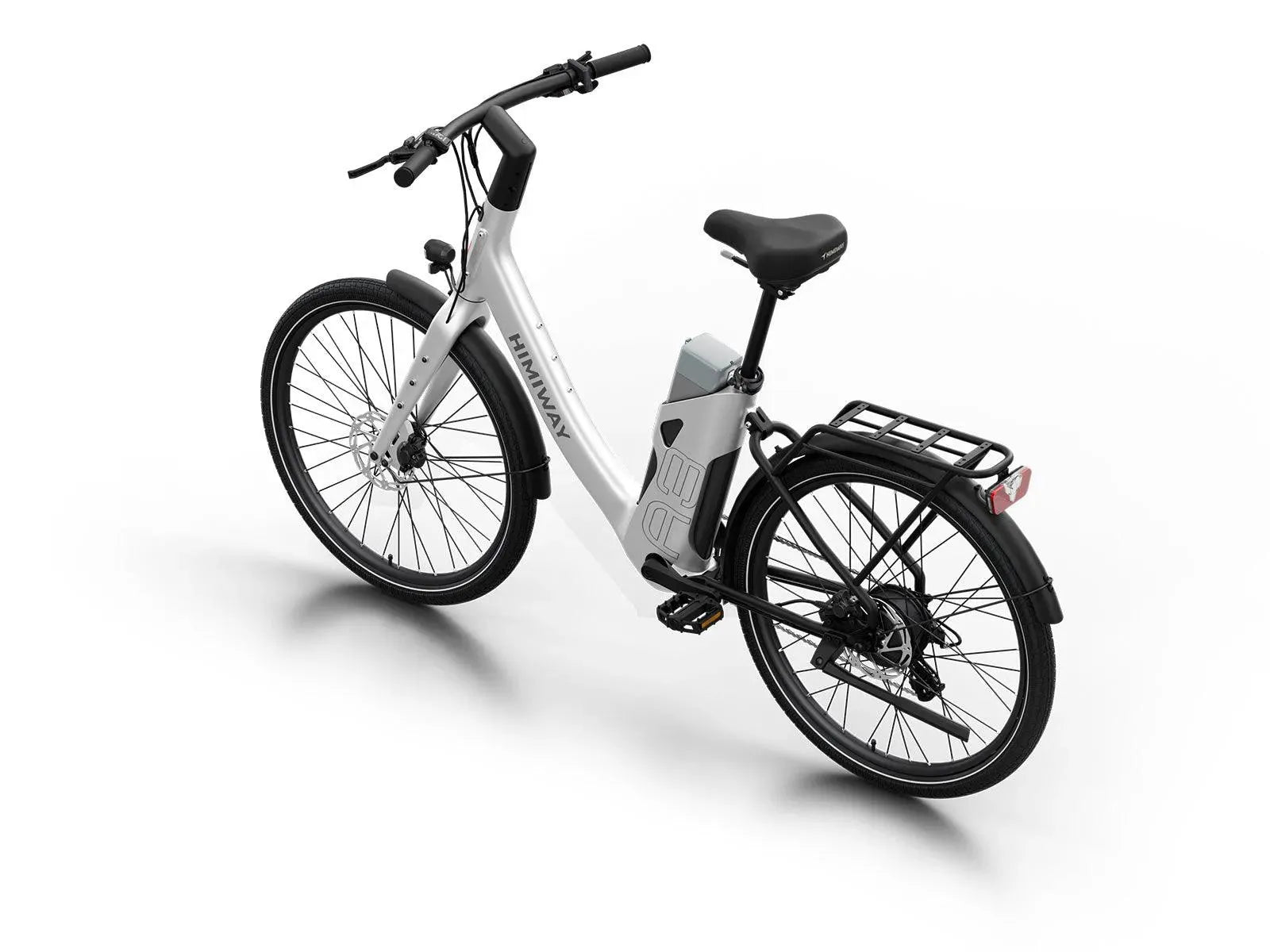

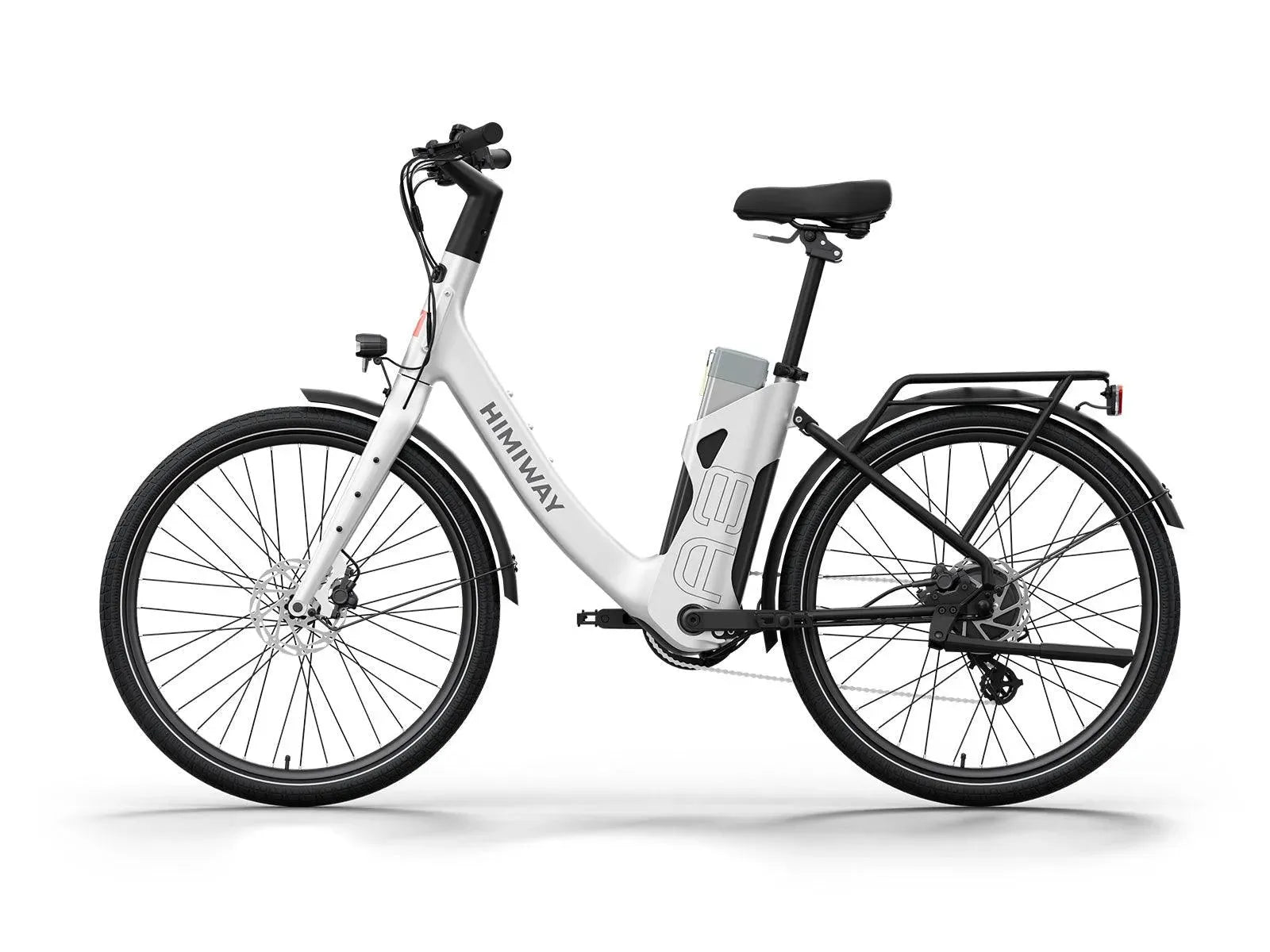

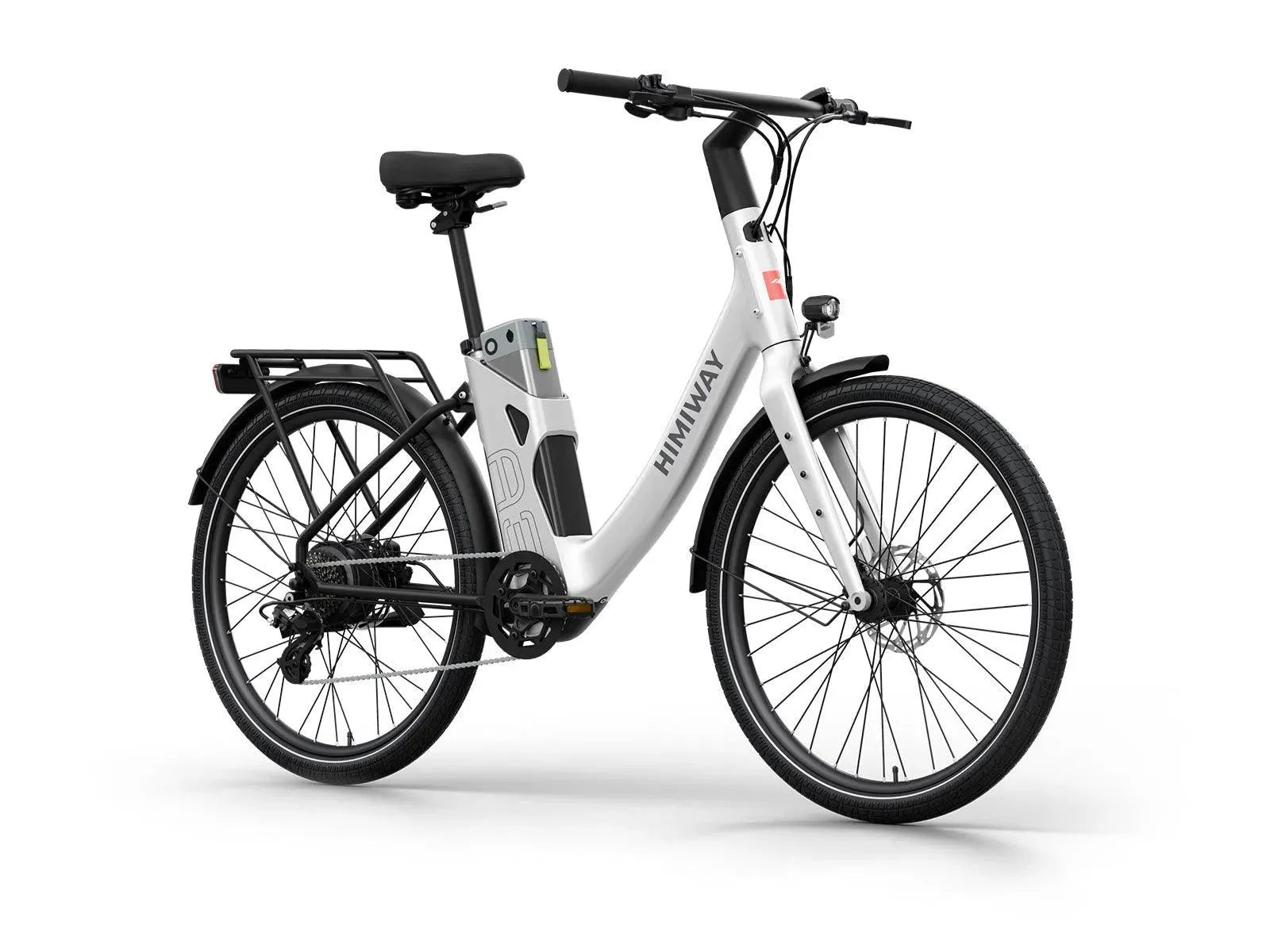

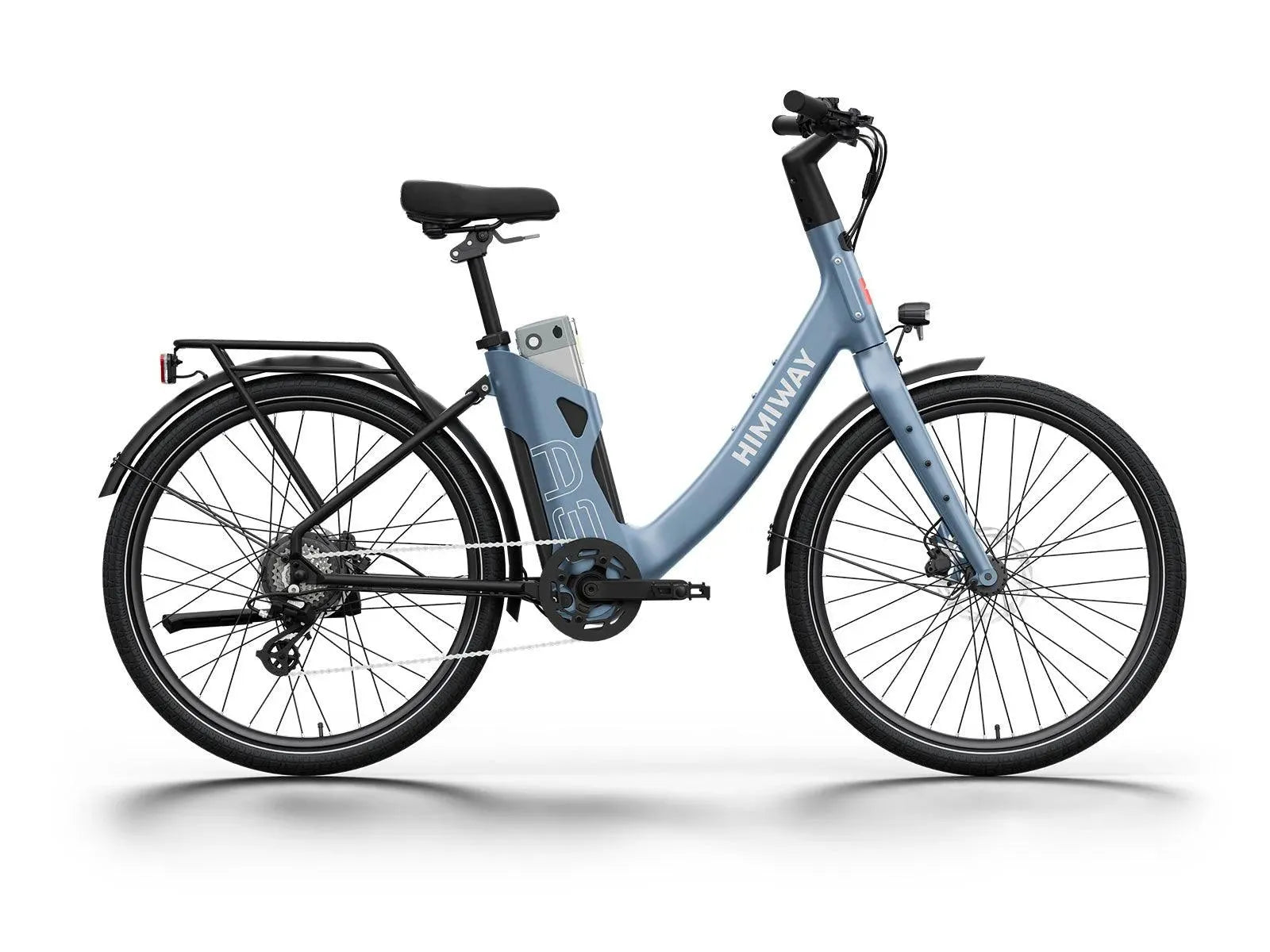

Himiway A3

Geometry

Recommended Height: 5'1"~6'

• A – total length

  70.6


• B - handlebar height

  45.3


• C – wheelbase

  43.8


• D – minimum seat height

  24


• E – maximum seat height

  31.8


• F – chain stay length

  18.3


• G – frame stack

  23.5


• H – effective top tube length

  21.1


• I – wheel diameter

  26.2


• J – head tube length

  8.5


• K – handlebar length

  26.7


• L – frame reach

  16.4


• M – head angle

  69°


• N – standover height

  24.6



Specification

• Frame

  Front: 6061 aluminum Rear:A356 Steel


• Headset

  Neco A16M 444430


• Fork

  6061 aluminum 100*12mm thru axle, rack mounts, fender mounts, post disc mount


• Front wheel

  Rim: 26""1.7536H13G A/V | Spoke: 13G257.5MM/259.5MM | Hub: R303F-12 12g36H 12100mm


• Rear wheel

  Rim: 26""1.7536H13G A/V | Spoke: 13G225.5MM/226.5MM | Hub: 48v 500w Himiway Hub Motor


• Tires

  Innova IA-2128 26*2.2 25-60PSI


• Battery

  48V15AH LG 21700 IP65 720Wh


• Motor

  500w Himiway brushless gear motor


• Display

  Himiway LED Display


• Throttle

  Thumb throttle


• Sensors

  Torque sensor丨speed sensor丨brake sensor


• Crankset

  Crank arm:J6061-T6 170mm | Chain ring: 38T narrow wide steel chainring BCD104


• Freewheel

  Shimano MF-TZ500-7 14-28T


• Chain

  KMC Z8.3 EPT 112L


• Groupset

  Shimano altus M310 7 speed


• Front brake

  Tektro HD-E3520 hydraulic brake


• Rear brake

  Tektro HD-E3520 hydraulic brake


• Rotors

  F:160mm R:160mm



Components

• Handlebar

  Himiway integrated handlebar-Stem 680mm width*90mm stem


• Seatpost

  Himiway flip seatpost 27.2*300


• Saddle

  TTZ032X


• Pedal

  Aluminum pedal


• Lights

  48V LED light


• Kickstand

  Adjustable aluminum kickstand



Others

• Range

  70 miles


• Controller

  48V/18A


• Charger

  US standard 2.0 A smart charger


• Rider height

  5'1"~6'


• Weight

  68.3 lb.


• Max payload capacity

  300 lb.
