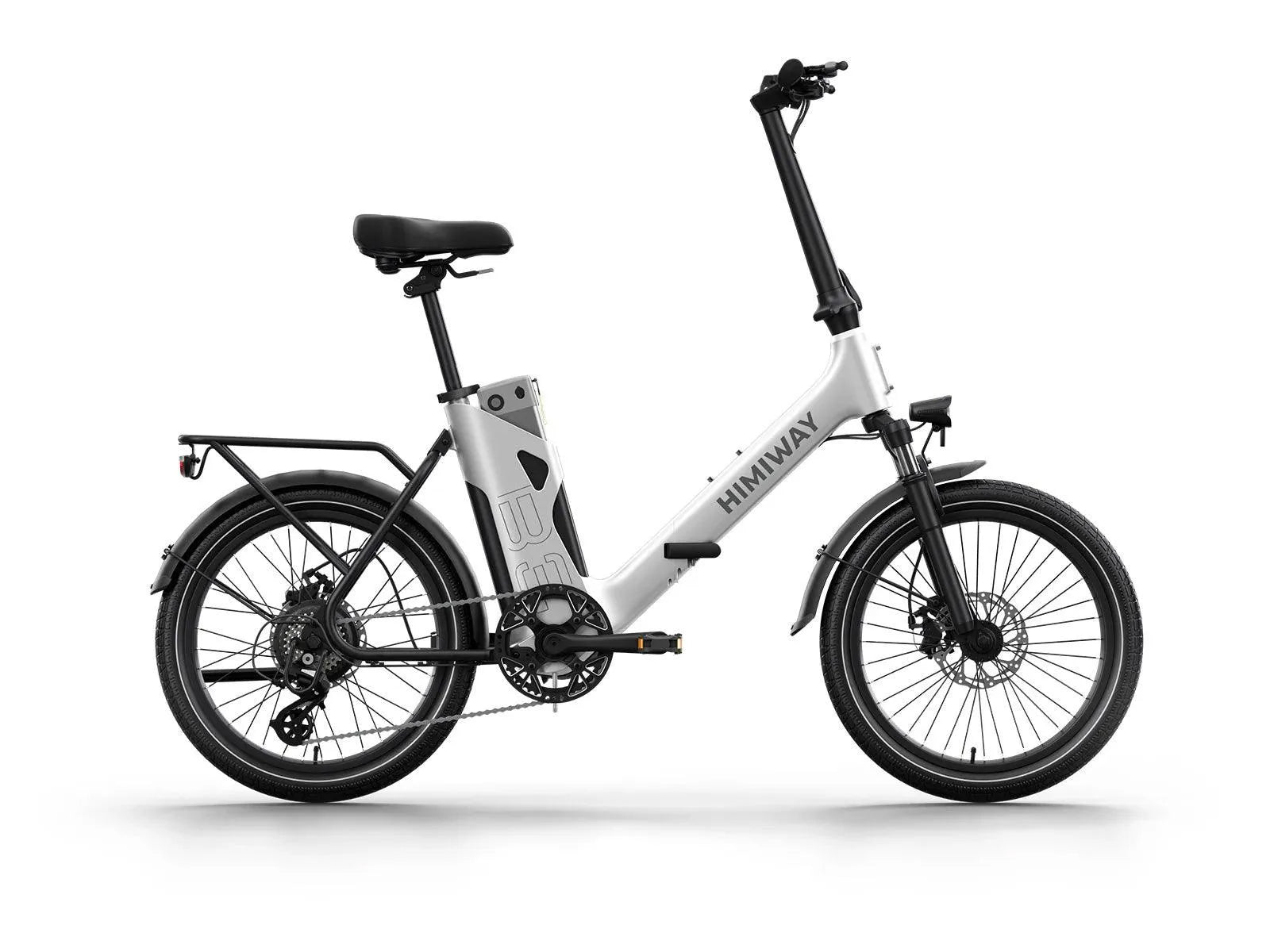

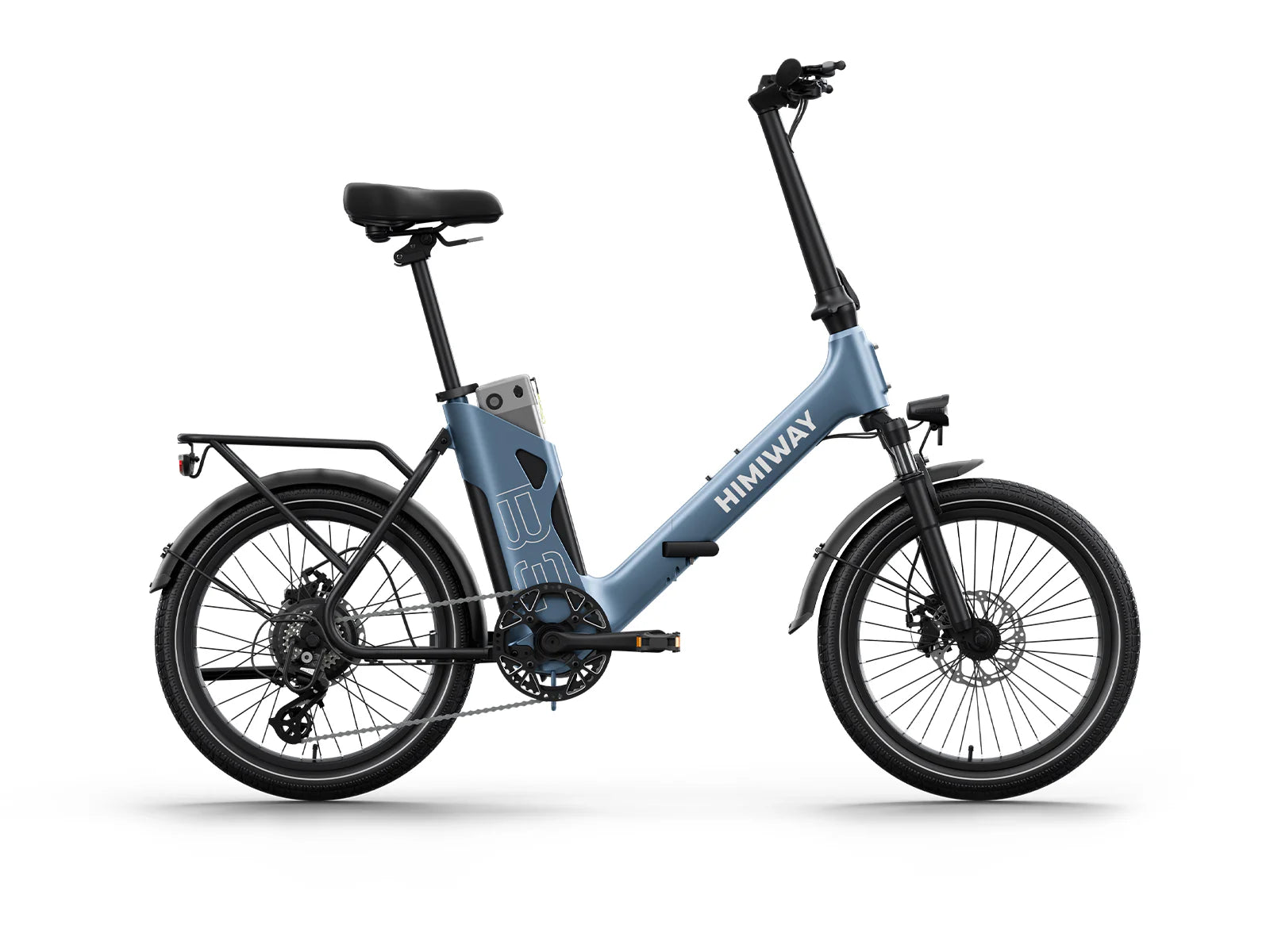

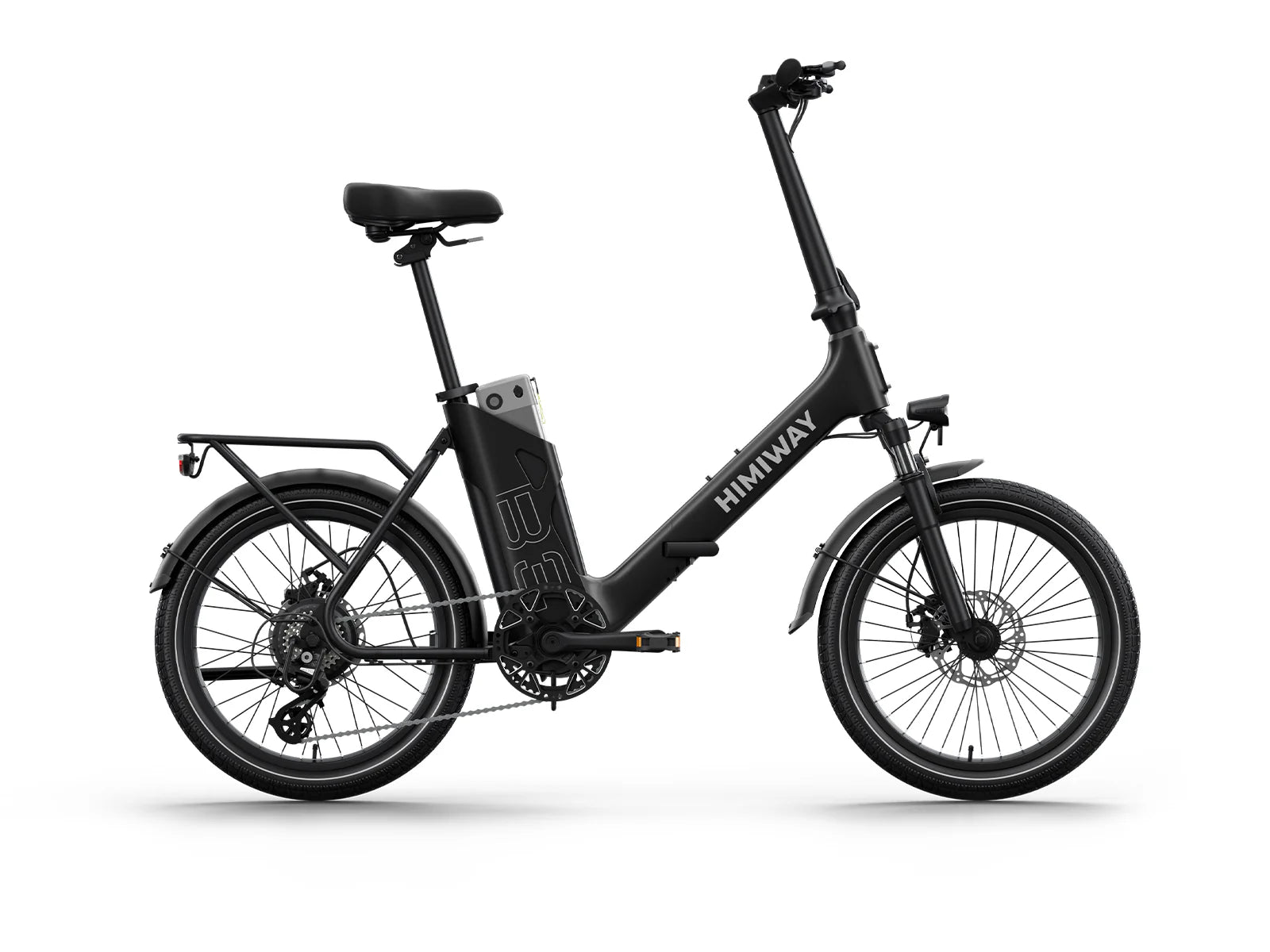

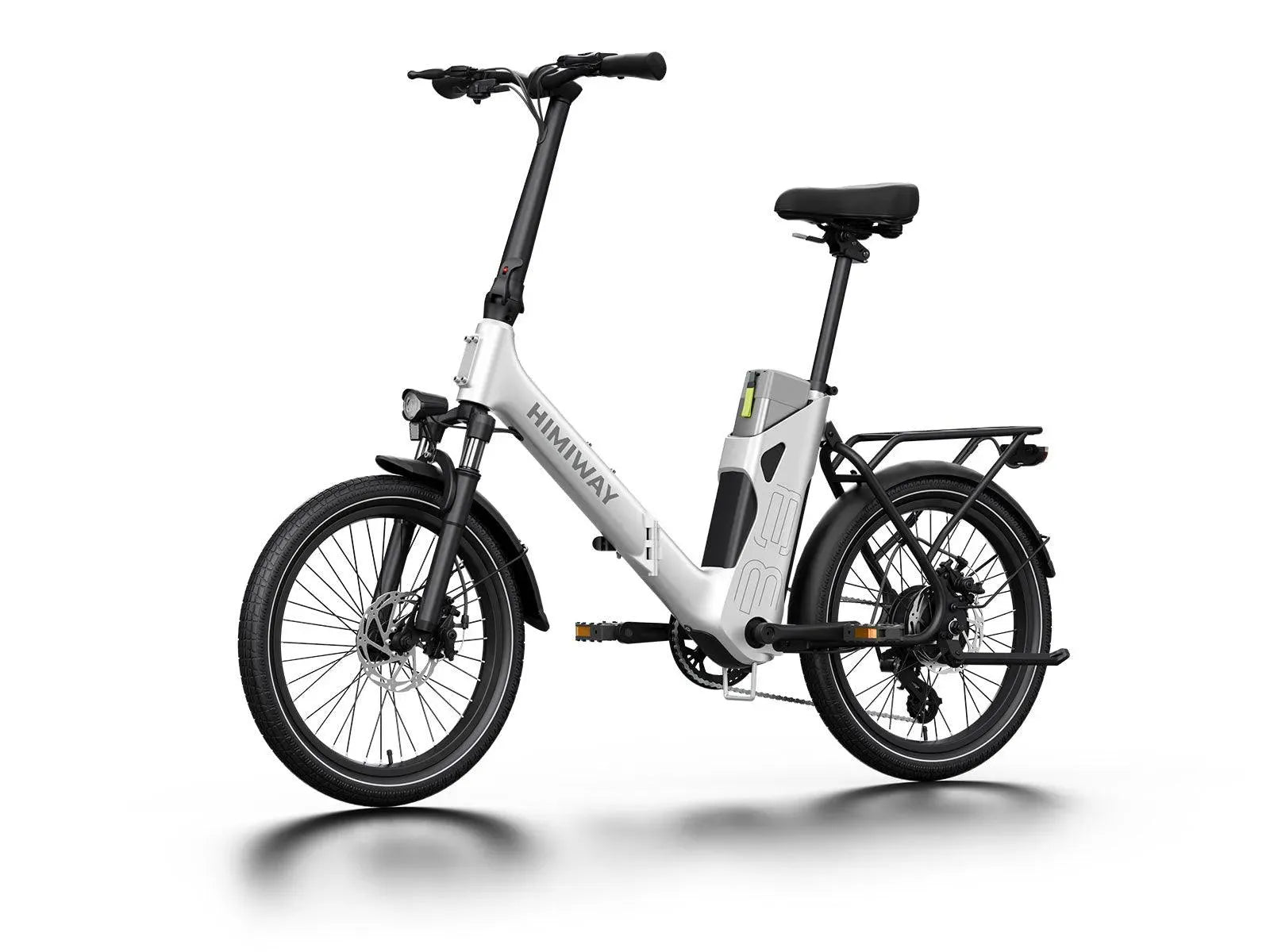

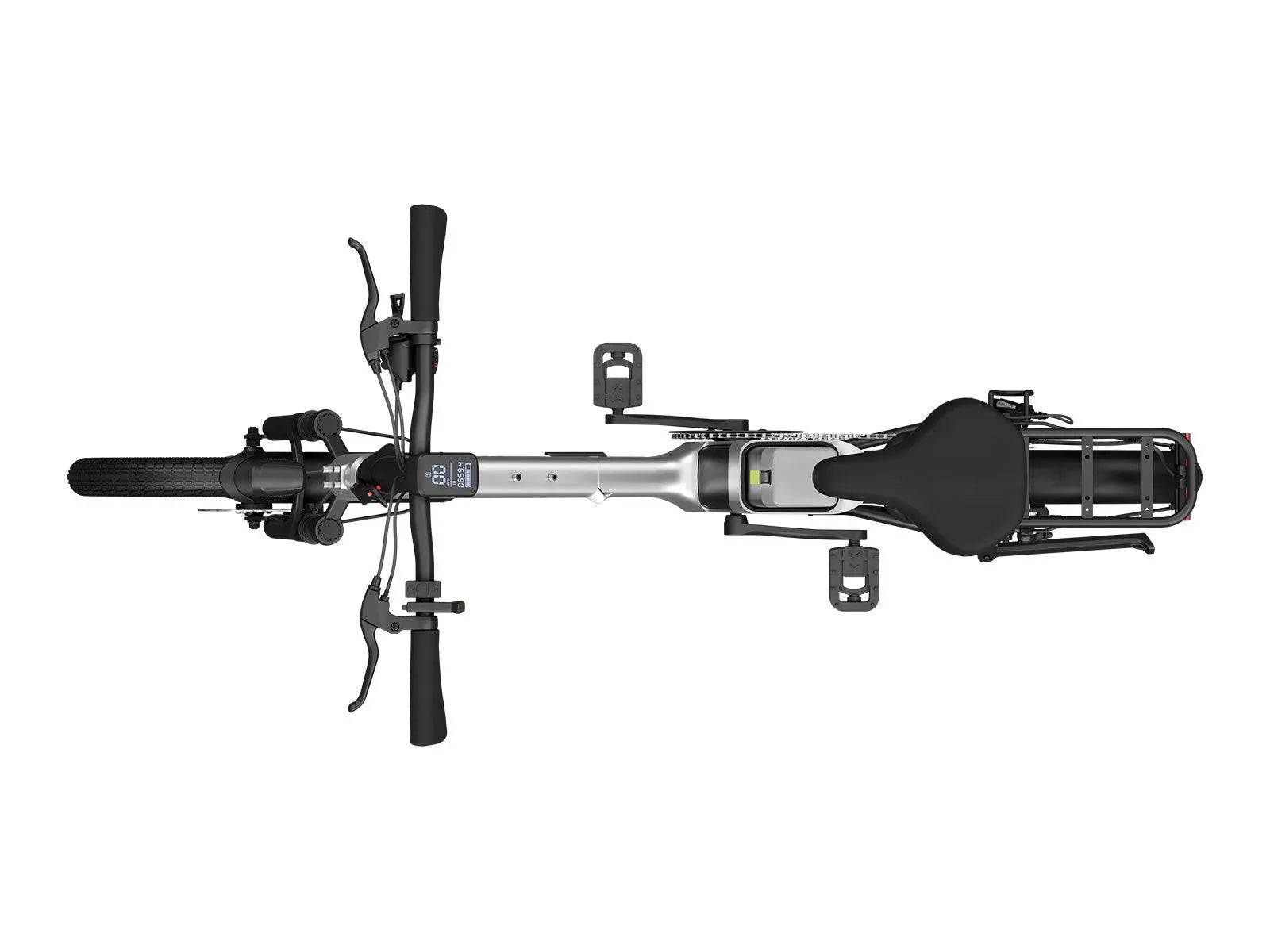

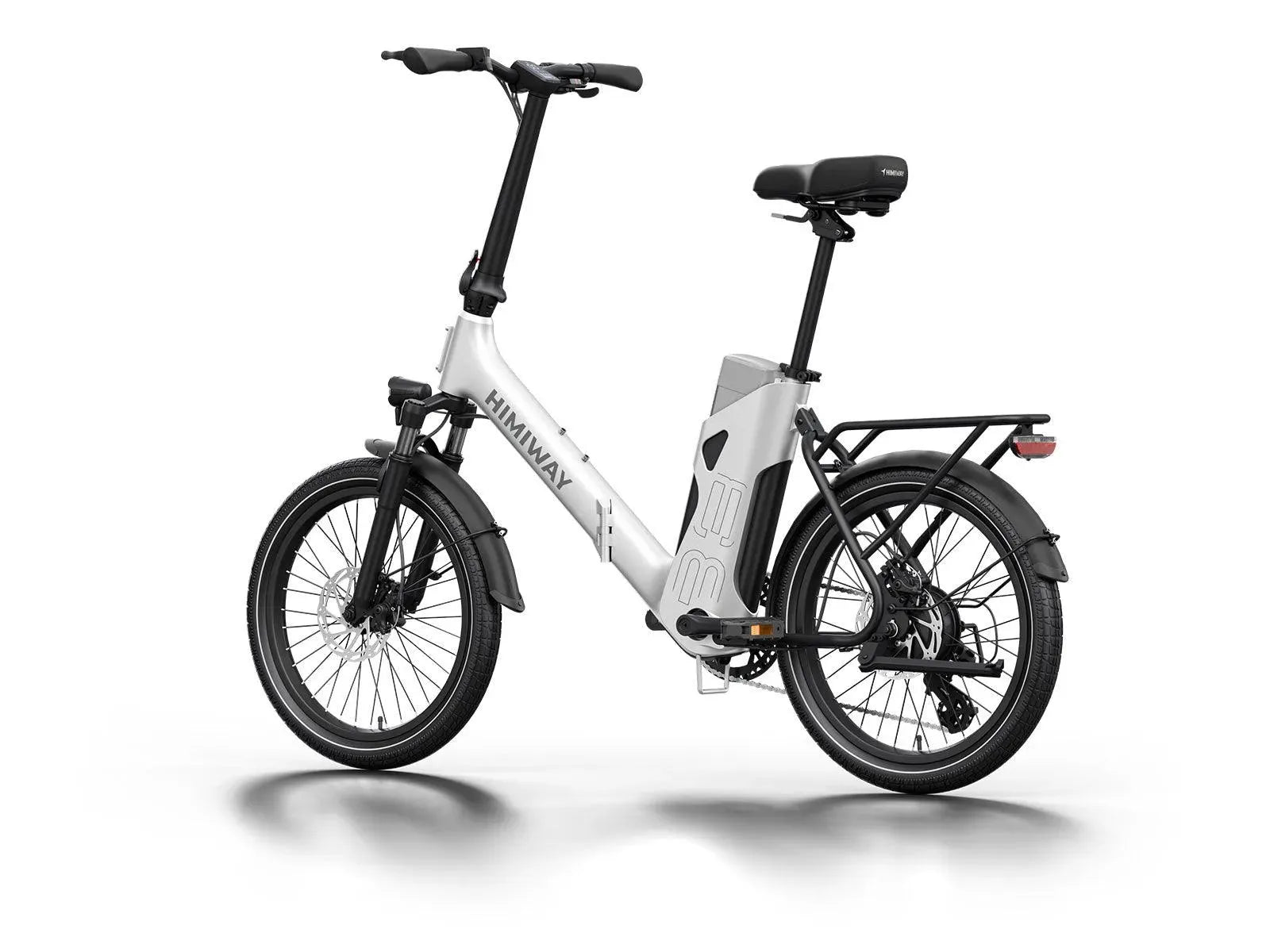

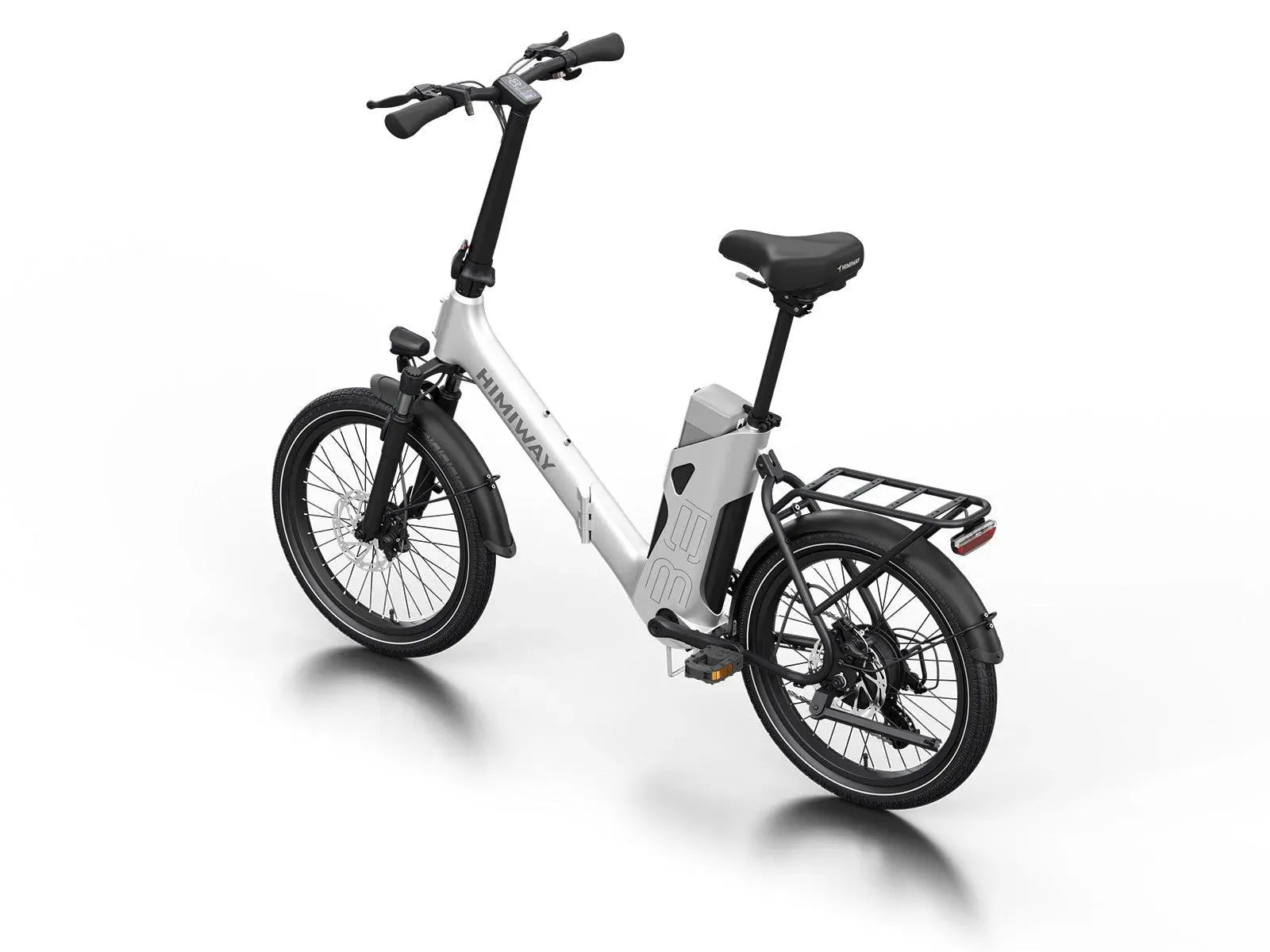

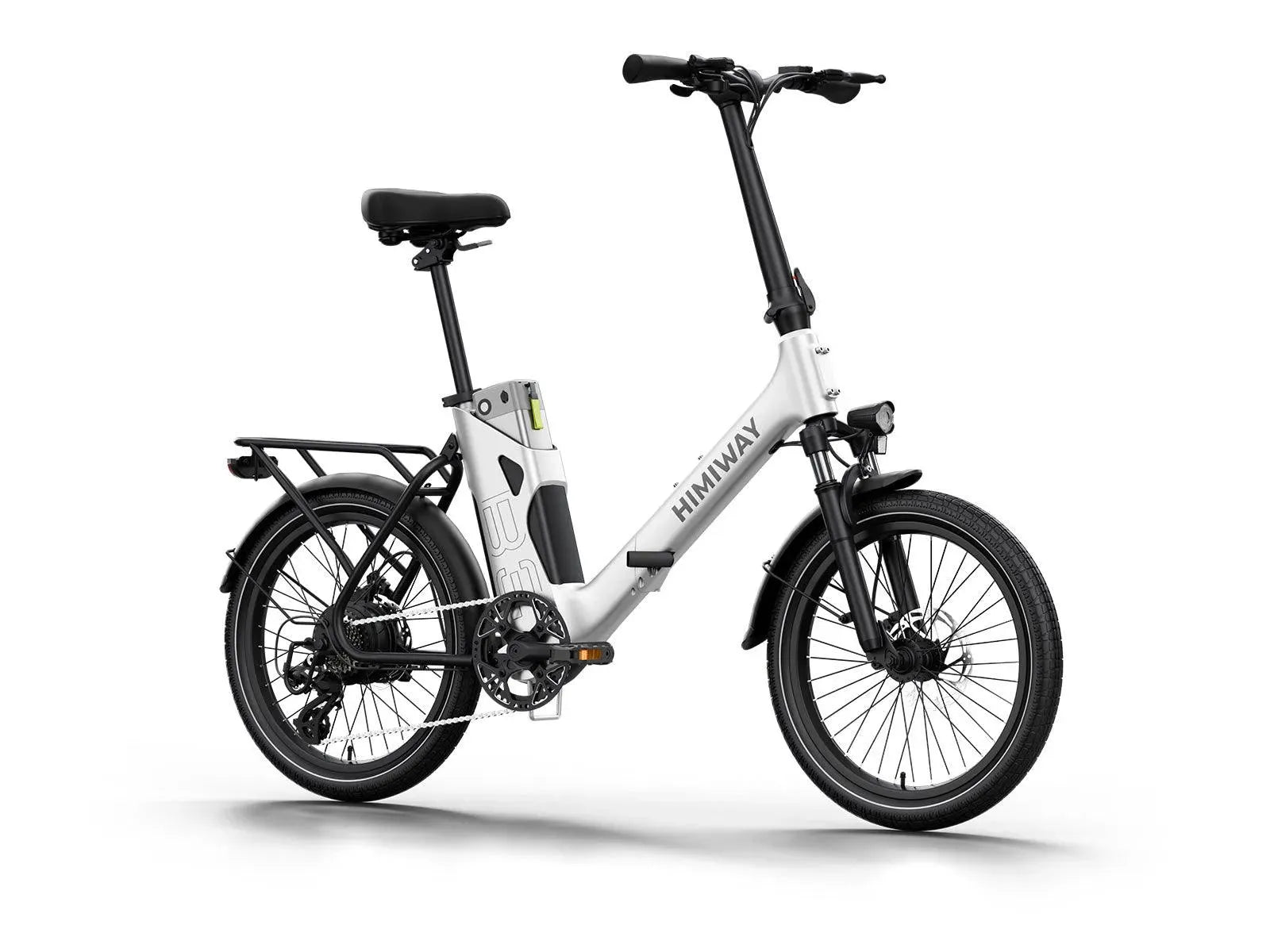

Himiway B3

Geometry

Recommended Height: 5'~6'

• A – total length

  63.8


• B - handlebar height

  45.3


• C – wheelbase

  42.5


• D – minimum seat height

  31.5


• E – maximum seat height

  39.5


• F – chain stay length

  15.4


• G – frame stack

  22.5


• H – effective top tube length

  26


• I – wheel diameter

  20.8


• J – head tube length

  5.5


• K – handlebar length

  23.6


• L – frame reach

  17.7


• M – head angle

  70°


• N – standover height

  18.8



Specification

• Frame

  Front: 6061 aluminum Rear:A356 Steel


• Headset

  Neco H510


• Fork

  Coil suspention fork, 40mm travel, is disc mount


• Front wheel

  Rim: MD-260 202.5""36H13G A/V | Spoke: 13G171MM/172MM | Hub: MS-37F 13G36H100mm


• Rear wheel

  Rim: MD-260 202.5""36H13G A/V | Spoke: 13G133MM/134MM | Hub: 48v 500w Himiway Hub Motor


• Tires

  Innova 20x2.40 lA-1283


• Battery

  48V15AH LG 21700 IP65 720Wh


• Motor

  500w Himiway brushless gear motor


• Display

  Himiway LCD Display


• Throttle

  Thumb throttle


• Sensors

  Torque sensor丨speed sensor丨brake sensor


• Crankset

  Crank arm:6061-T6 145mm | Chain ring: 44T narrow wide steel chainring BCD104


• Cassette

  Shimano MF-TZ500-7 14-28T


• Chain

  KMC Z8.3 EPT 100L


• Groupset

  Shimano altus M310 7 speed


• Front brake

  Nutt JAK-8 mechanical disc brake


• Rear brake

  Nutt JAK-8 mechanical disc brake


• Rotors

  F:160mm R:160mm



Components

• Stem

  Folding stem, riser length: 360mm


• Handlebar

  JY-A153 W:600


• Seatpost

  Himiway flip seatpost 27.2*300


• Saddle

  Himiway TTZ032X


• Pedal

  Aluminum pedal


• Lights

  48V LED light


• Kickstand

  Aluminum kickstand



Others

• Range

  70 miles


• Controller

  48V/18A


• Charger

  US standard 2.0 A smart charger


• Rider height

  5'~6'


• Weight

  60.6 lb.


• Max payload capacity

  300 lb.
