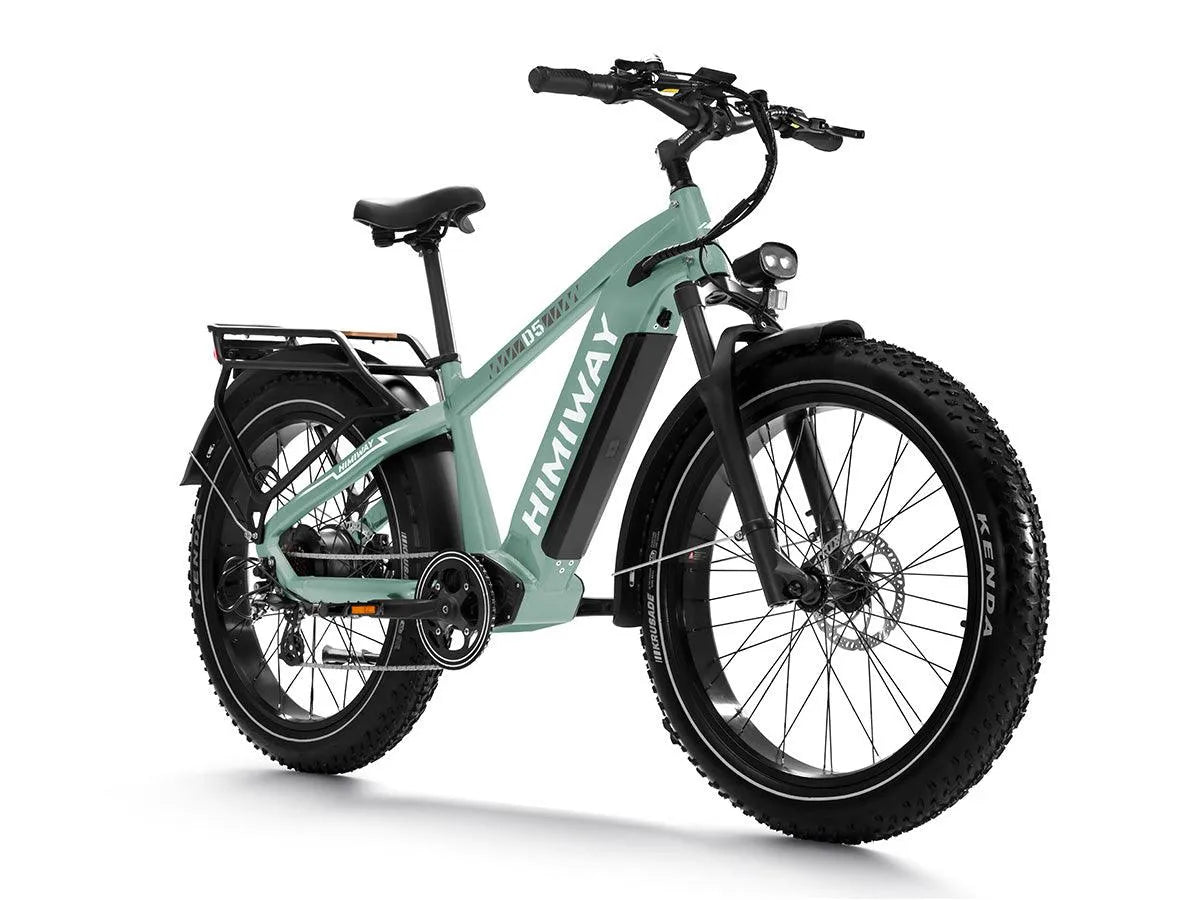

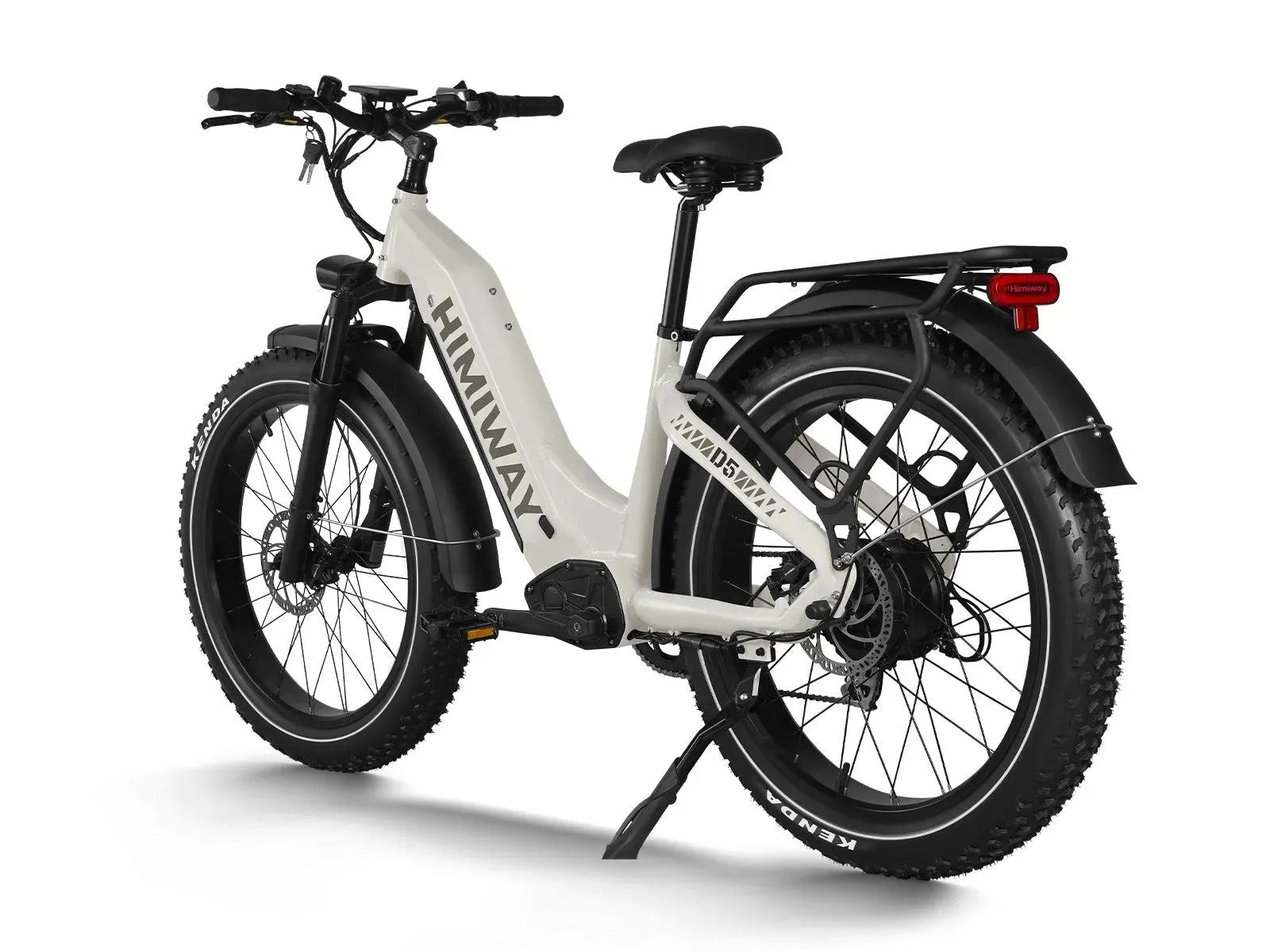

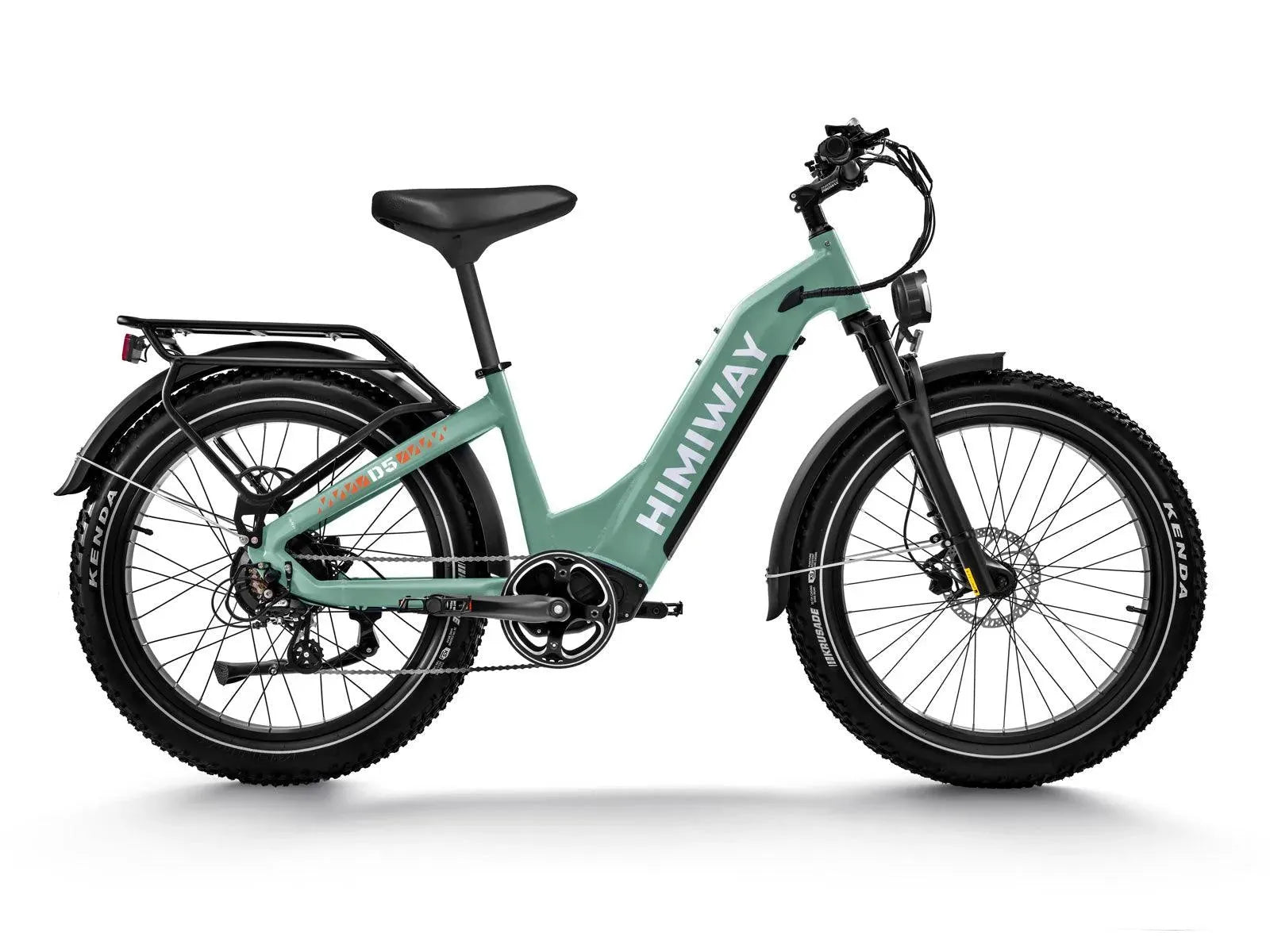

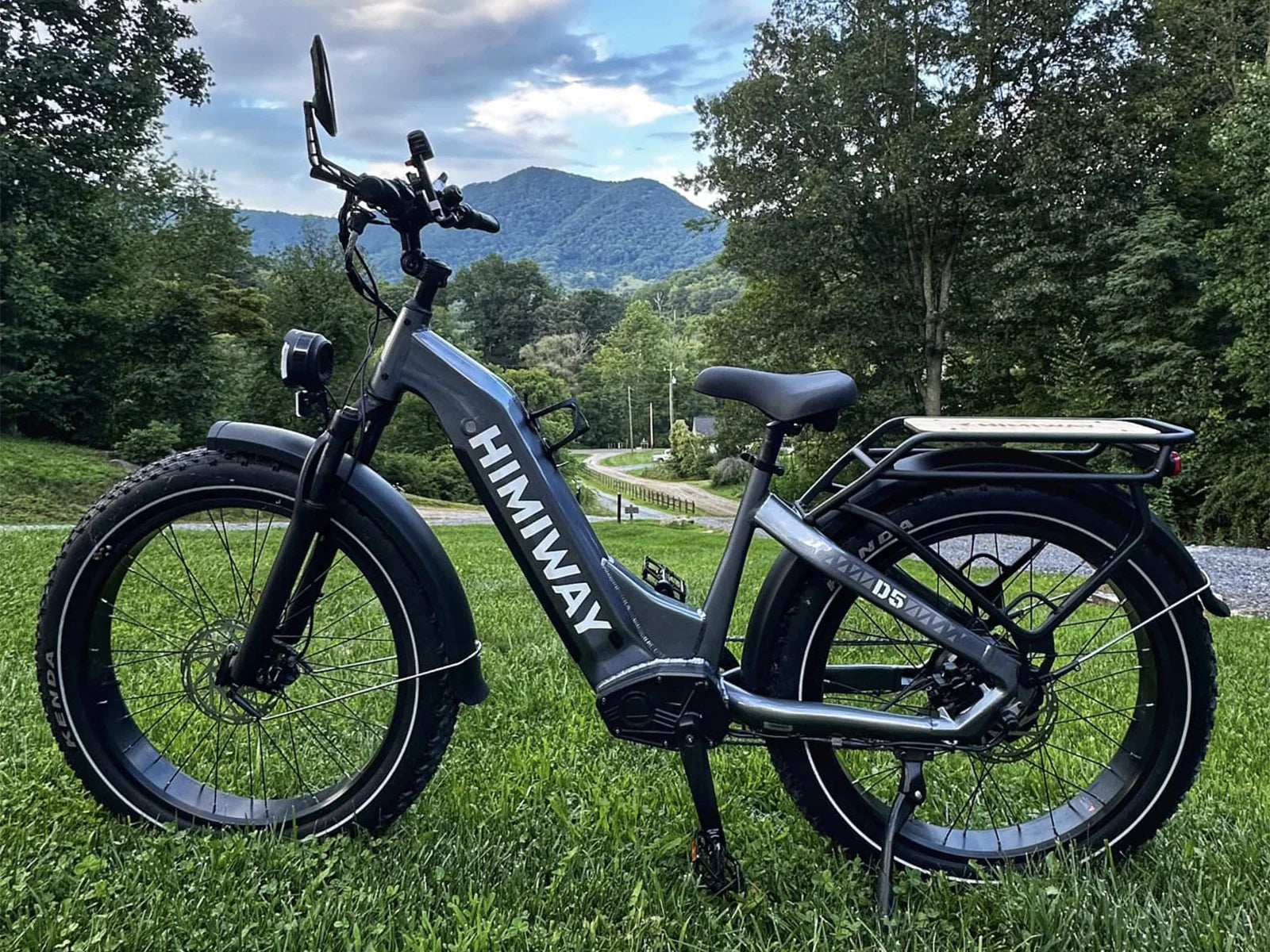

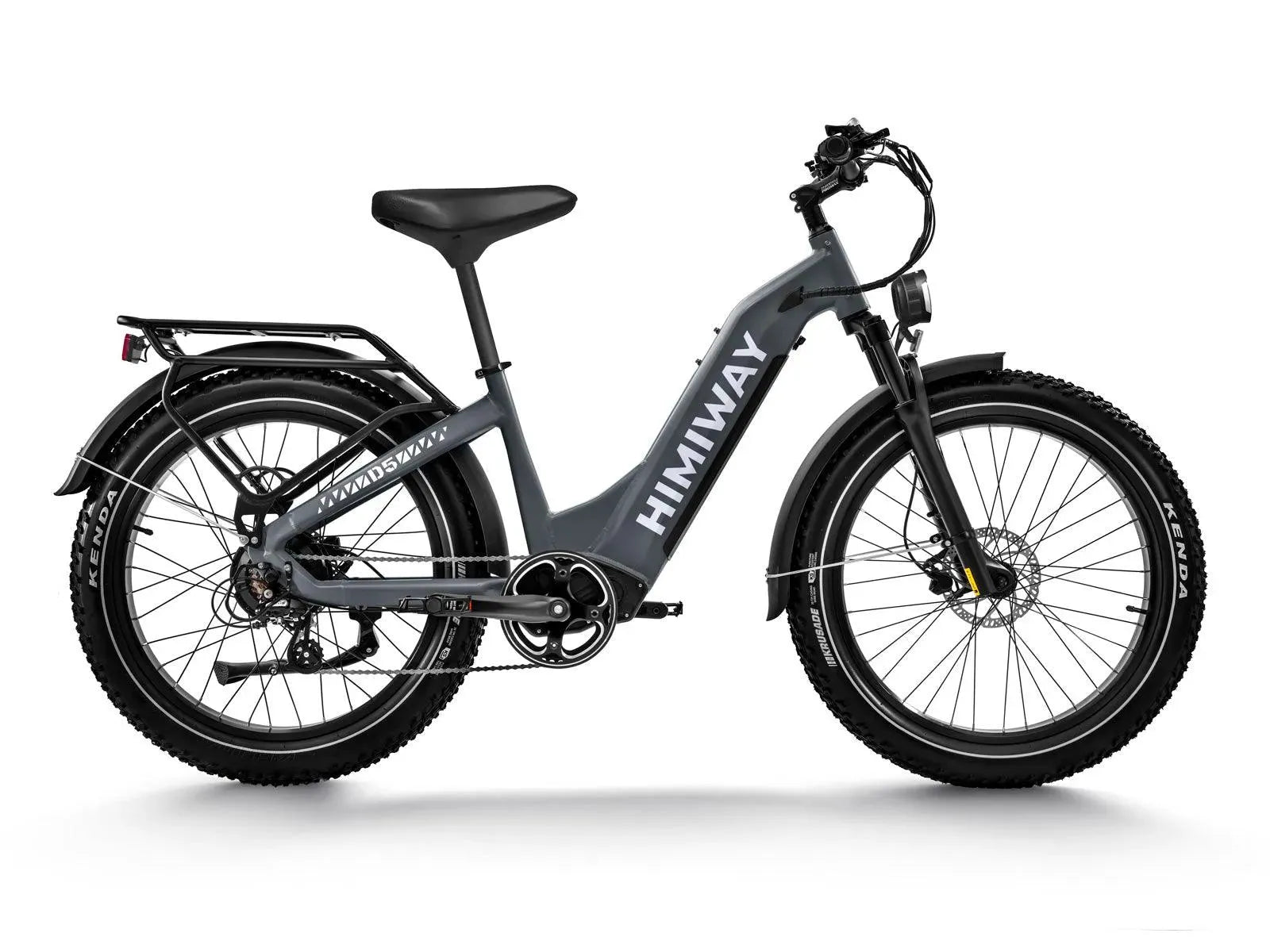

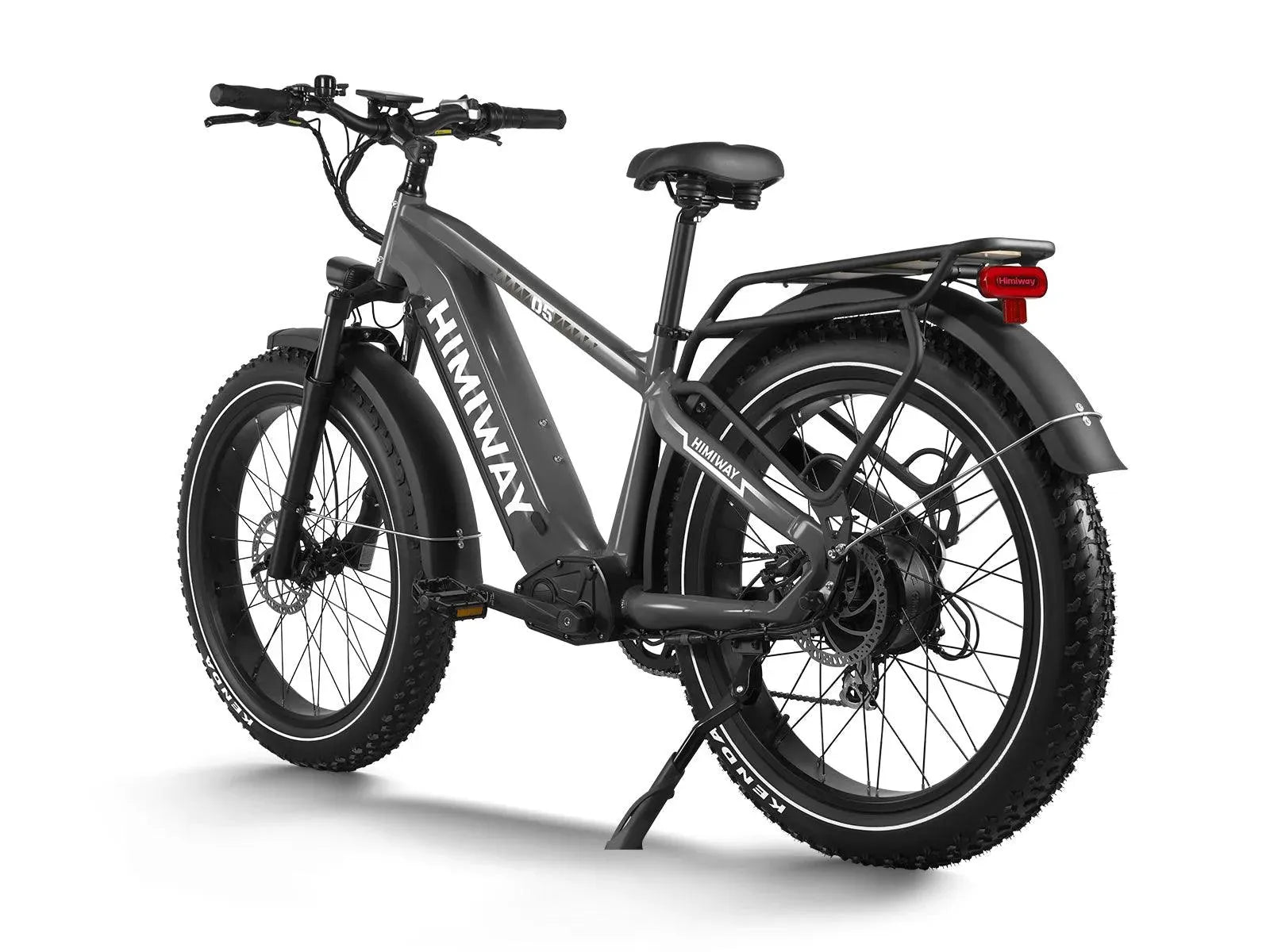

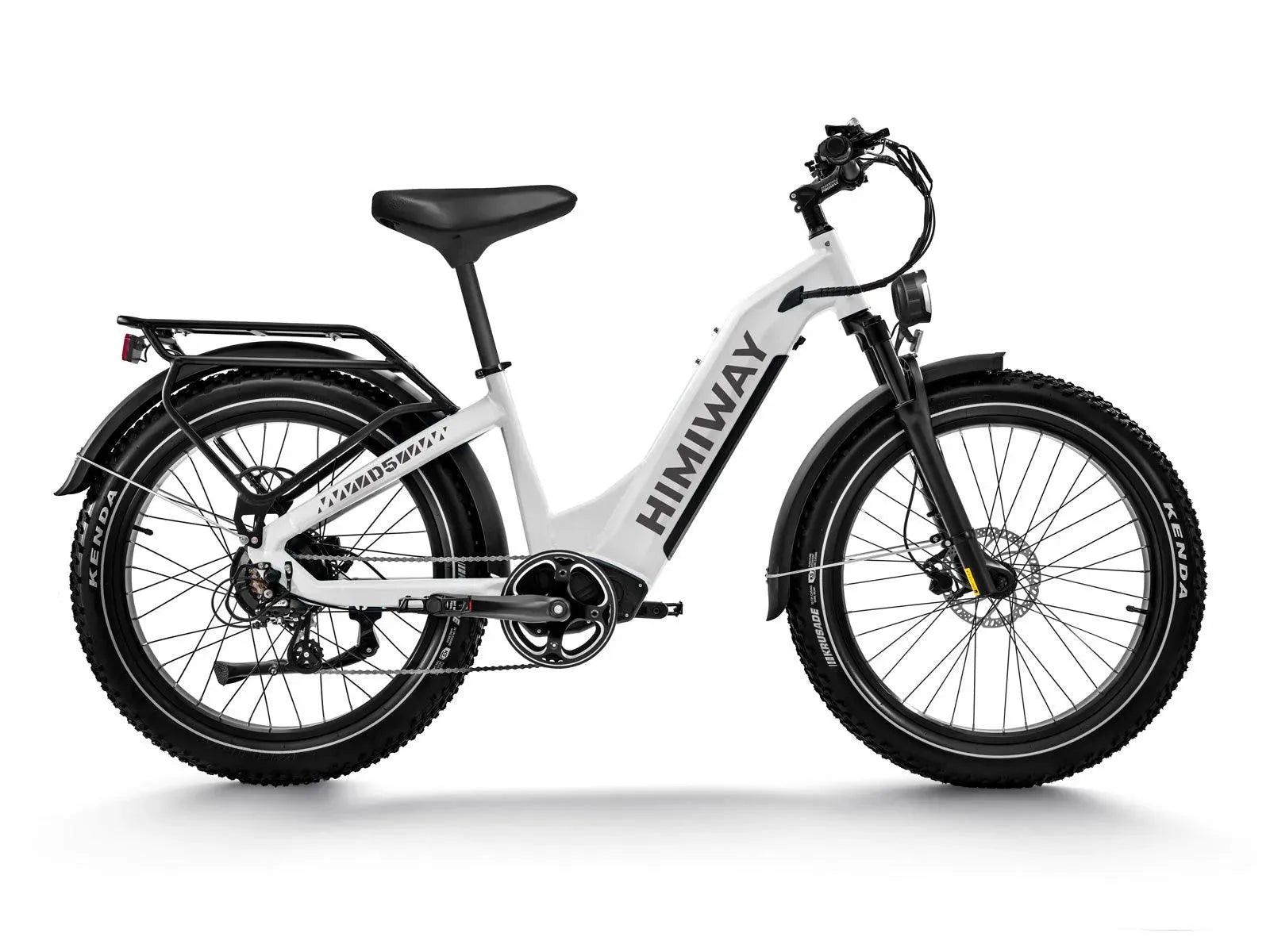

Himiway D5 Zebra
(64)
Description
Dominate Every Trail with the D5 Electric Fat Tire Mountain Bike
750W Fat ebike Engineered for Mountain Warriors
🏆 "Best Value Mountain ebike 2025" - OutdoorGear Lab
🚚 Free Shipping | 🔧 2-Year Warranty | 🔄 15-Day Returns
Why Mountain Riders Choose D5
⛰️ Conquer Technical Terrain
4.0" Kenda fat tires + 95mm suspension eat rocks for breakfast
🔋 80-Mile Range
48V Samsung battery lasts 3X longer than standard mountain ebikes
Built for Fat ebike Adventures
Winter Warrior Ready
Our 26×4.0" electric fat bike dominates:
- ❄️ Snow-packed forest trails
- 🏖️ Deep sand beaches
- 🌧️ Muddy mountain passes
"D5 handles snow better than my 4X4 truck!" - Mike, Colorado Rider
"Age has been slowing me down but with this HIMI-ebike I'm back in the game" - Over 40 Rider
Mountain ebike Technology
Pro-Grade Components
- Shimano Altus 7-Speed: Perfect gear range for 15%+ climbs
- Tektro Hydraulic Brakes: 180mm rotors stop on dime
- Torque Sensor: Instant 85Nm power when you need it
Your Mountain Awaits
Ready to Ride?
🚴♂️ 10000+ Riders Configured
5'3" to 6'5" Rider Friendly
Technical Specifications
Specification
- Frame: 6061 Aluminum frame
- Headset: Neco H156EM 28.6*44-56*30
- Fork: TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
- Front wheel: Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W - Rear wheel: Rim: MD-147 26*4.0""*36H*12G A/V
Spoke: 12G 214L stainless (304M)
Hub: 48v 750w Himiway hub motor - Tires: Kenda 26*4.0
- Battery: Samsung/LG 48V 20Ah
- Motor: 750W brushless gear motor
- Display: LCD display with USB charger
- Throttle: Thumb throttle
- Sensors: Torque sensor丨speed sensor丨brake sensor
- Crankset: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
- Freewheel: Shimano MF-TZ500-7 14-28T
- Chain: Anti-Rust KMC Z8.3 EPT 120L
- Groupset: Shimano altus M310 7 speed
- Front brake: Tektro HD-E3520 hydraulic brake
- Rear brake: Tektro HD-E3520 hydraulic brake
- Rotors: Tektro TR180-52 F:180mm R:180mm
Components
- Stem: Zoom TDS-C269-8FOV 31.8*90mm
- Handlebar: Promax HB-3188 22.2*31.8*700mm
- Seatpost: Himiway Seatpost
- Saddle: Himiway Saddle
- Pedal: Aluminum pedal
- Lights: 48V LED light
- Kickstand: Heavy-duty aluminum kickstand
Others
- Range: 60-80 miles
- Controller: 48V/22A
- Charger: U.S. standard 3.0 A fast charger
- Rider height: 5′3″ ~ 6′5″
- Weight: 79 lb. (with battery)
- Max. payload capacity: 400 lb.
Recommended Height
Recommended Height: 5'3"~6'5"
Seat Height:34~42 inch
Specification
- Frame: 6061 Aluminum frame
- Headset: Neco H156EM 28.6*44-56*30
- Fork: TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
- Front wheel: Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W - Rear wheel: Rim: MD-147 26*4.0""*36H*12G A/V
Spoke: 12G 214L stainless (304M)
Hub: 48v 750w Himiway hub motor - Tires: Kenda 26*4.0
- Battery: Samsung/LG 48V 20Ah
- Motor: 750W brushless gear motor
- Display: LCD display with USB charger
- Throttle: Thumb throttle
- Sensors: Torque sensor丨speed sensor丨brake sensor
- Crankset: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
- Freewheel: Shimano MF-TZ500-7 14-28T
- Chain: Anti-Rust KMC Z8.3 EPT 120L
- Groupset: Shimano altus M310 7 speed
- Front brake: Tektro HD-E3520 hydraulic brake
- Rear brake: Tektro HD-E3520 hydraulic brake
- Rotors: Tektro TR180-52 F:180mm R:180mm
Components
- Stem: Zoom TDS-C269-8FOV 31.8*90mm
- Handlebar: Promax HB-3188 22.2*31.8*700mm
- Seatpost: Himiway Seatpost
- Saddle: Himiway Saddle
- Pedal: Aluminum pedal
- Lights: 48V LED light
- Kickstand: Heavy-duty aluminum kickstand
Others
- Range: 60-80 miles
- Controller: 48V/22A
- Charger: U.S. standard 3.0 A fast charger
- Rider height: 5′3″ ~ 6′5″
- Weight: 79 lb. (with battery)
- Max. payload capacity: 400 lb.
Recommended Height
Recommended Height: 5'3"~6'5"
Seat Height:34~42 inch
Specification
- Frame: 6061 Aluminum frame
- Headset: Neco H156EM 28.6*44-56*30
- Fork: TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
- Front wheel: Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W - Rear wheel: Rim: MD-147 26*4.0""*36H*12G A/V
Spoke: 12G 214L stainless (304M)
Hub: 48v 750w Himiway hub motor - Tires: Kenda 26*4.0
- Battery: Samsung/LG 48V 20Ah
- Motor: 750W brushless gear motor
- Display: LCD display with USB charger
- Throttle: Thumb throttle
- Sensors: Torque sensor丨speed sensor丨brake sensor
- Crankset: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
- Freewheel: Shimano MF-TZ500-7 14-28T
- Chain: Anti-Rust KMC Z8.3 EPT 120L
- Groupset: Shimano altus M310 7 speed
- Front brake: Tektro HD-E3520 hydraulic brake
- Rear brake: Tektro HD-E3520 hydraulic brake
- Rotors: Tektro TR180-52 F:180mm R:180mm
Components
- Stem: Zoom TDS-C269-8FOV 31.8*90mm
- Handlebar: Promax HB-3188 22.2*31.8*700mm
- Seatpost: Himiway Seatpost
- Saddle: Himiway Saddle
- Pedal: Aluminum pedal
- Lights: 48V LED light
- Kickstand: Heavy-duty aluminum kickstand
Others
- Range: 60-80 miles
- Controller: 48V/22A
- Charger: U.S. standard 3.0 A fast charger
- Rider height: 5′3″ ~ 6′5″
- Weight: 79 lb. (with battery)
- Max. payload capacity: 400 lb.
Recommended Height
Recommended Height: 5'3"~6'5"
Seat Height:34~42 inch
Specification
- Frame: 6061 Aluminum frame
- Headset: Neco H156EM 28.6*44-56*30
- Fork: TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
- Front wheel: Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W - Rear wheel: Rim: MD-147 26*4.0""*36H*12G A/V
Spoke: 12G 214L stainless (304M)
Hub: 48v 750w Himiway hub motor - Tires: Kenda 26*4.0
- Battery: Samsung/LG 48V 20Ah
- Motor: 750W brushless gear motor
- Display: LCD display with USB charger
- Throttle: Thumb throttle
- Sensors: Torque sensor丨speed sensor丨brake sensor
- Crankset: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
- Freewheel: Shimano MF-TZ500-7 14-28T
- Chain: Anti-Rust KMC Z8.3 EPT 120L
- Groupset: Shimano altus M310 7 speed
- Front brake: Tektro HD-E3520 hydraulic brake
- Rear brake: Tektro HD-E3520 hydraulic brake
- Rotors: Tektro TR180-52 F:180mm R:180mm
Components
- Stem: Zoom TDS-C269-8FOV 31.8*90mm
- Handlebar: Promax HB-3188 22.2*31.8*700mm
- Seatpost: Himiway Seatpost
- Saddle: Himiway Saddle
- Pedal: Aluminum pedal
- Lights: 48V LED light
- Kickstand: Heavy-duty aluminum kickstand
Others
- Range: 60-80 miles
- Controller: 48V/22A
- Charger: U.S. standard 3.0 A fast charger
- Rider height: 5′3″ ~ 6′5″
- Weight: 79 lb. (with battery)
- Max. payload capacity: 400 lb.
Recommended Height
Recommended Height: 5'3"~6'5"
Seat Height:34~42 inch
Specification
- Frame: 6061 Aluminum frame
- Headset: Neco H156EM 28.6*44-56*30
- Fork: TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
- Front wheel: Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W - Rear wheel: Rim: MD-147 26*4.0""*36H*12G A/V
Spoke: 12G 214L stainless (304M)
Hub: 48v 750w Himiway hub motor - Tires: Kenda 26*4.0
- Battery: Samsung/LG 48V 20Ah
- Motor: 750W brushless gear motor
- Display: LCD display with USB charger
- Throttle: Thumb throttle
- Sensors: Torque sensor丨speed sensor丨brake sensor
- Crankset: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
- Freewheel: Shimano MF-TZ500-7 14-28T
- Chain: Anti-Rust KMC Z8.3 EPT 120L
- Groupset: Shimano altus M310 7 speed
- Front brake: Tektro HD-E3520 hydraulic brake
- Rear brake: Tektro HD-E3520 hydraulic brake
- Rotors: Tektro TR180-52 F:180mm R:180mm
Components
- Stem: Zoom TDS-C269-8FOV 31.8*90mm
- Handlebar: Promax HB-3188 22.2*31.8*700mm
- Seatpost: Himiway Seatpost
- Saddle: Himiway Saddle
- Pedal: Aluminum pedal
- Lights: 48V LED light
- Kickstand: Heavy-duty aluminum kickstand
Others
- Range: 60-80 miles
- Controller: 48V/22A
- Charger: U.S. standard 3.0 A fast charger
- Rider height: 5′3″ ~ 6′5″
- Weight: 79 lb. (with battery)
- Max. payload capacity: 400 lb.
Recommended Height
Recommended Height: 5'3"~6'5"
Seat Height:34~42 inch
Specification
- Frame: 6061 Aluminum frame
- Headset: Neco H156EM 28.6*44-56*30
- Fork: TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
- Front wheel: Rim: MD-147 26*4.0"*36H*12G A/V
Spoke: 12G 255/256L stainless (304M)
Hub: MB015-92 M9*12G*135*145W - Rear wheel: Rim: MD-147 26*4.0""*36H*12G A/V
Spoke: 12G 214L stainless (304M)
Hub: 48v 750w Himiway hub motor - Tires: Kenda 26*4.0
- Battery: Samsung/LG 48V 20Ah
- Motor: 750W brushless gear motor
- Display: LCD display with USB charger
- Throttle: Thumb throttle
- Sensors: Torque sensor丨speed sensor丨brake sensor
- Crankset: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
- Freewheel: Shimano MF-TZ500-7 14-28T
- Chain: Anti-Rust KMC Z8.3 EPT 120L
- Groupset: Shimano altus M310 7 speed
- Front brake: Tektro HD-E3520 hydraulic brake
- Rear brake: Tektro HD-E3520 hydraulic brake
- Rotors: Tektro TR180-52 F:180mm R:180mm
Components
- Stem: Zoom TDS-C269-8FOV 31.8*90mm
- Handlebar: Promax HB-3188 22.2*31.8*700mm
- Seatpost: Himiway Seatpost
- Saddle: Himiway Saddle
- Pedal: Aluminum pedal
- Lights: 48V LED light
- Kickstand: Heavy-duty aluminum kickstand
Others
- Range: 60-80 miles
- Controller: 48V/22A
- Charger: U.S. standard 3.0 A fast charger
- Rider height: 5′3″ ~ 6′5″
- Weight: 79 lb. (with battery)
- Max. payload capacity: 400 lb.
Recommended Height
Recommended Height: 5'3"~6'5"
Seat Height:34~42 inch
Key Features
Buy Himiway D5 Zebra electric bike online at the best price. Get powerful performance, long battery range, fat tires, and premium comfort for every ride.
- Download your product manual here
What's Included in the Delivery?
Himiway D5 Zebra
Sale price$1,499.00 USD
Choose options
Himiway D5 Zebra
Sale price$1,499.00 USD
GEOMETRY
Recommended Height: 5'3" ~ 6'5"
- A – total length: 78.7
- B – handlebar height: 47
- C – handlebar length: 28
- D – wheelbase: 49.2
- E – wheel diameter: 28.7
- F – minimum seat height: 20.9
- G – maximum seat height: 31.4
- H – chain stay length: 19
- I – frame stack: 24.6
- J – frame reach: 17.8
- K – effective top tube length: 24.4
- L – head tube length: 5.5
- M – head angle: 65°
- N – standover height: ST 22.4/ SO 31.1
