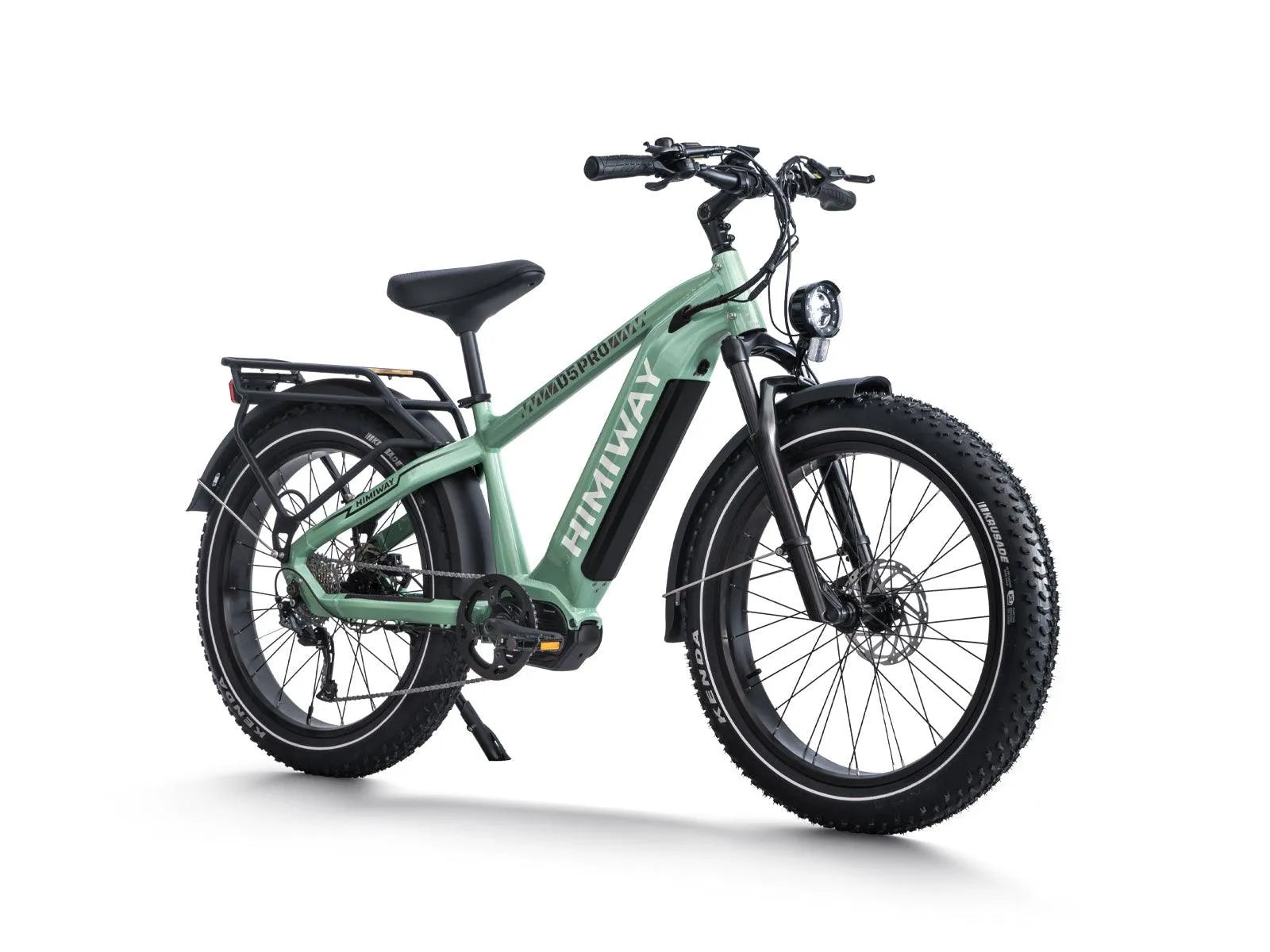

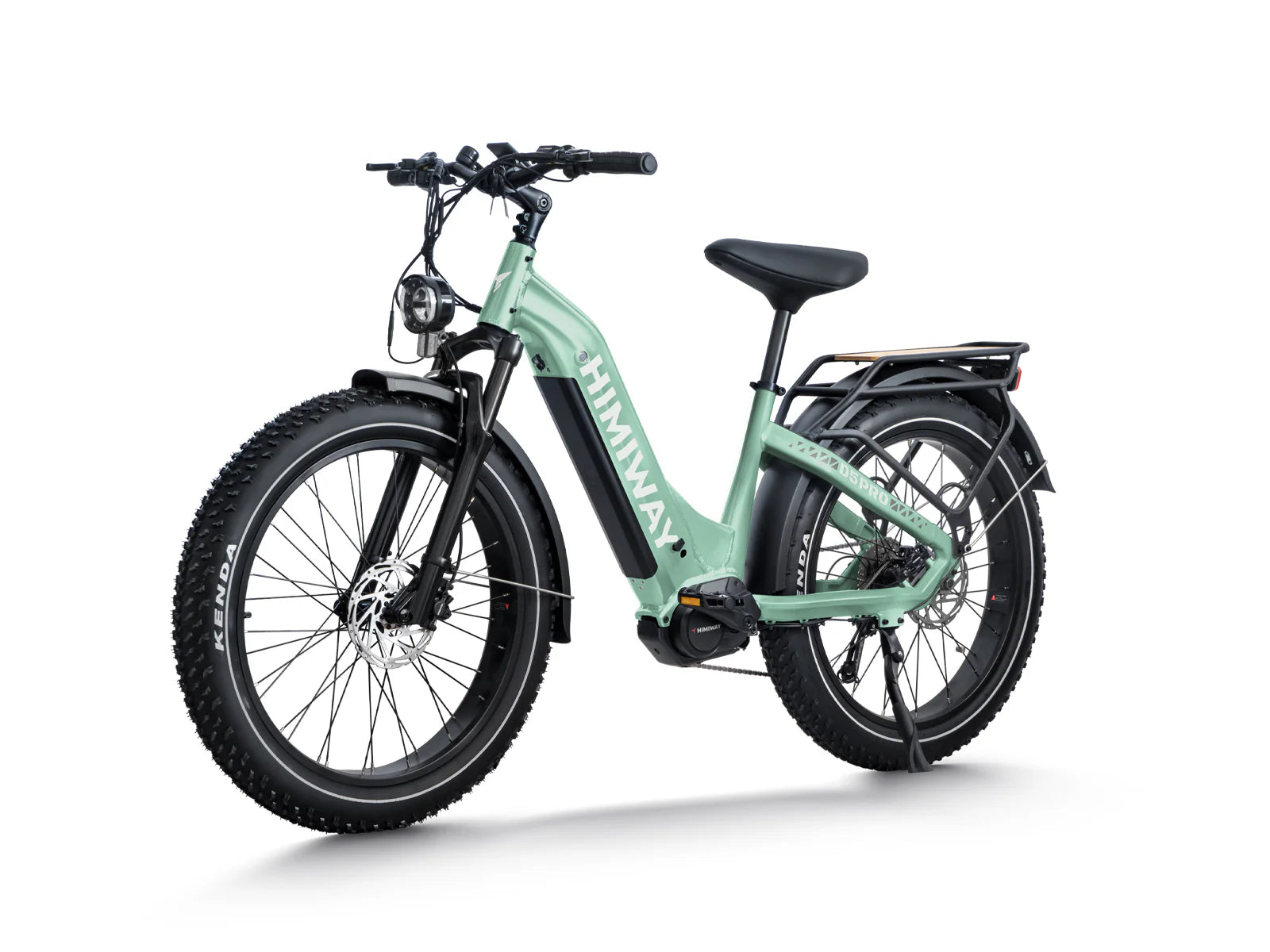

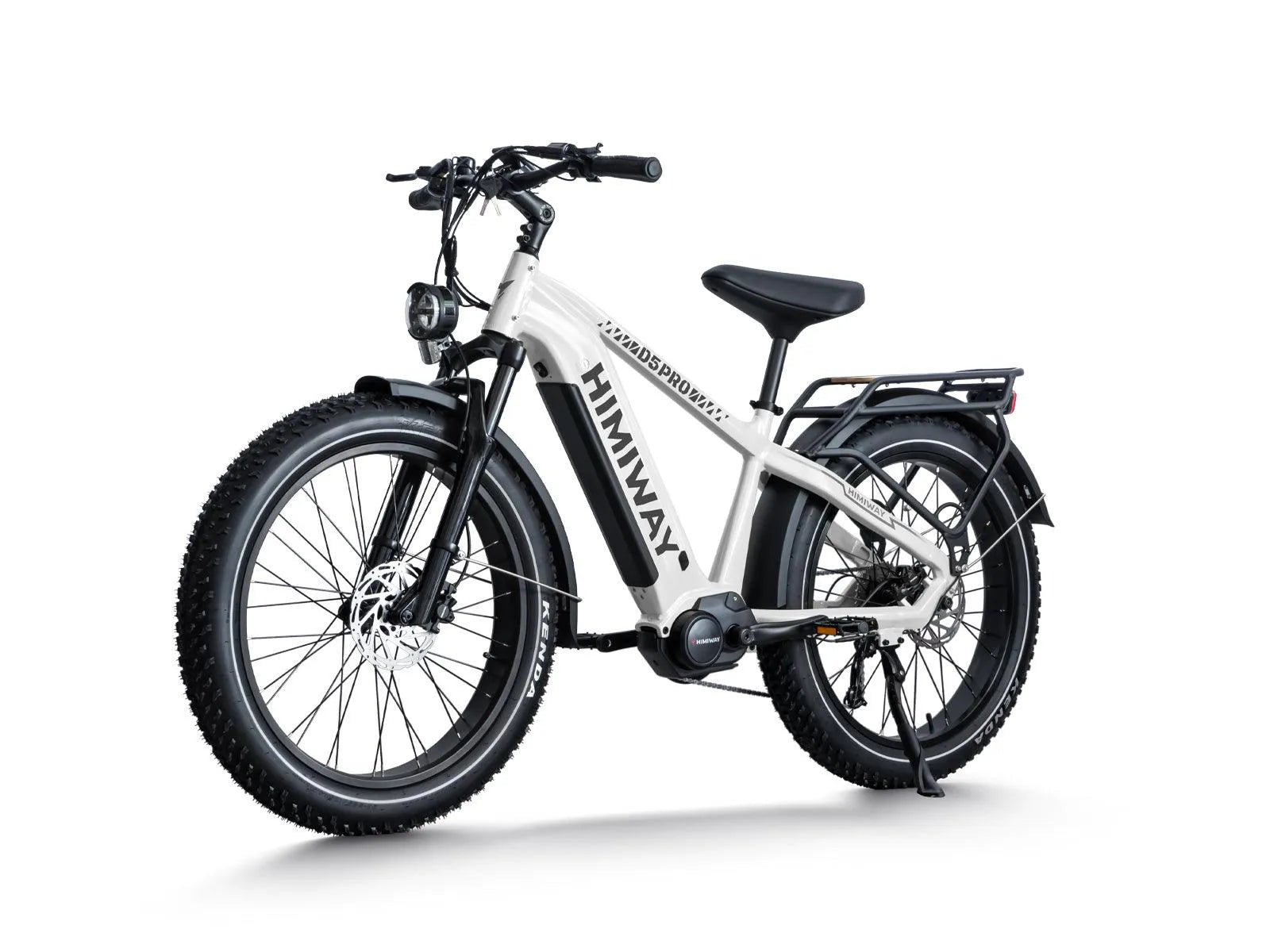

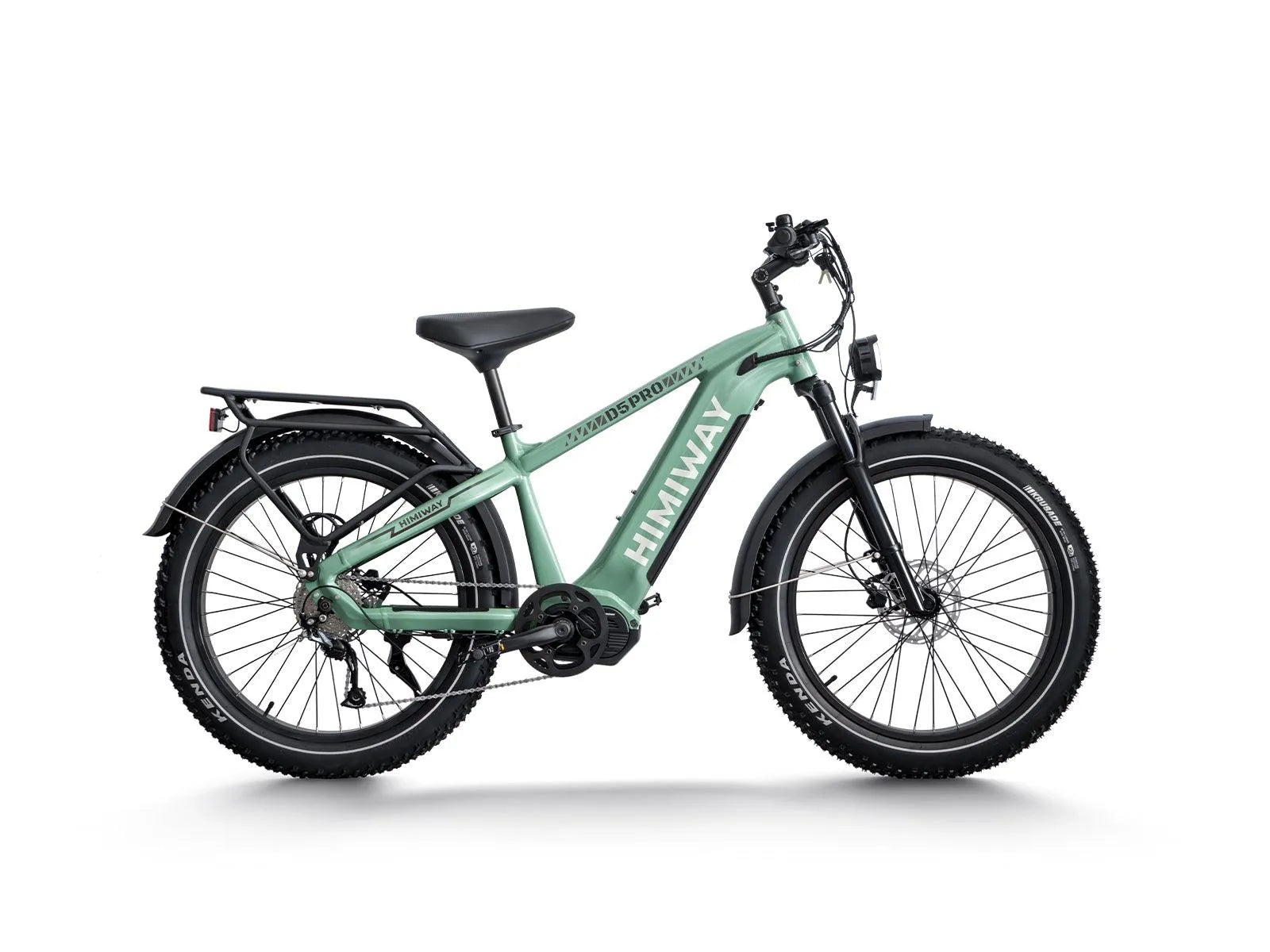

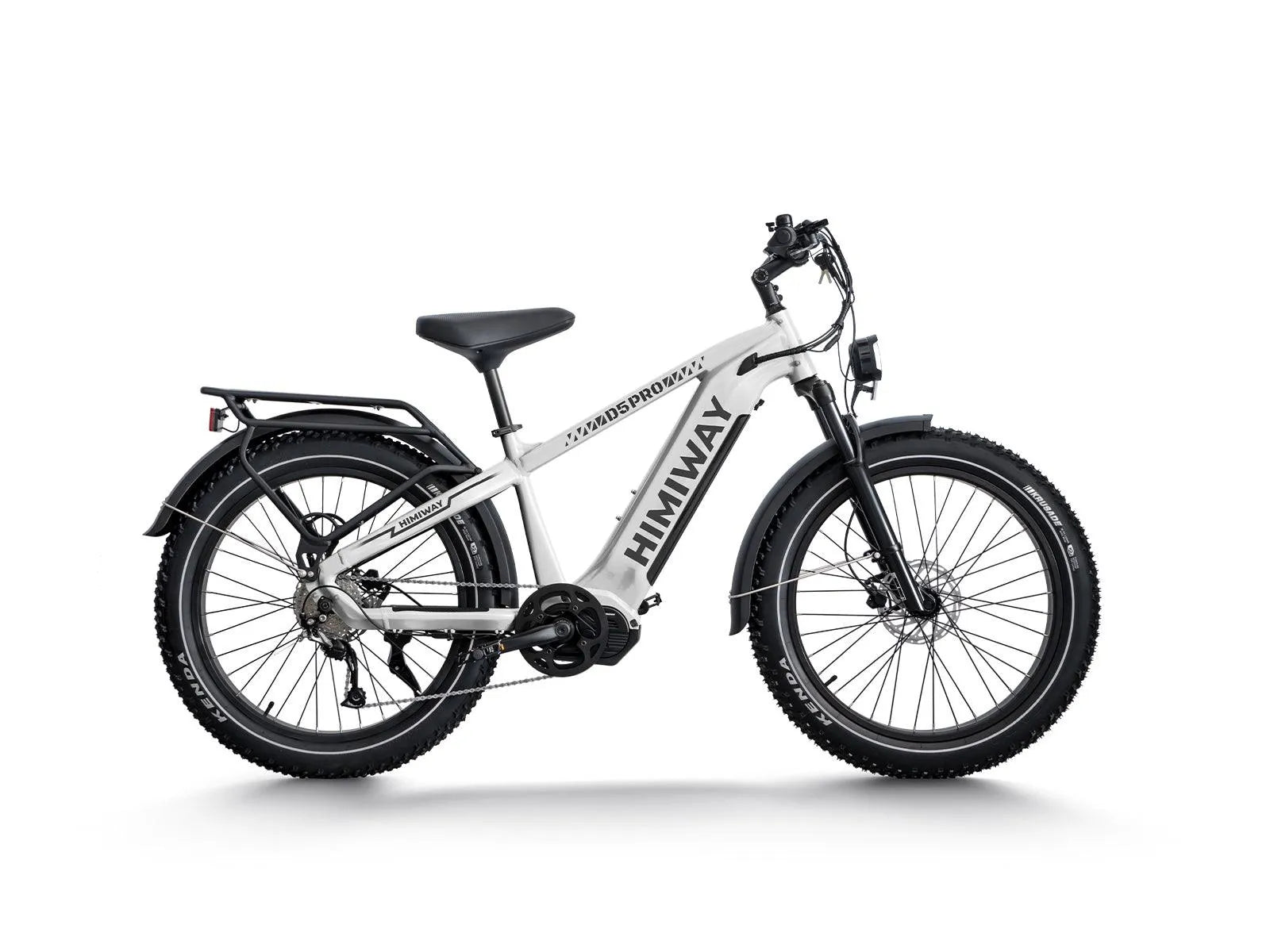

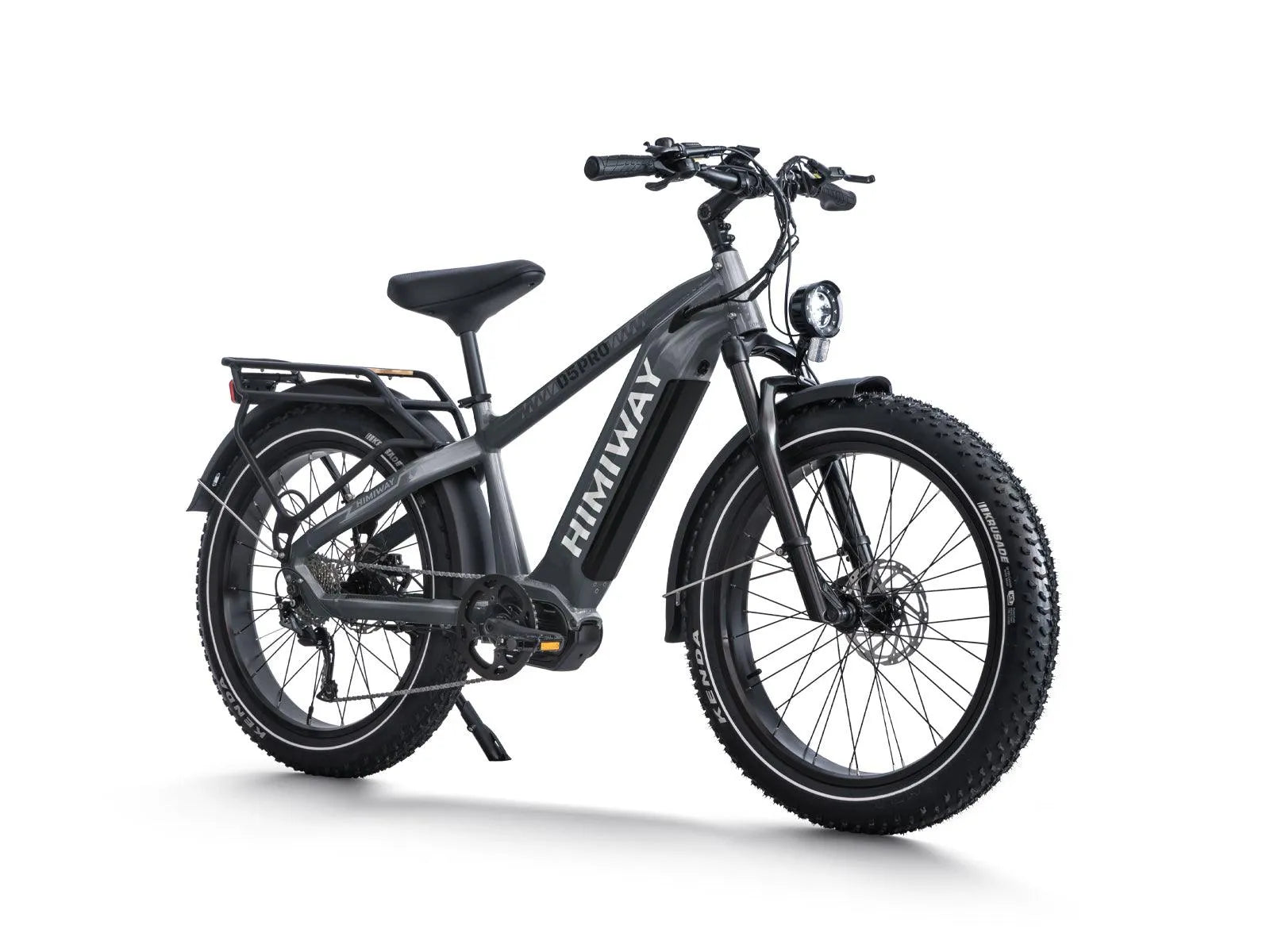

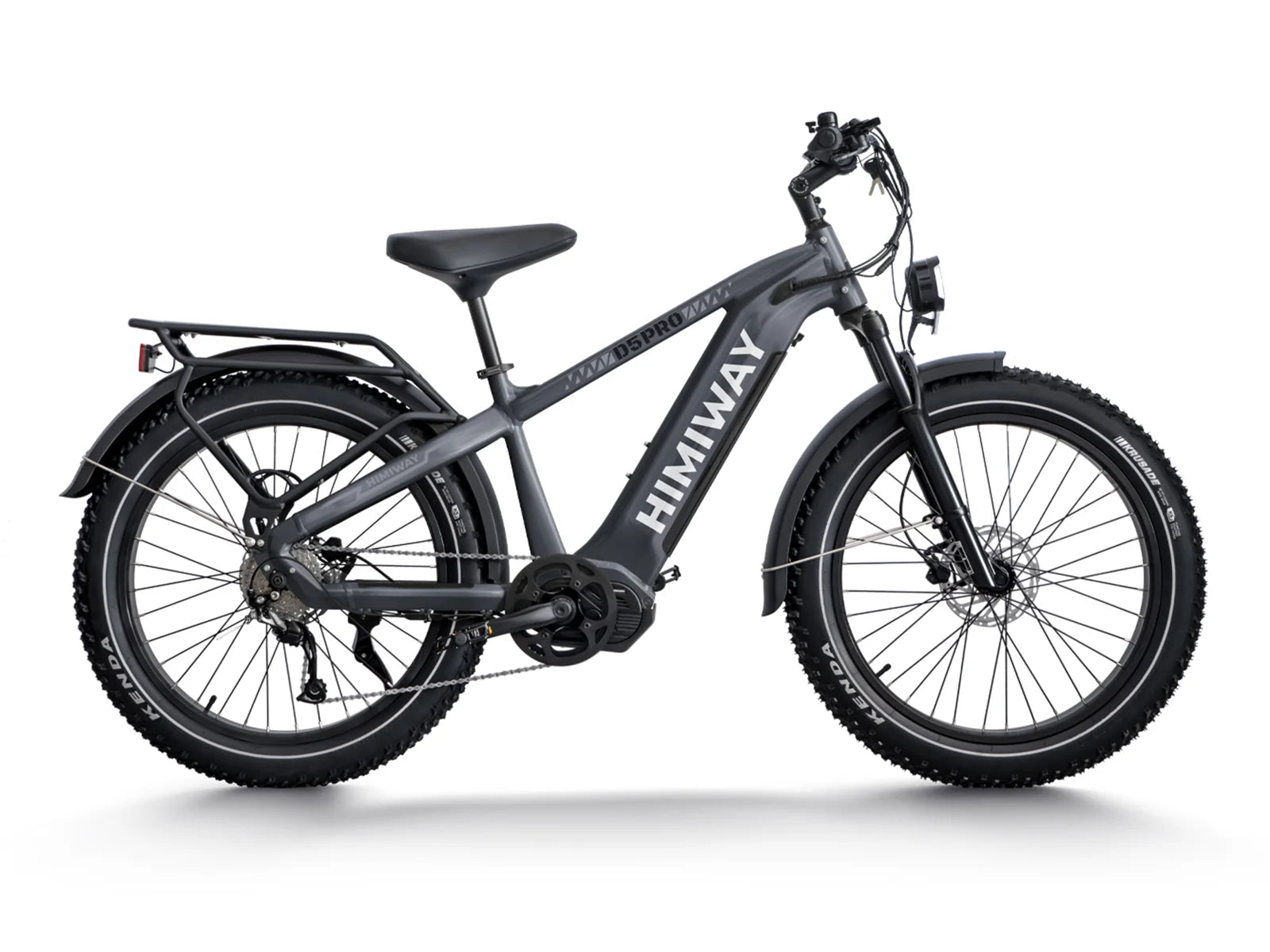

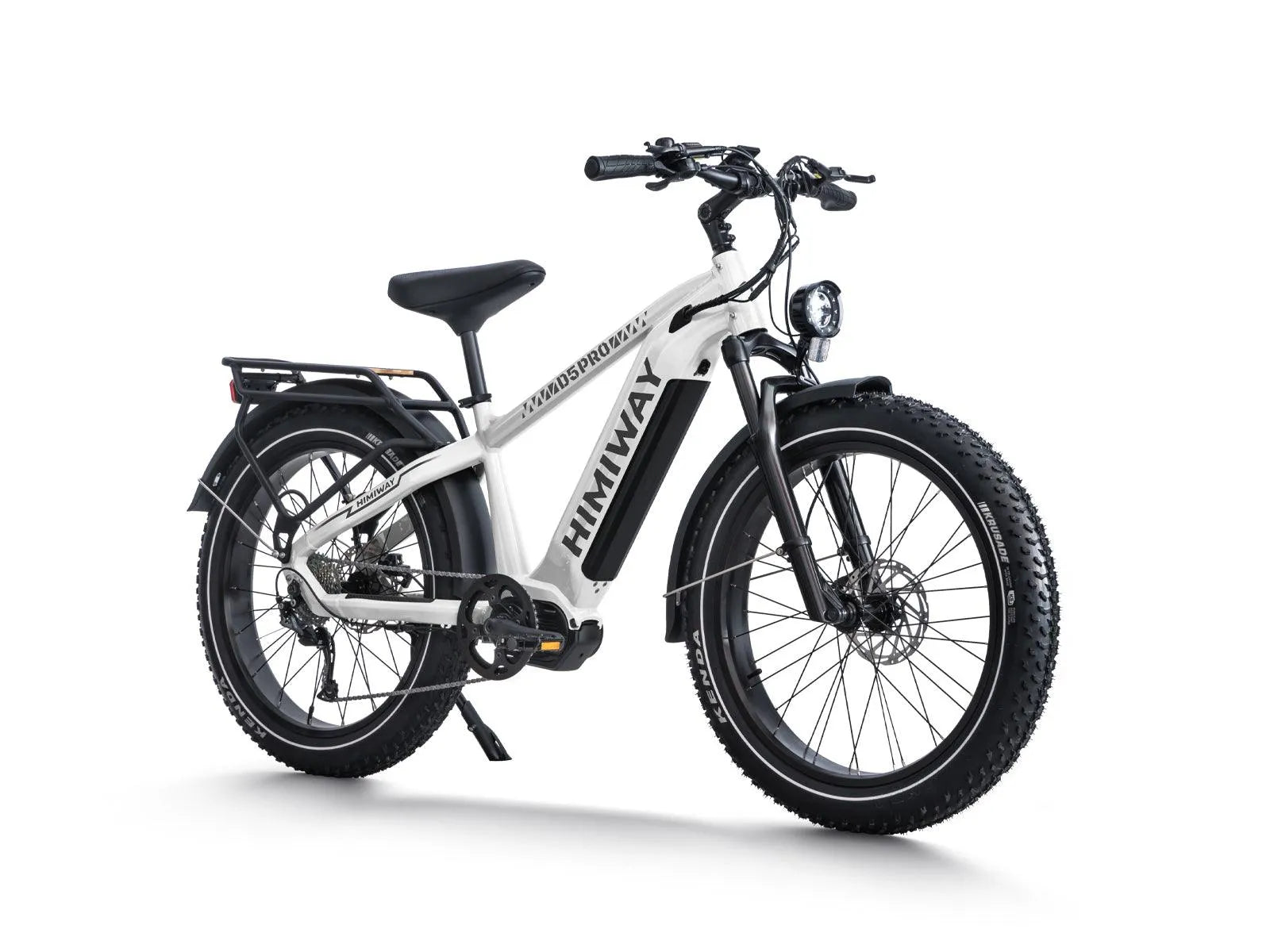

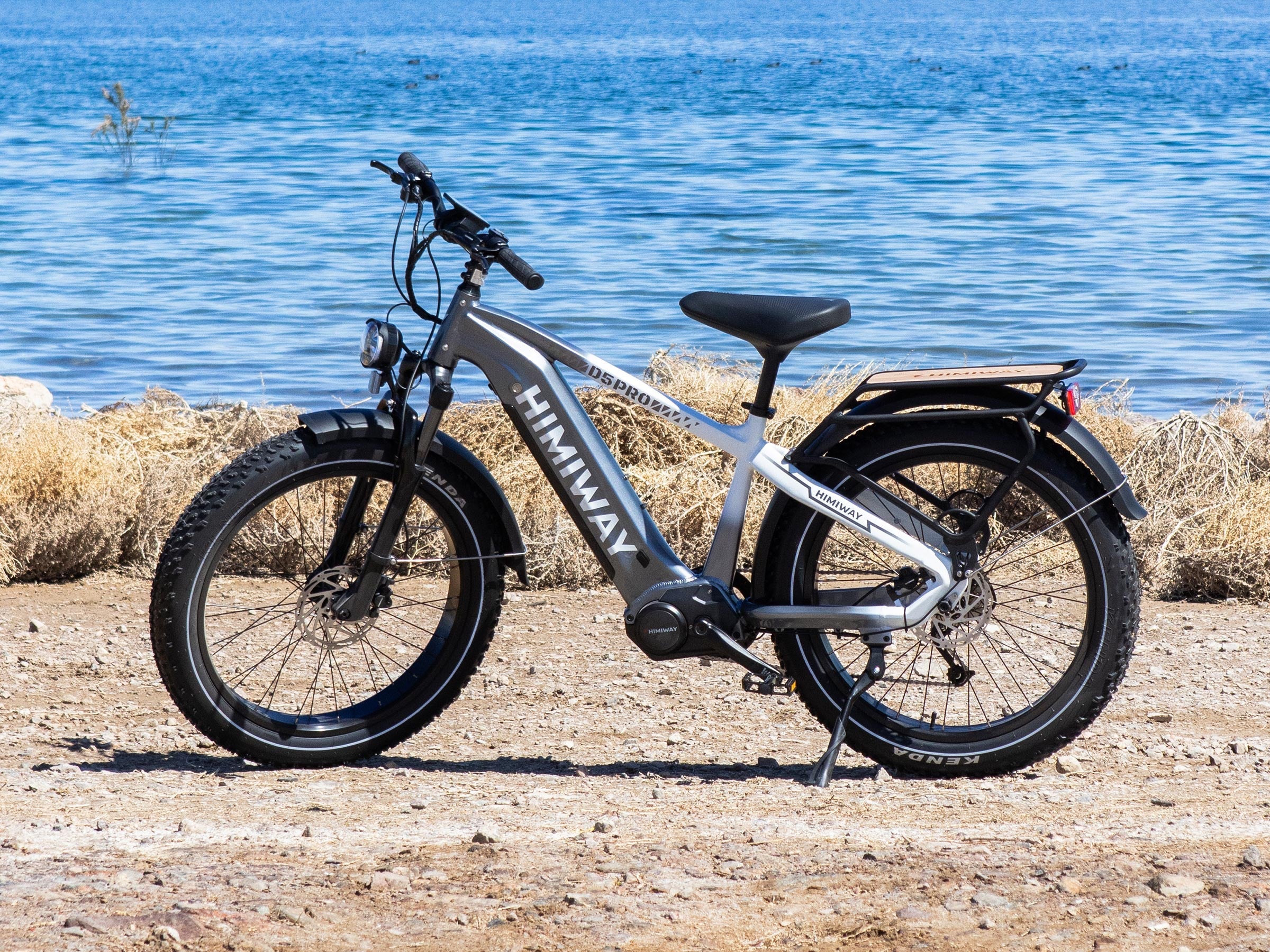

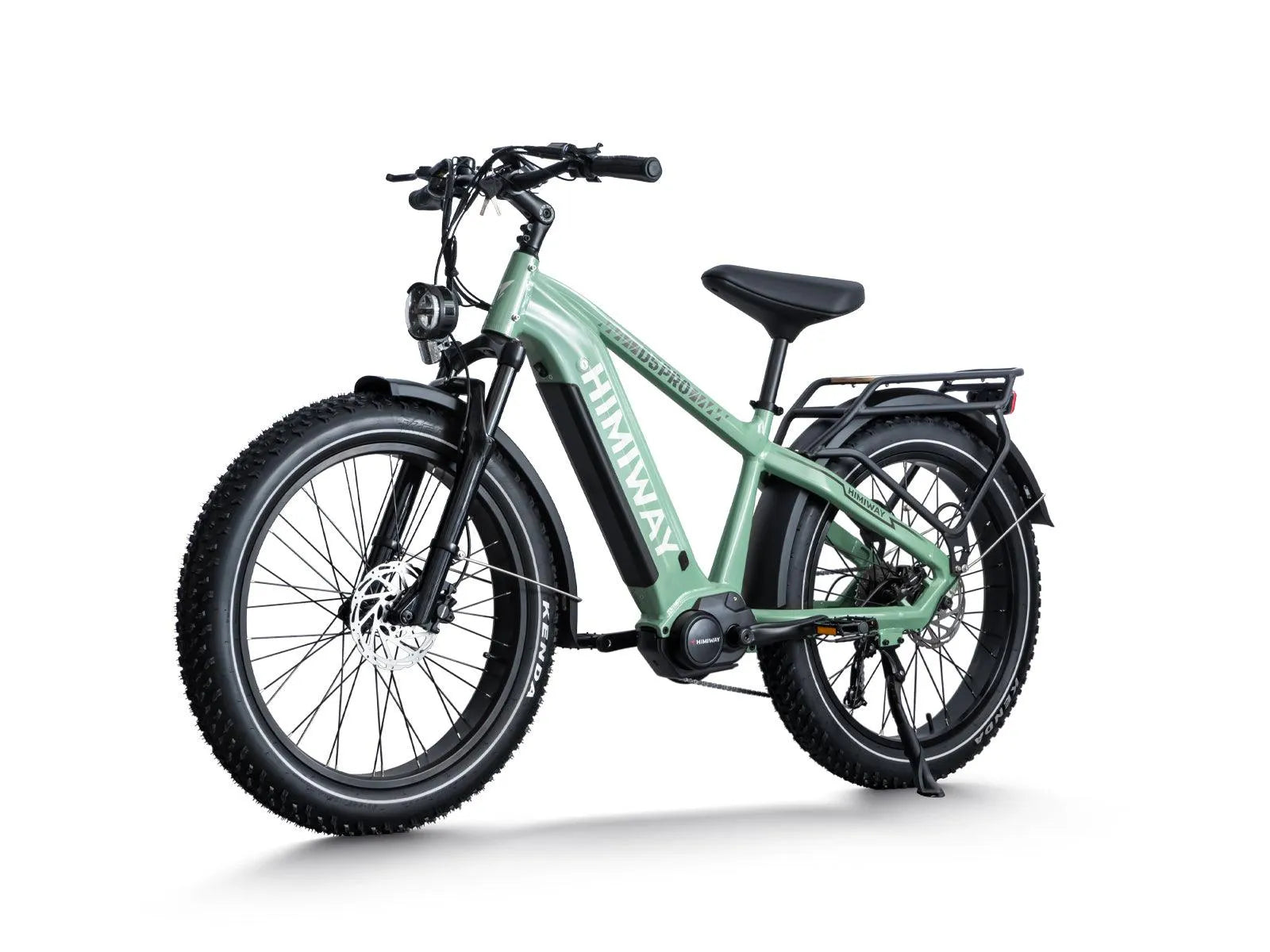

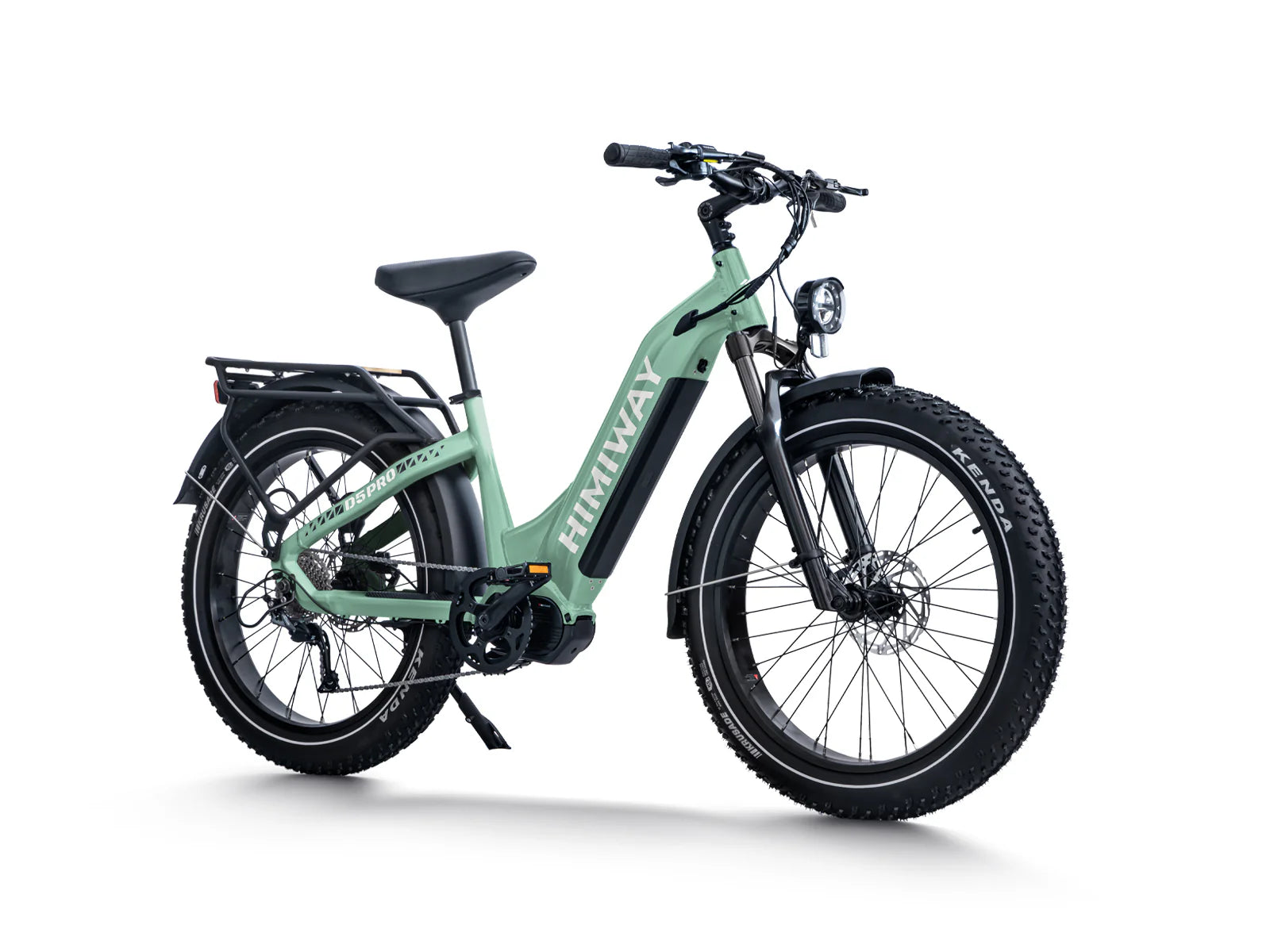

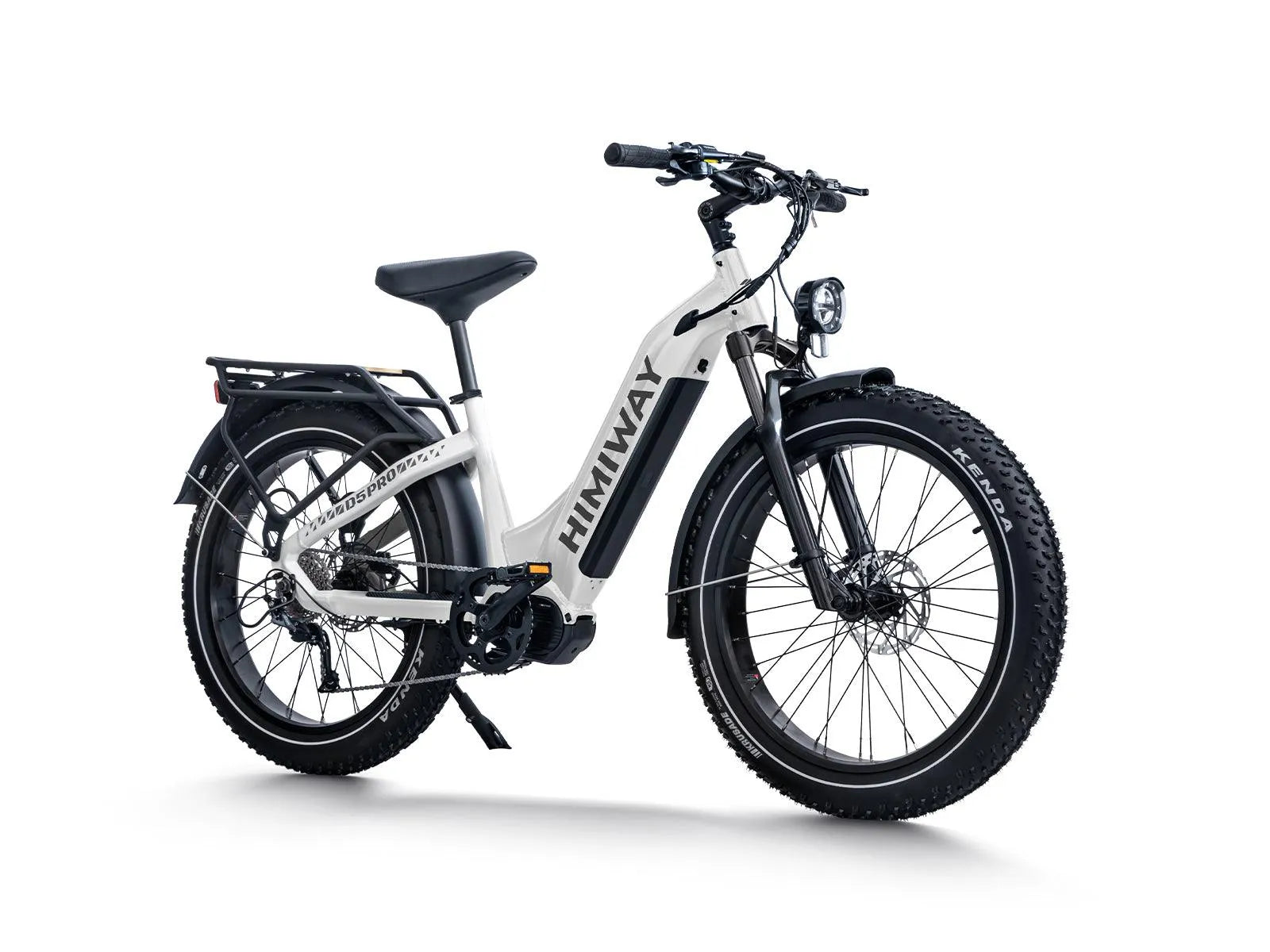

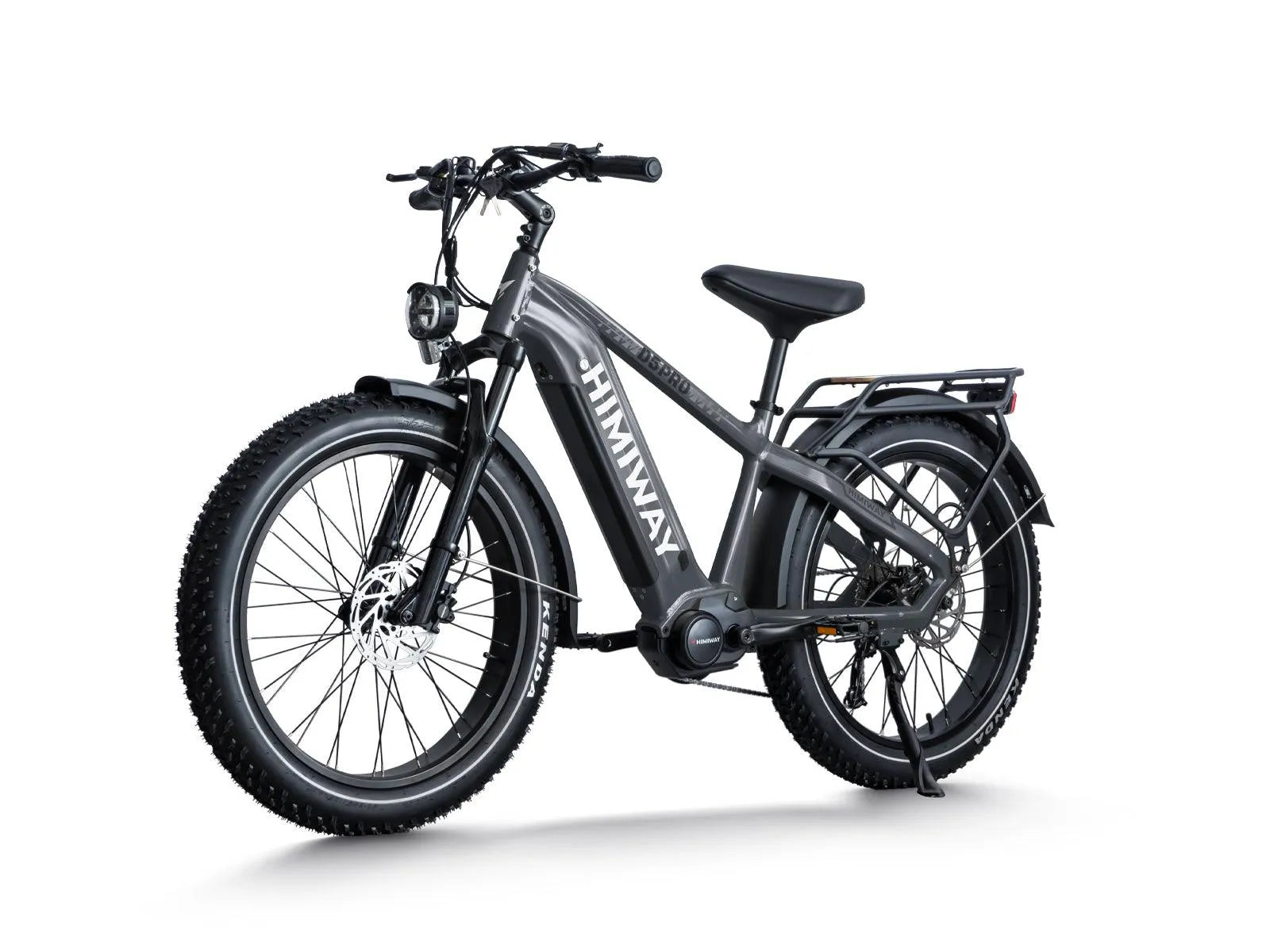

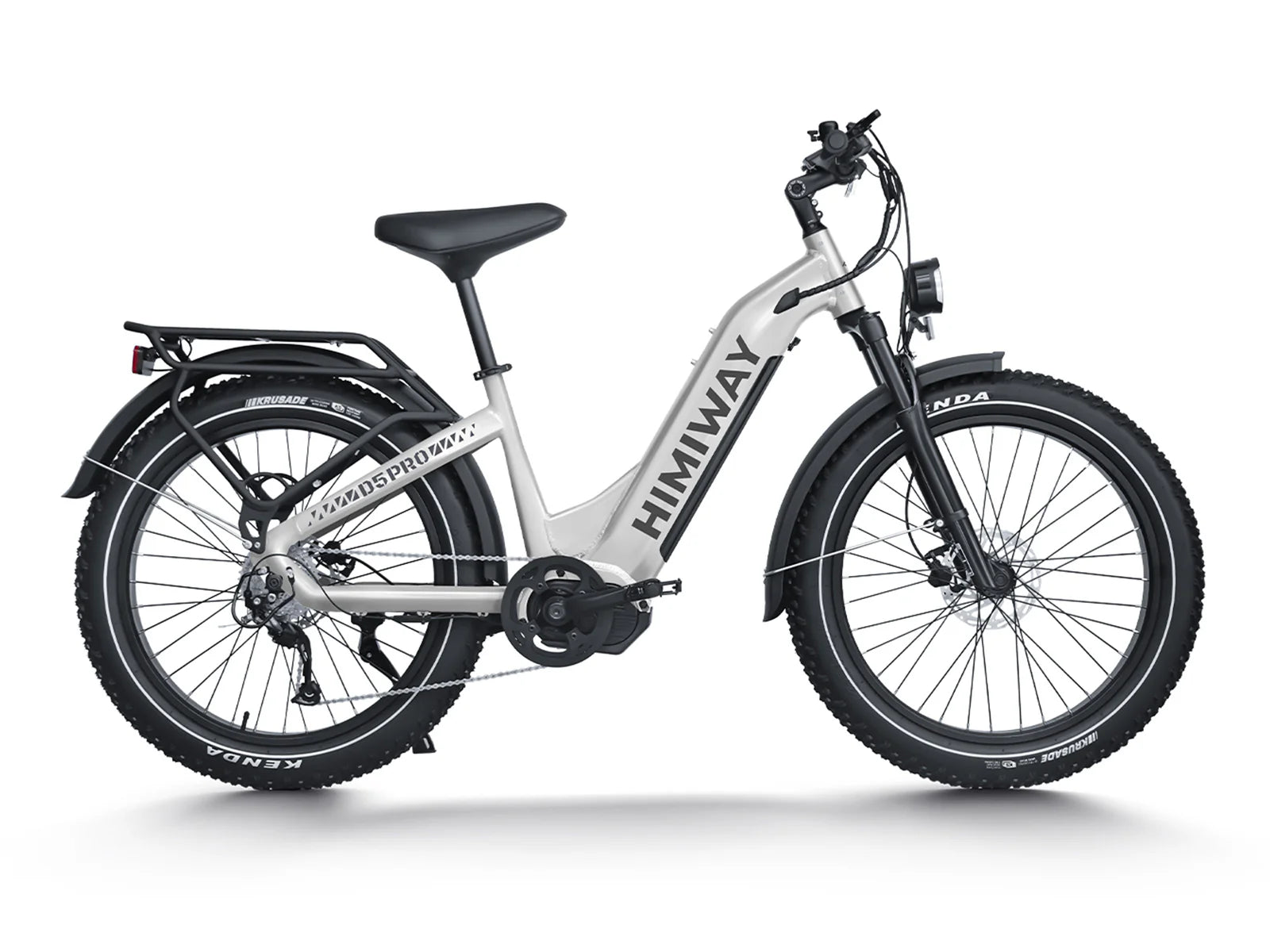

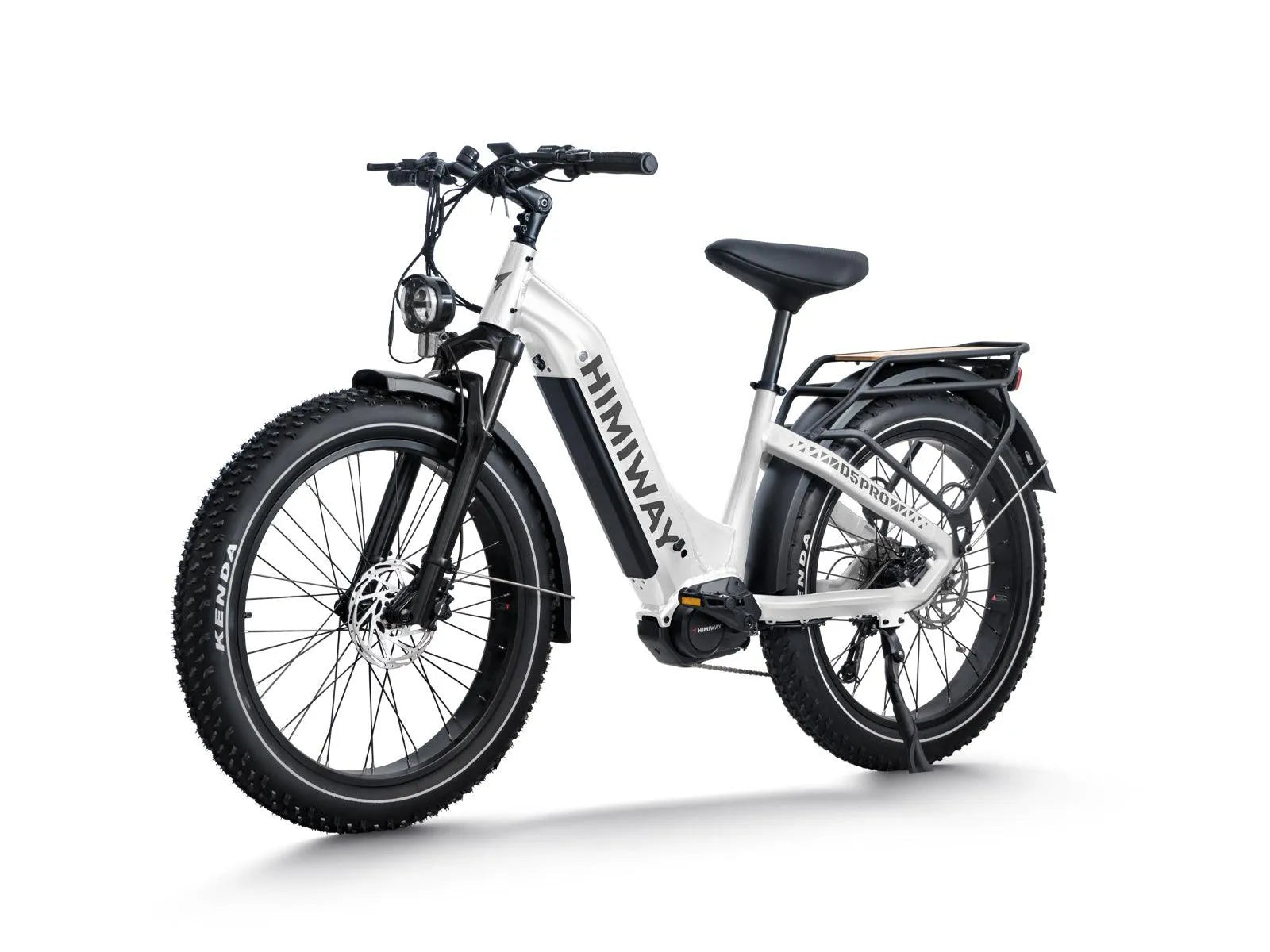

Himiway D5 Pro

Geometry

Recommended Height: 5'3" ~ 6'5"

• A – total length

78.7

• B – handlebar height
  47

• C – handlebar length
  28

• D – wheelbase
  49.2

• E – wheel diameter
  28.7

• F – minimum seat height
  20.9

• G – maximum seat height
  31.4

• H – chain stay length
  19

• I – frame stack
  24.6

• J – frame reach
  17.8

• K – effective top tube length
  24.4

• L – head tube length
  5.5

• M – head angle
  65°

• N – standover height
  ST 22.4/ SO 31.1


Specification

• Frame
  6061 Aluminum frame

• Headset
  Neco H156EM 28.644-5630

• Fork
  TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle

• Shock
  Alloy front suspension fork with lockout and adjustment

• Front wheel
  Rim: MD-147 264.0"36H12G A/VSpoke: 12G 255/256L stainless (304M)Hub: MB015-92 M912G135145W

• Rear wheel
  Rim: MD-147 26*4.0"36H12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14

• Tires
  Kenda 26*4.0

• Battery
  Samsung/LG 48V 20Ah

• Motor
  500W mid-drive motor

• Display
  KD718-P LCD display with Type-c charger

• Throttle
  Thumb throttle

• Sensors
  Torque sensor丨shifting sensor speed sensor丨brake sensor

• Crankset
  Crankarm: Prowheel 170mm / Chain ring: 44T BCD104

• Freewheel
  Shimano CS-HG201-9 11-36T


• Chain
  KMC E9 EPT 124L

• Groupset
  Shimano altus M2000 9 speed

• Front brake
  Tektro HD-E3520 hydraulic brake

• Rear brake
  Tektro HD-E3520 Hydraulic Disc Brake

• Rotors
  Tektro TR180-52 F:180mm R:180mm



Components

• Stem
  Zoom TDS-C269-8FOV 31.8*90mm

• Handlebar
  Promax HB-3188 22.231.8700mm

• Seatpost
  Himiway Seatpost

• Saddle
  Himiway Saddle

• Pedal
  Aluminum pedal

• Lights
  48V LED light

• Kickstand
  Heavy-duty aluminum kickstand


Others

• Range
  60-80 miles

• Controller
  48V/22A

• Charger
  U.S. standard 3.0 A fast charger

• Rider height
  5′3″ ~ 6′5″

• Weight
  79 lb. (with battery)


• Max. payload capacity
  400 lb.
