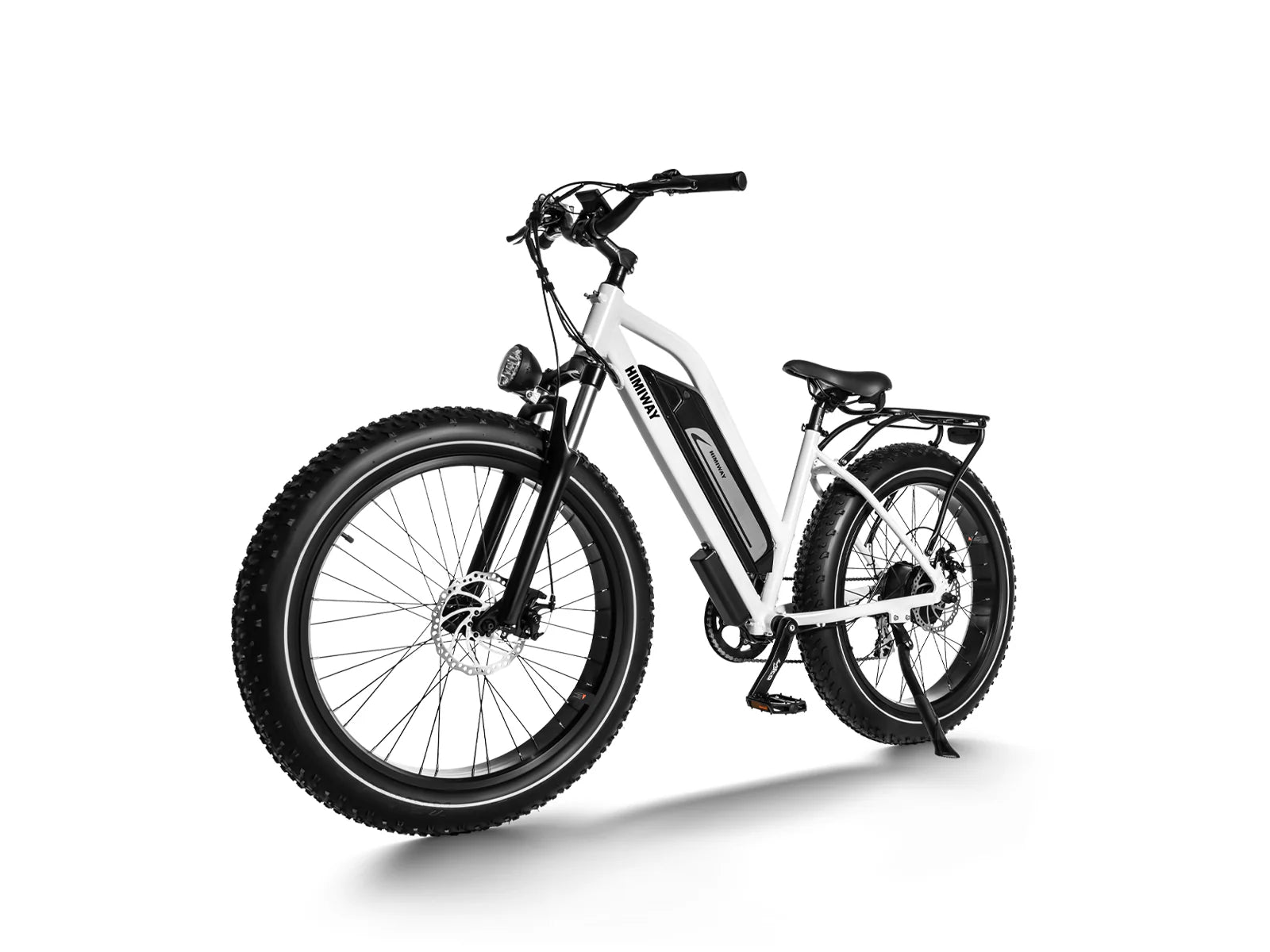

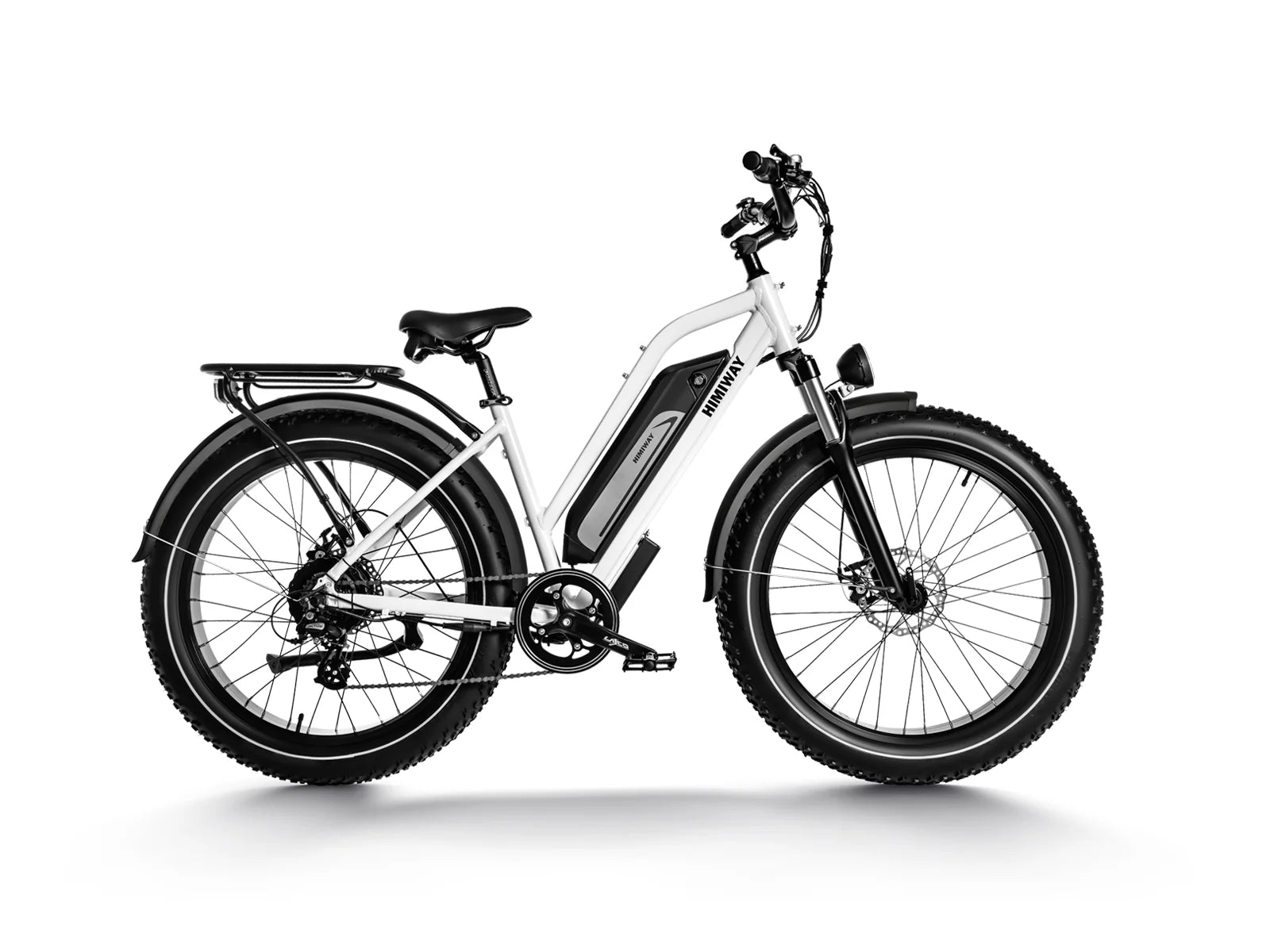

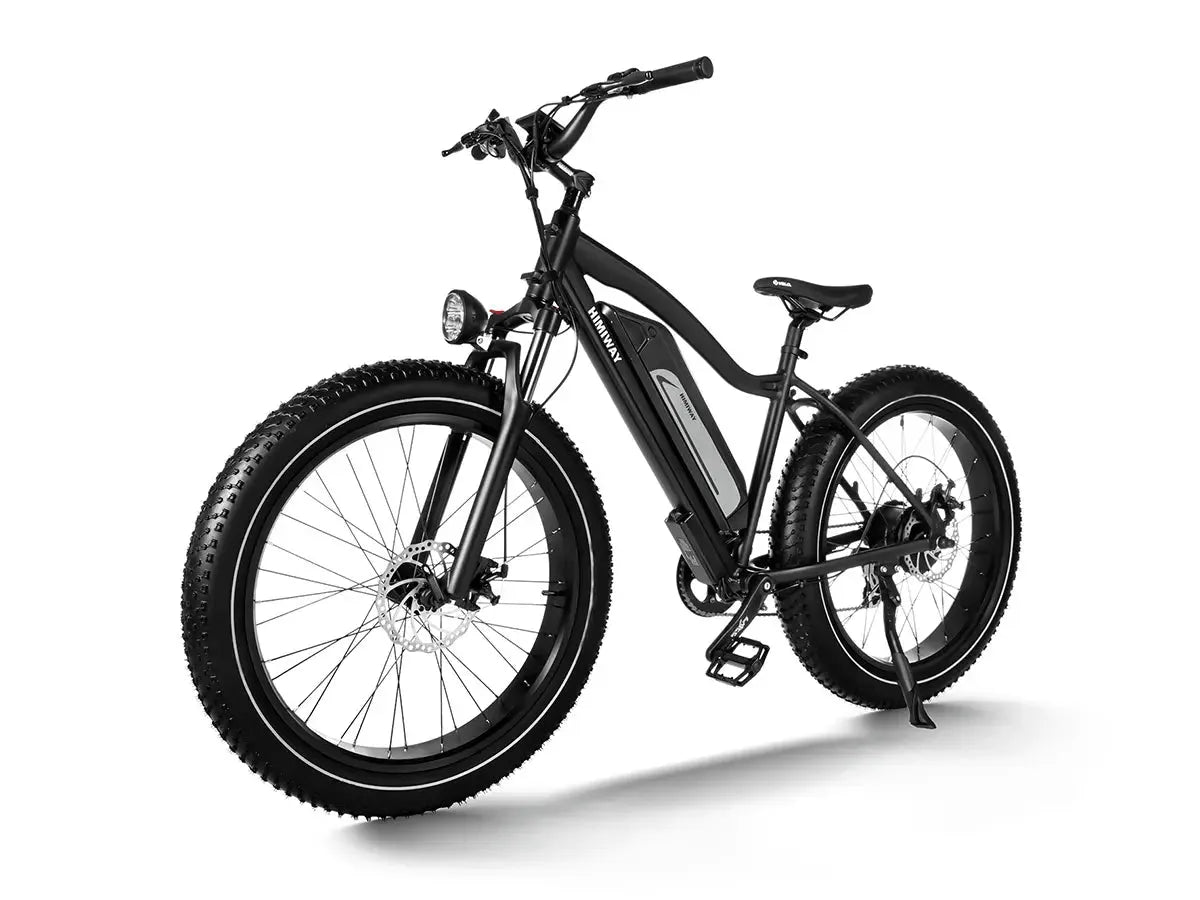

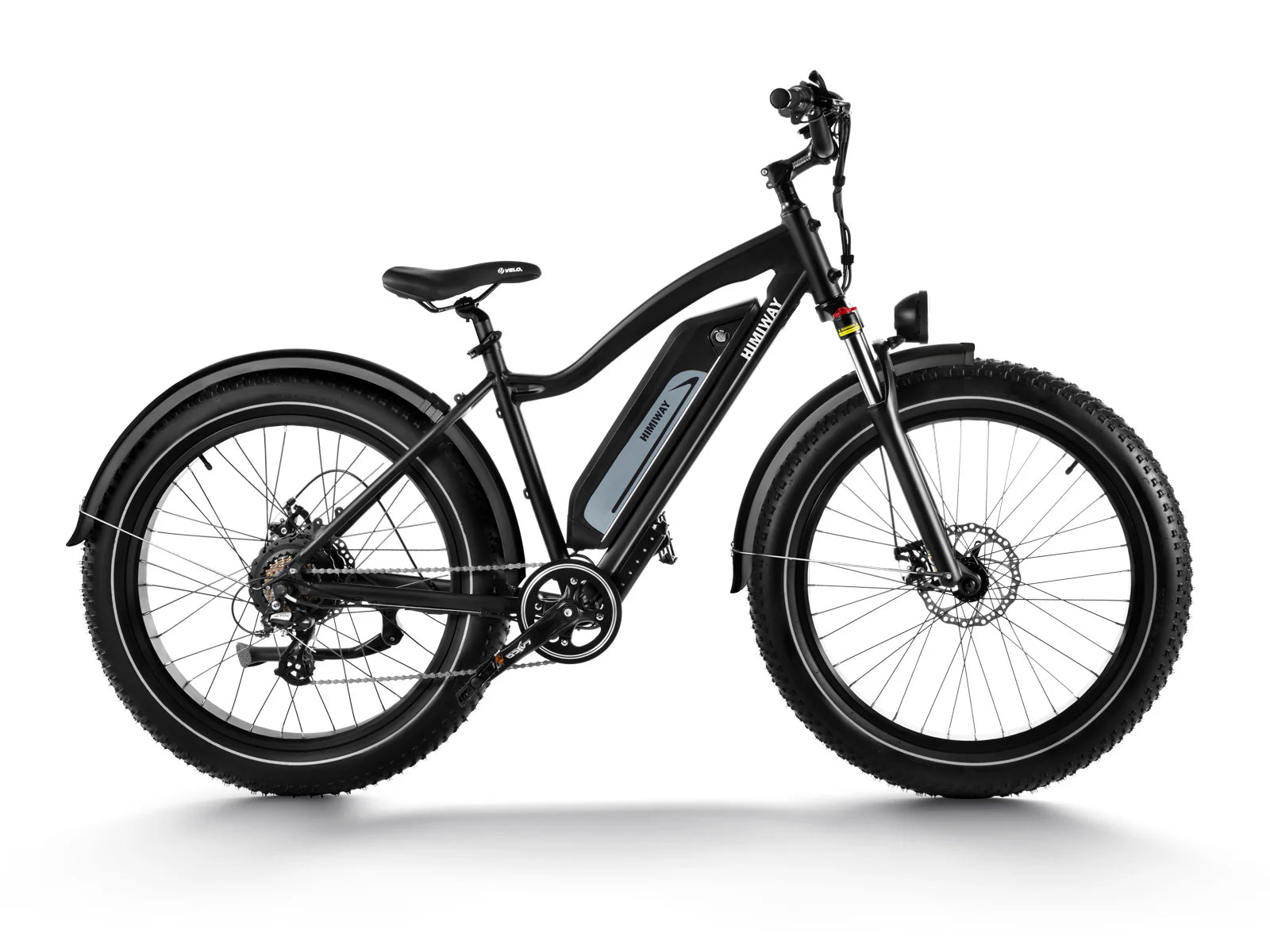

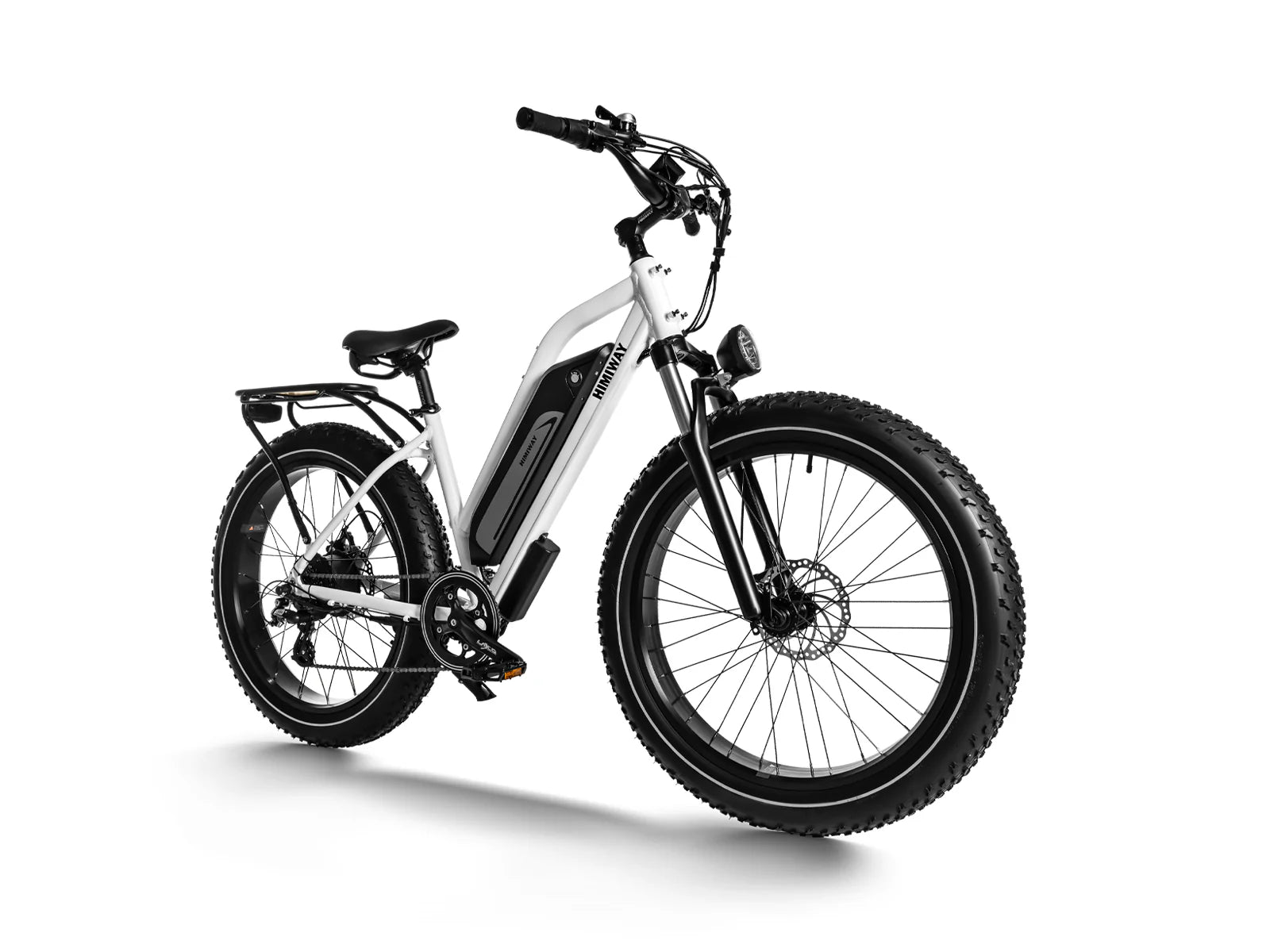

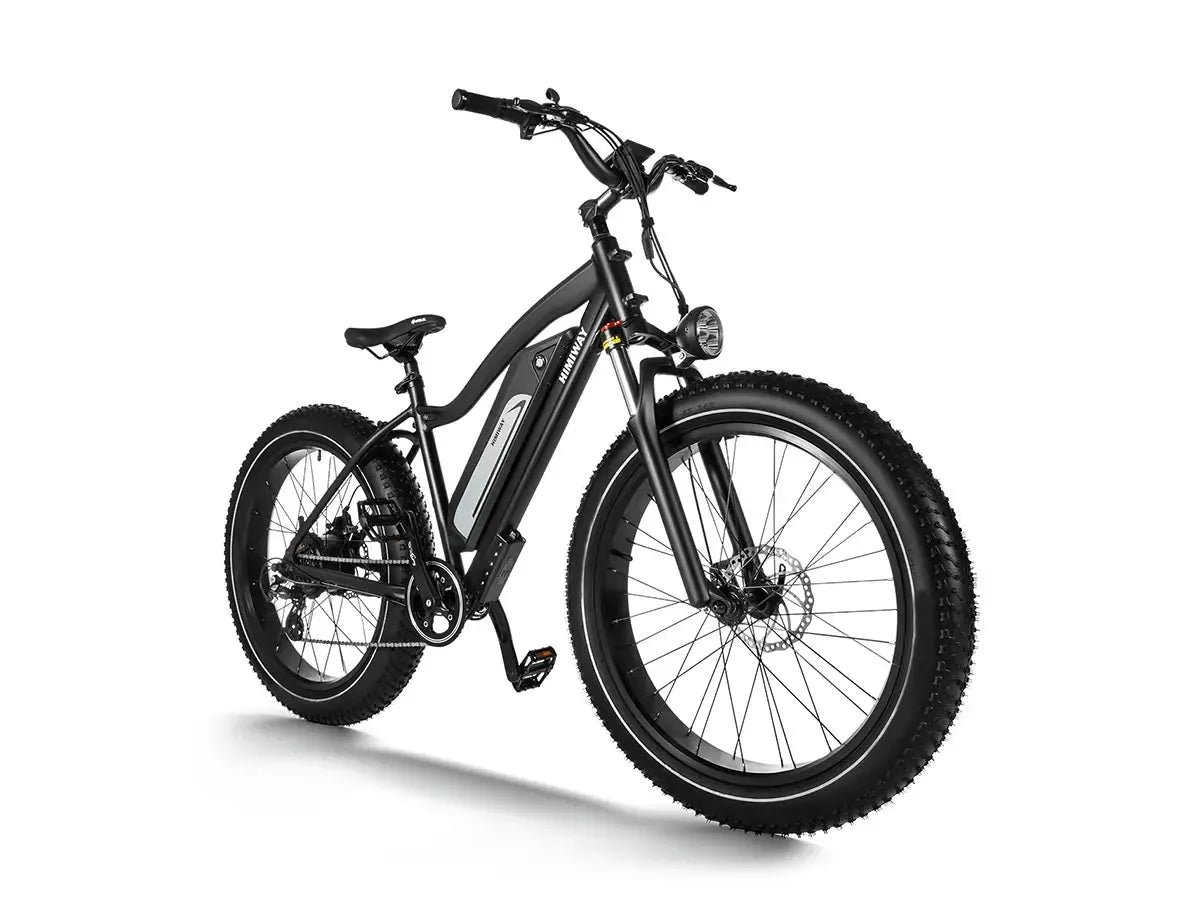

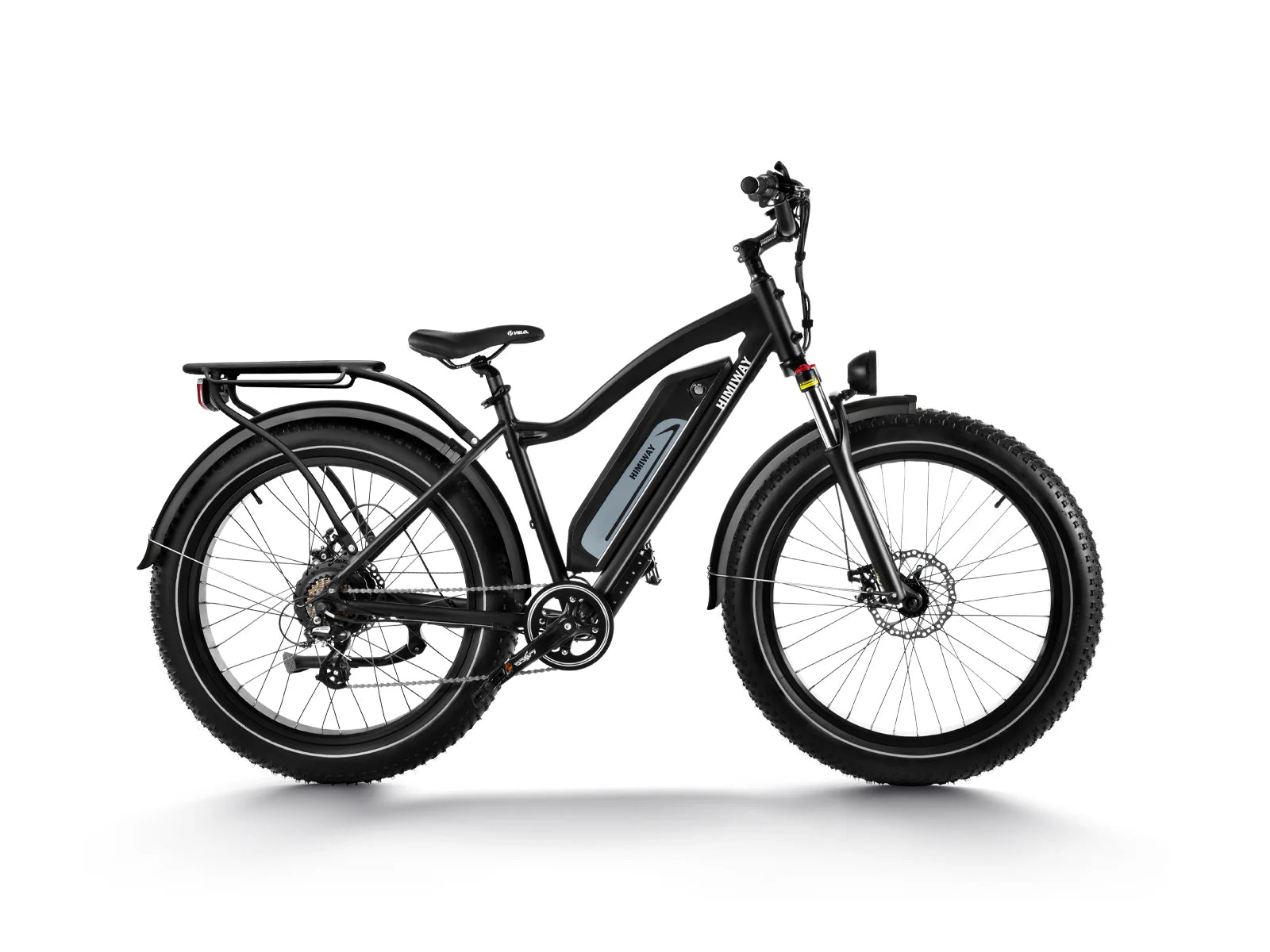

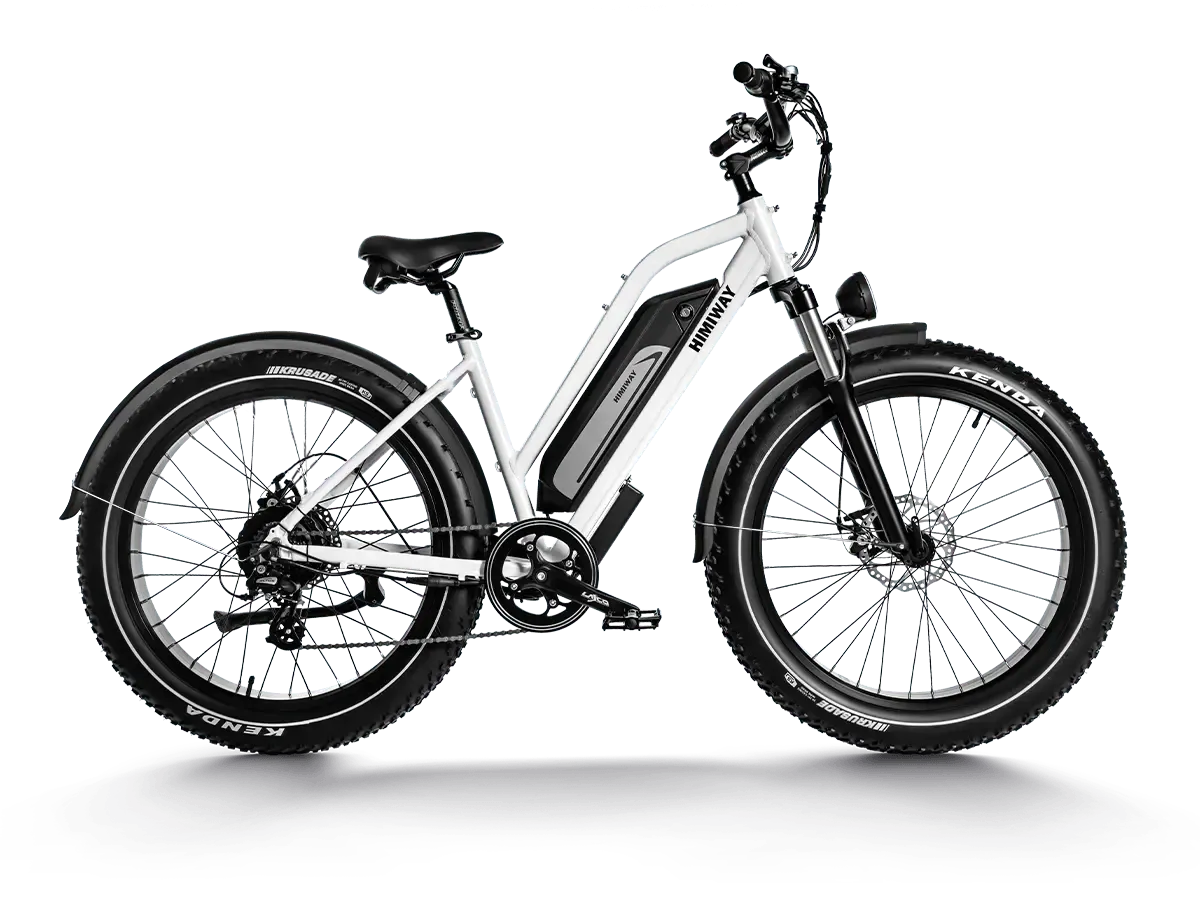

Himiway D3

Geometry

Recommended Height: 5'3" ~ 6'5"

• A – total length

  75


• B – handlebar height

  46.5


• C – handlebar length

  28


• D – wheelbase

  45


• E – wheel diameter

  28.7


• F – minimum seat height

  22


• G – maximum seat height

  29


• H – chain stay length

  18.7


• K – effective top tube length

  23


• L – head tube length

  6.1


• N – standover height

  ST 27.9/ SO 30.3



Specification

• Frame

  6061 Aluminum frame


• Headset

  Neco H148 28.6×44*44×30mm


• Fork

  Guide-26”-TNL-95 95mm travel


• Shock

  Alloy front suspension fork with lockout and adjustment


• Front wheel

  MB015-92 13G1359mm MD242 2687mm 12G36


• Rear wheel

  Rim: 3G1359mm MD242 2687mm | Spoke: 12G36 | Hub: 48v 750w Himiway hub motor


• Tires

  26*4.0


• Battery

  Samsung/LG 48V 15Ah


• Motor

  750W brushless gear motor


• Display

  LCD display with USB charging


• Throttle

  Half twist throttle


• Sensors

  Cadence sensor丨speed sensor丨brake sensor


• Crankset

  Crank arm: 4IXF-212FA 170mm | Chain ring: 46T


• Freewheel

  Shimano MF-TZ500-7 14-28T


• Chain

  KMC Z8.3 EPT 120L


• Groupset

  Shimano altus M310 7 speed


• Front brake

  Tektro ARIES MD-M300 mechanical disc brakes


• Rear brake

  Tektro ARIES MD-M300 mechanical disc brakes


• Rotors

  Tektro TR180-24 F:180mm R:180mm



Components

• Stem

  YC-C410 28.68031.8mm

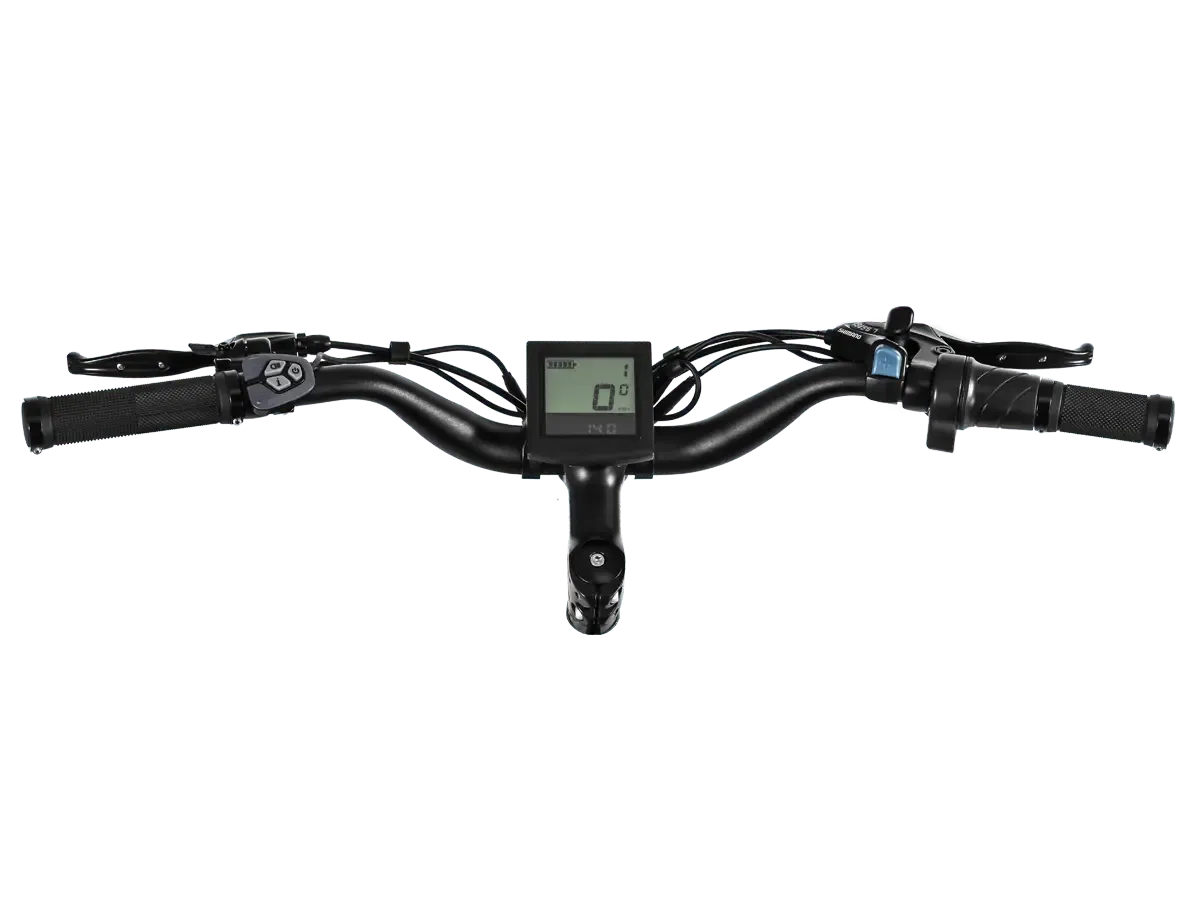

• Handlebar

  YC-B087 22.231.8700mm


• Seatpost

  H202211DJ ISO-M 30.4*350mm


• Saddle

  TTZ032X


• Pedal

  Aluminum pedal


• Lights

  48V LED light


• Kickstand

  Heavy-duty aluminum kickstand



Others

• Range

  35~60 miles


• Controller

  48V/22A


• Charger

  US standard 2.0 A smart charger


• Rider height

  5′3″ ~ 6′5″


• Weight

  72lb.(with battery)


• Max. payload capacity

  350 lb.



Recommended Height

Recommended Height: 5'3"~6'4"

Seat Height:43~44 inch
