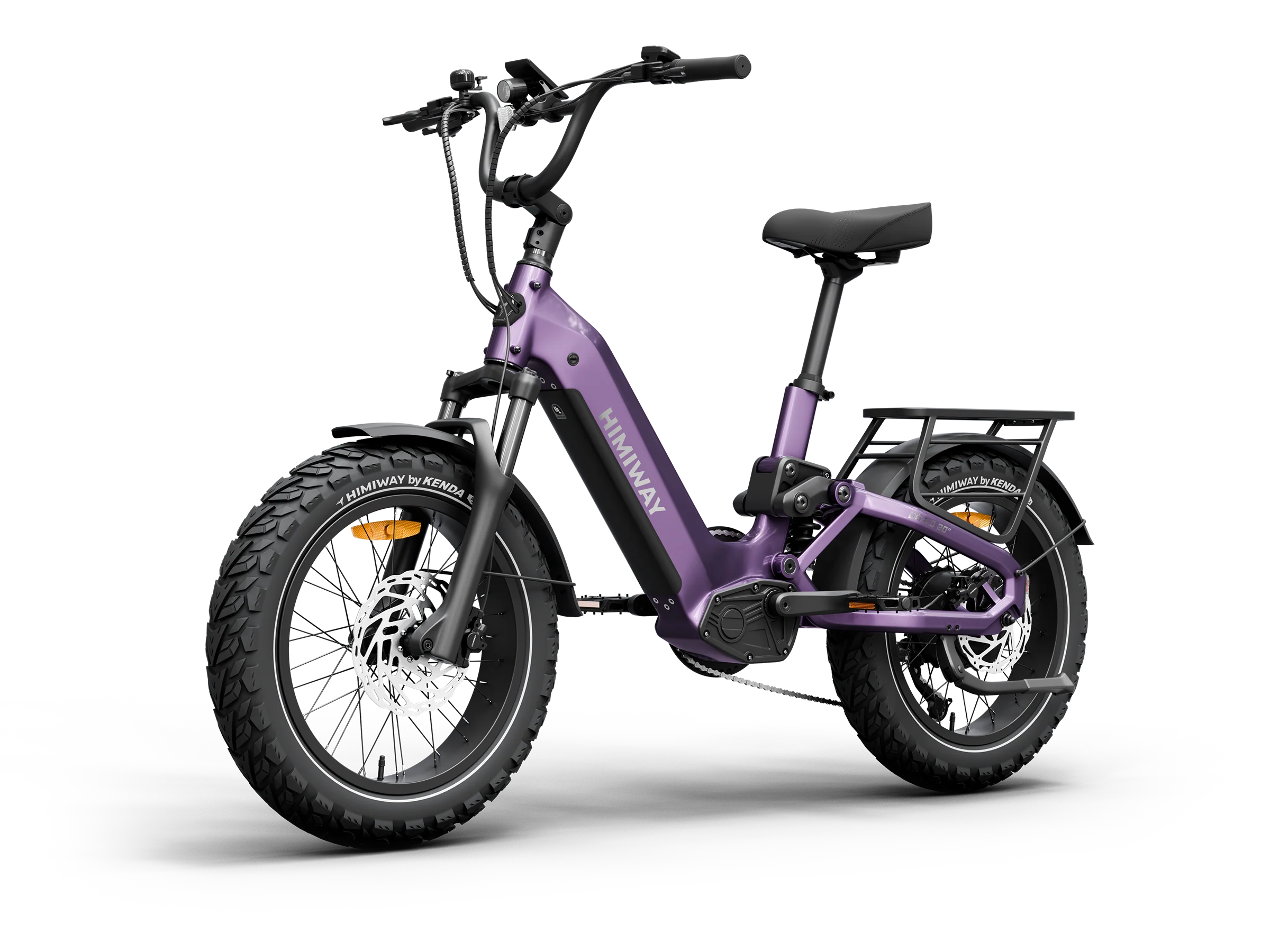

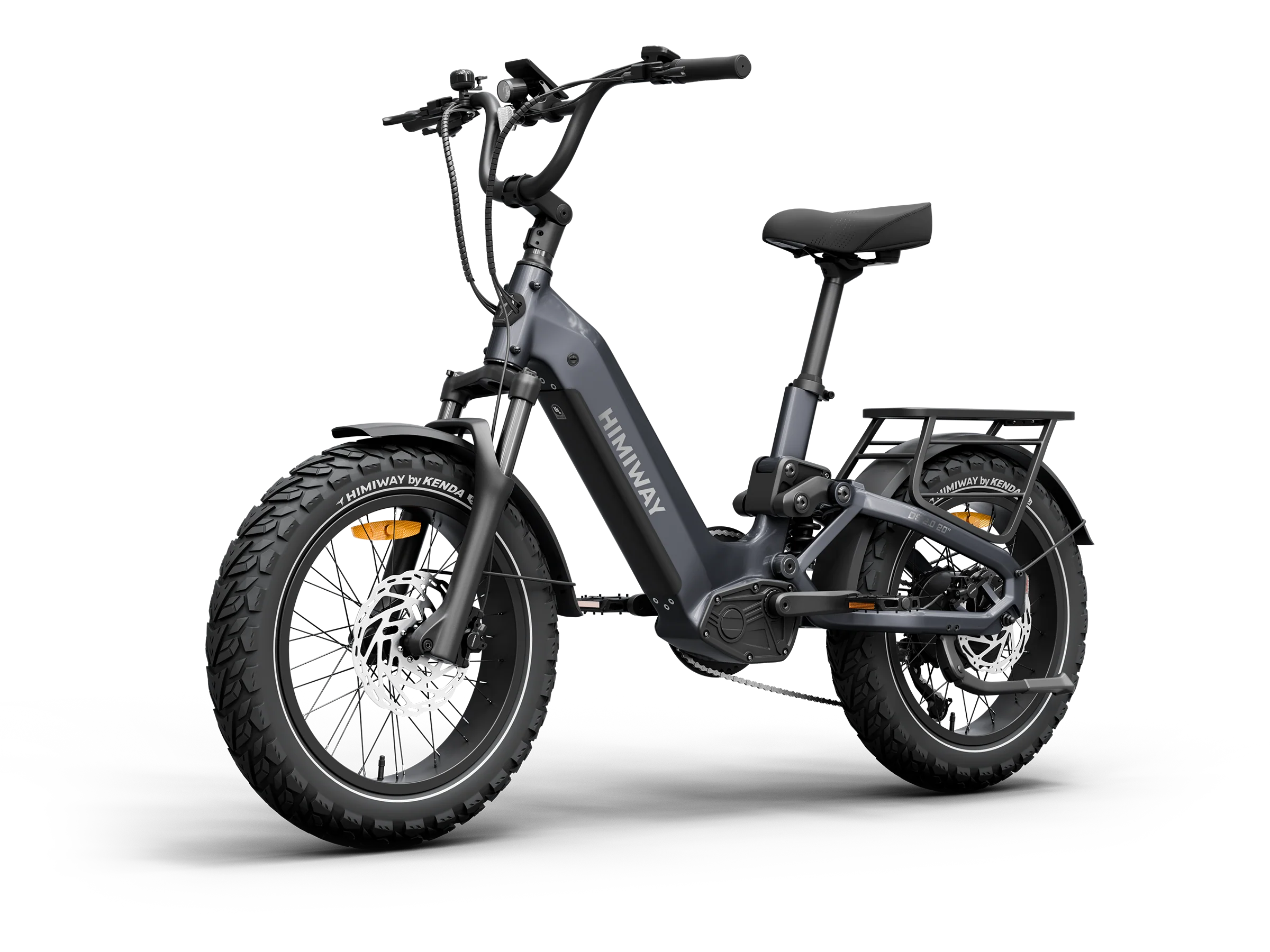

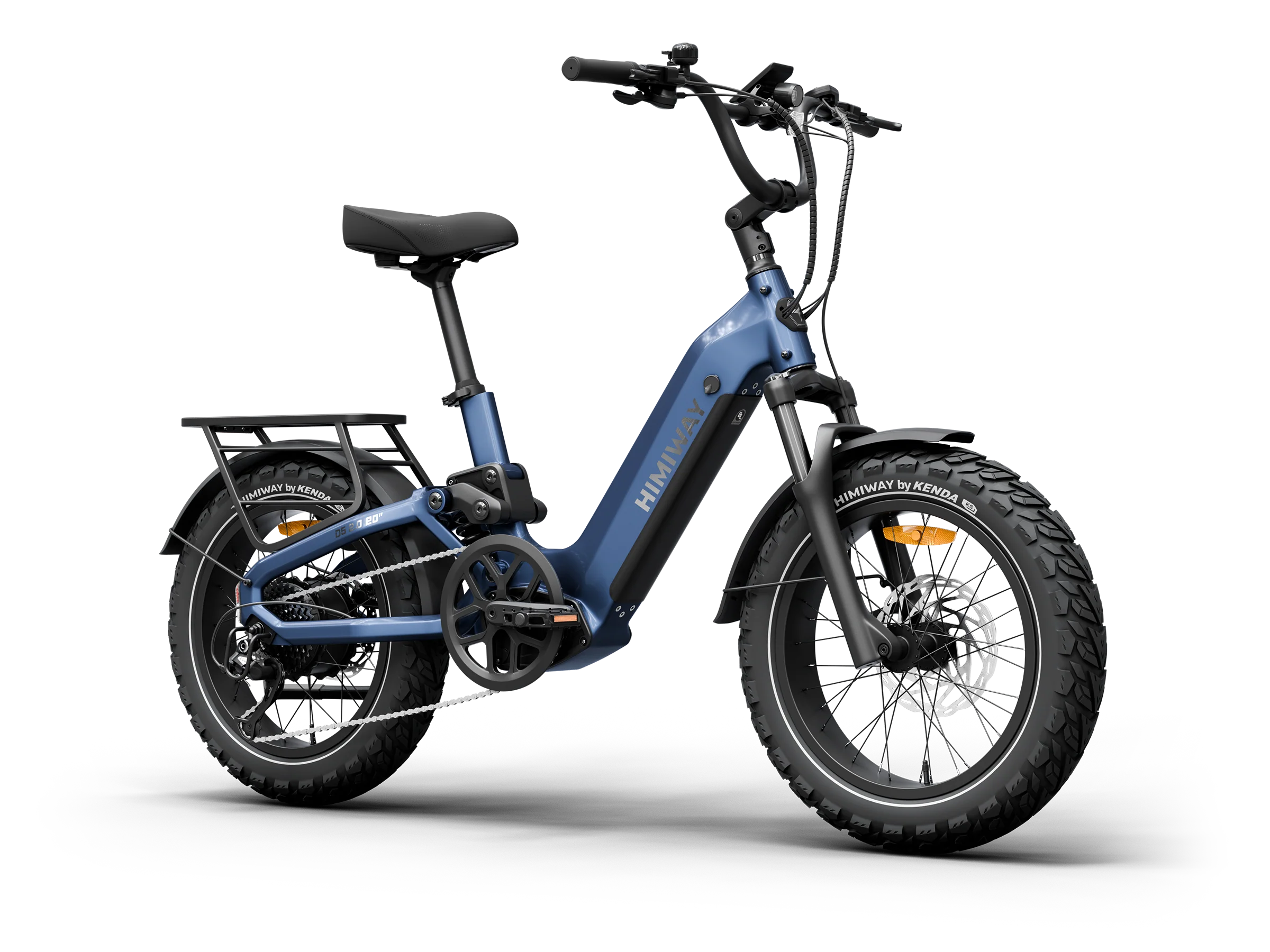

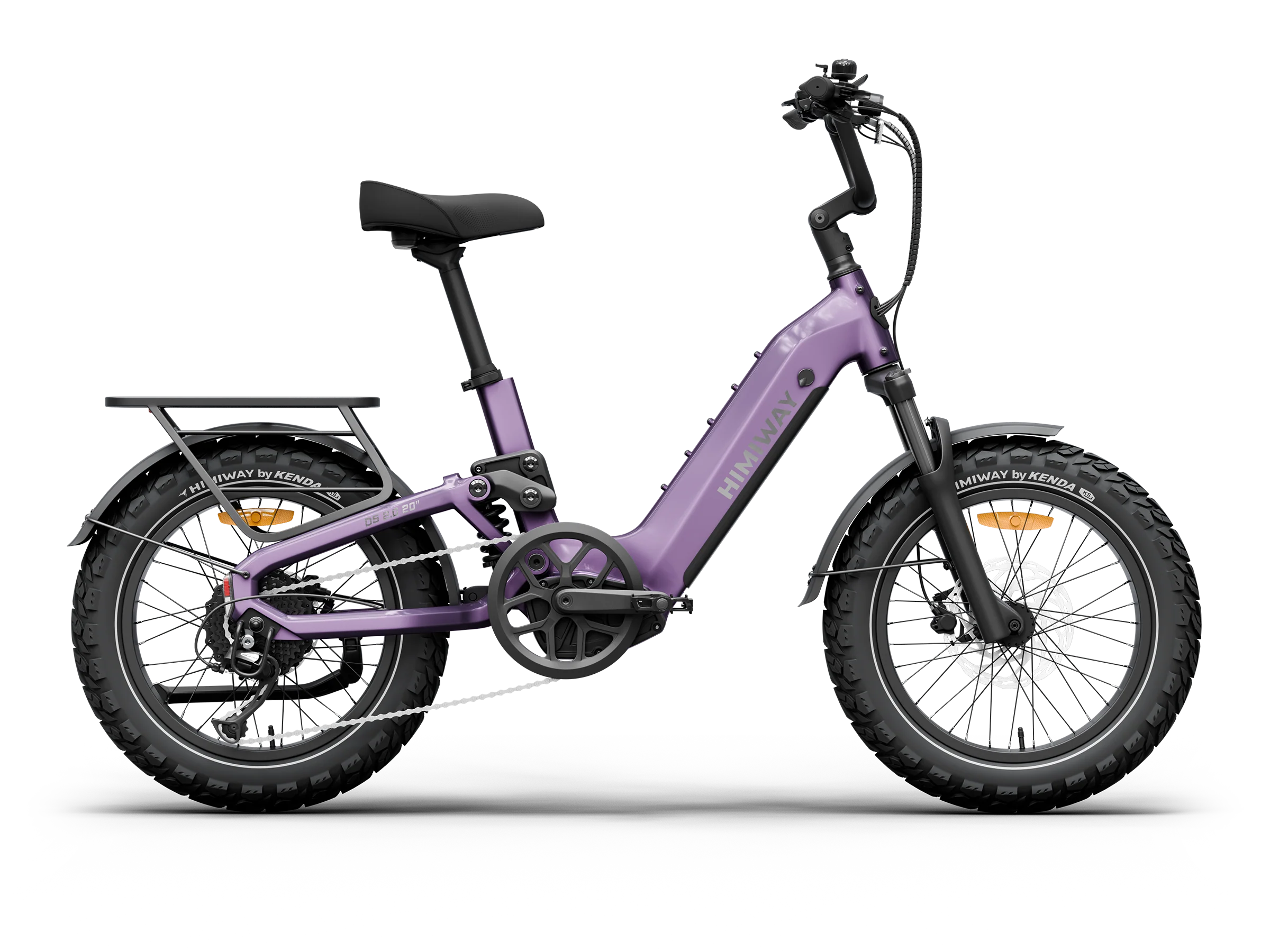

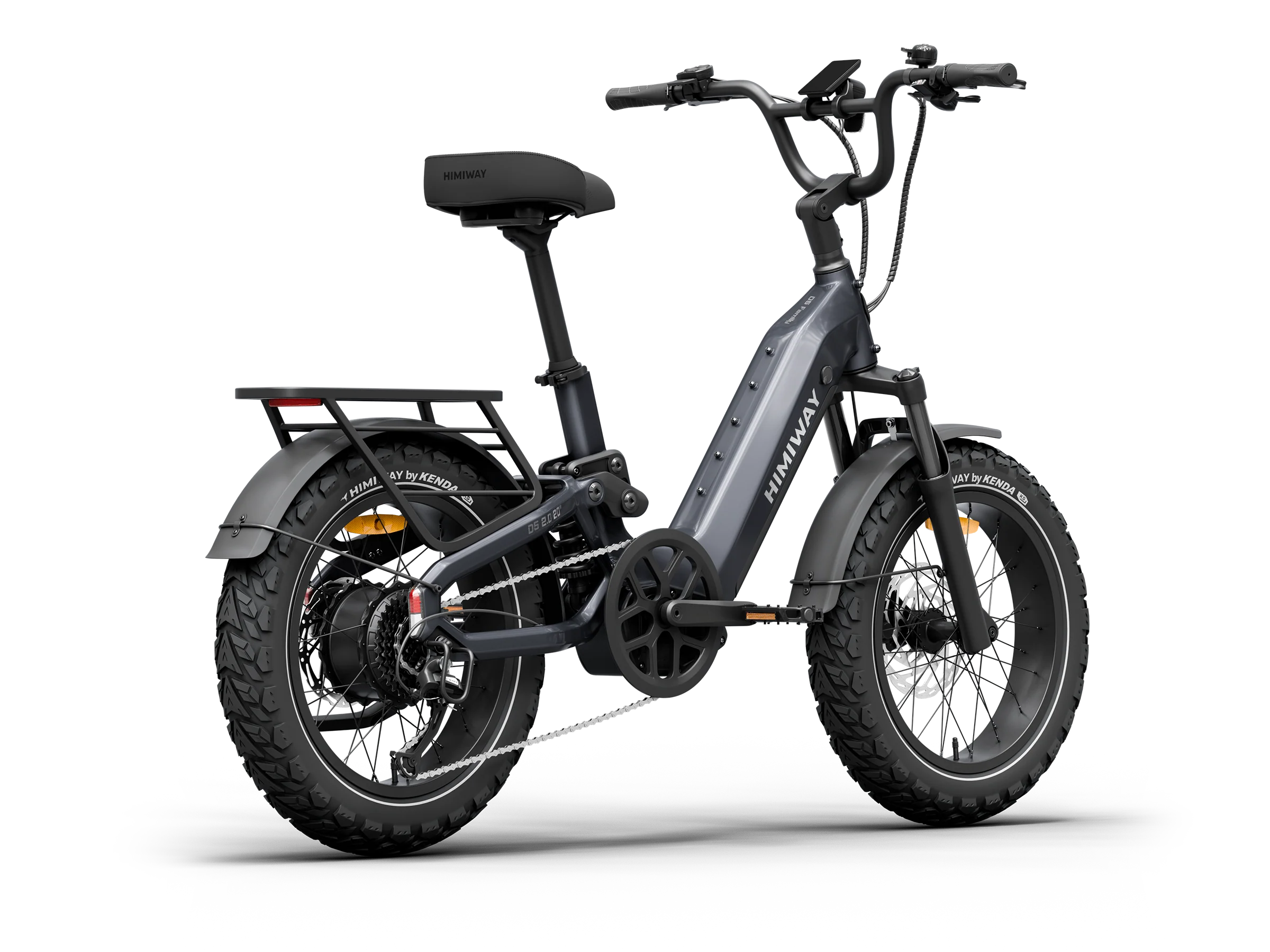

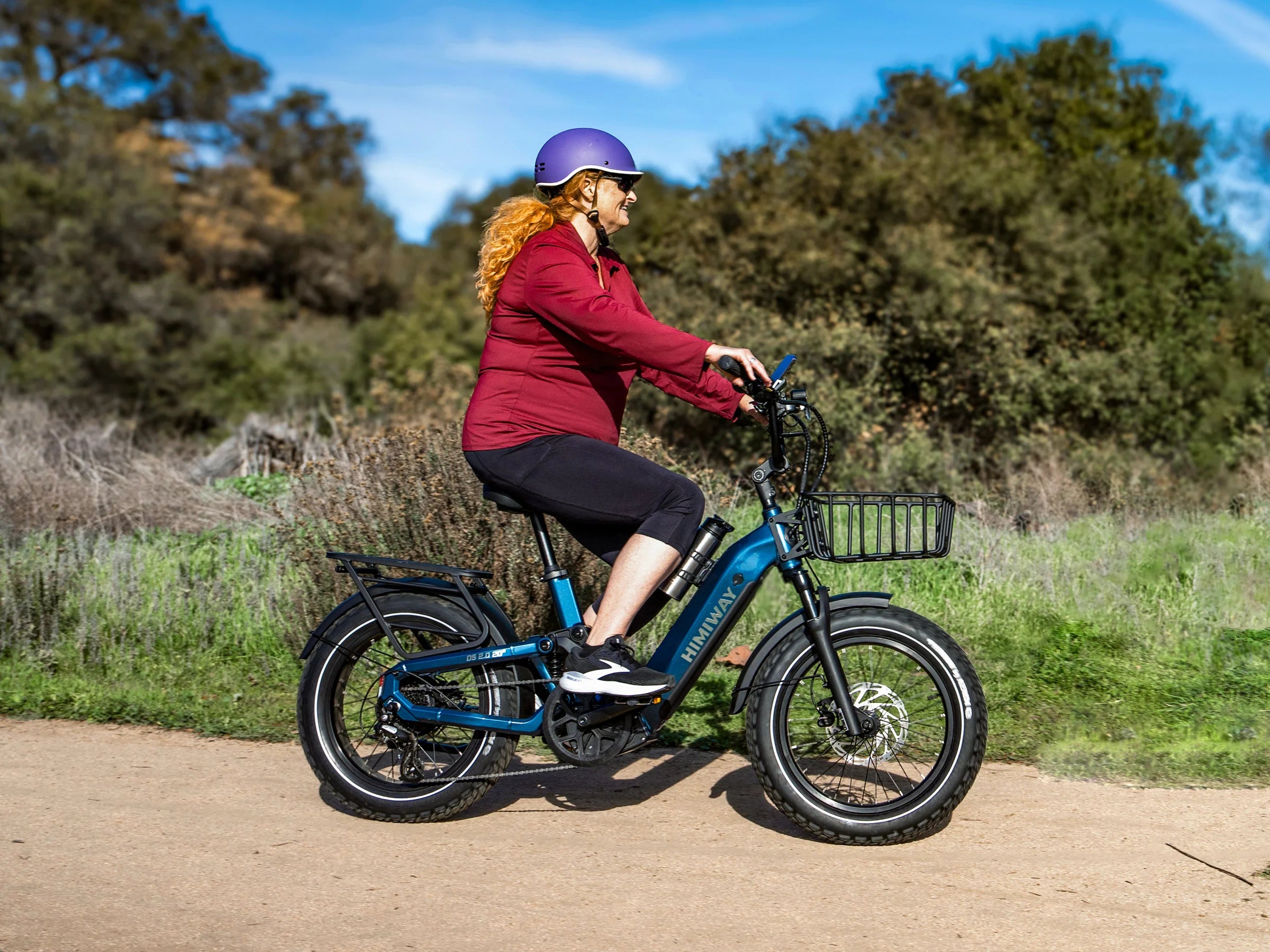

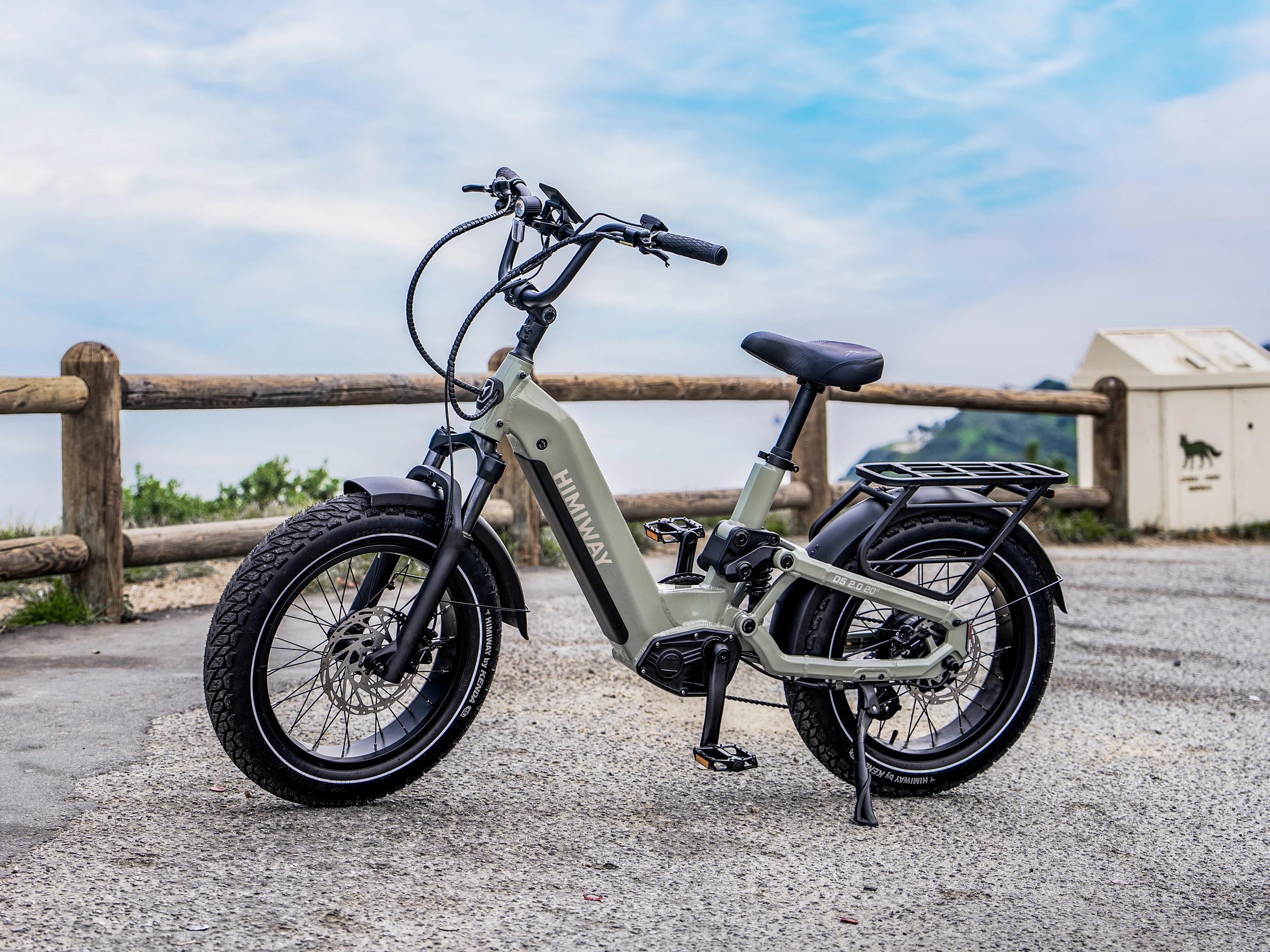

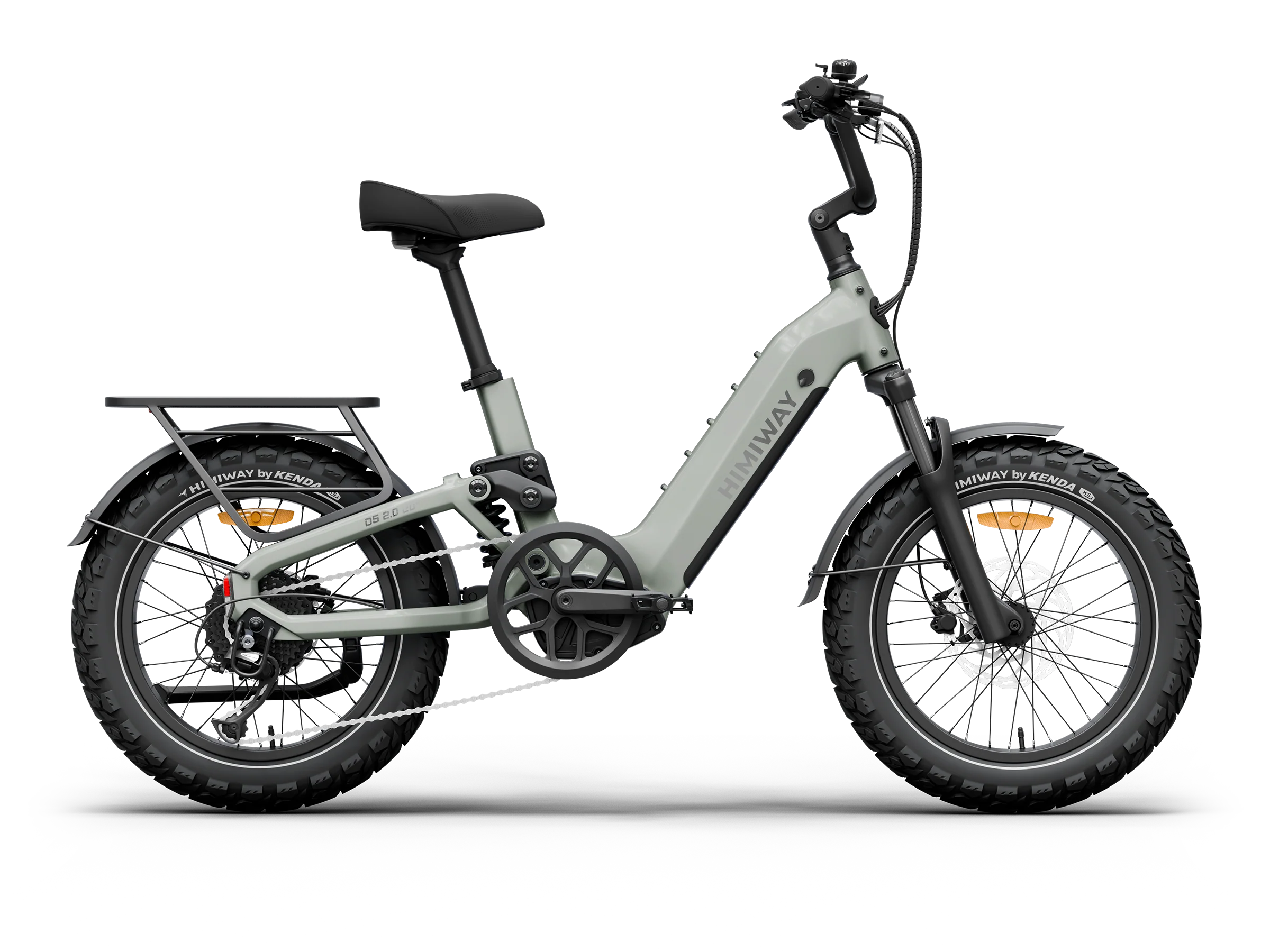

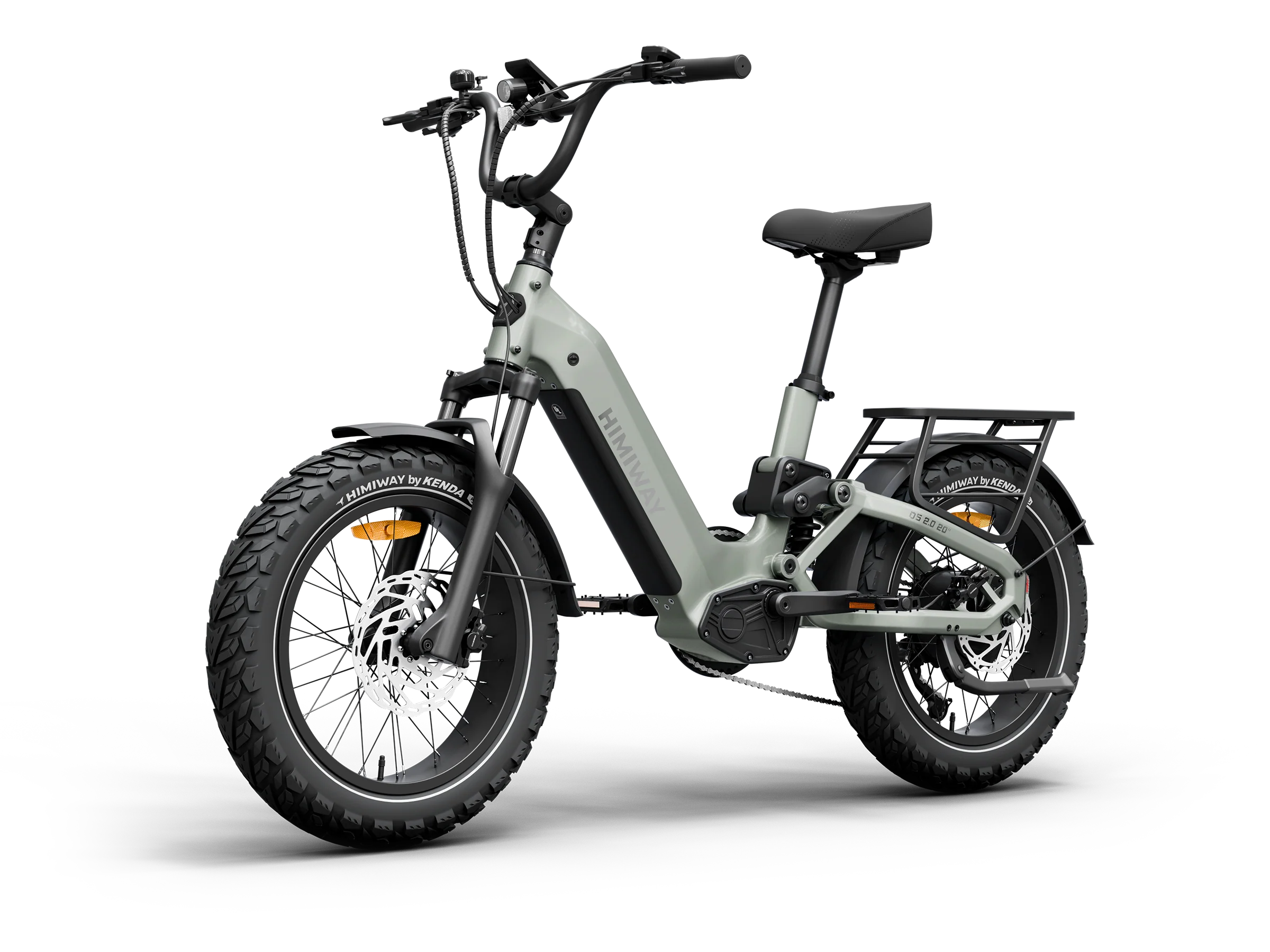

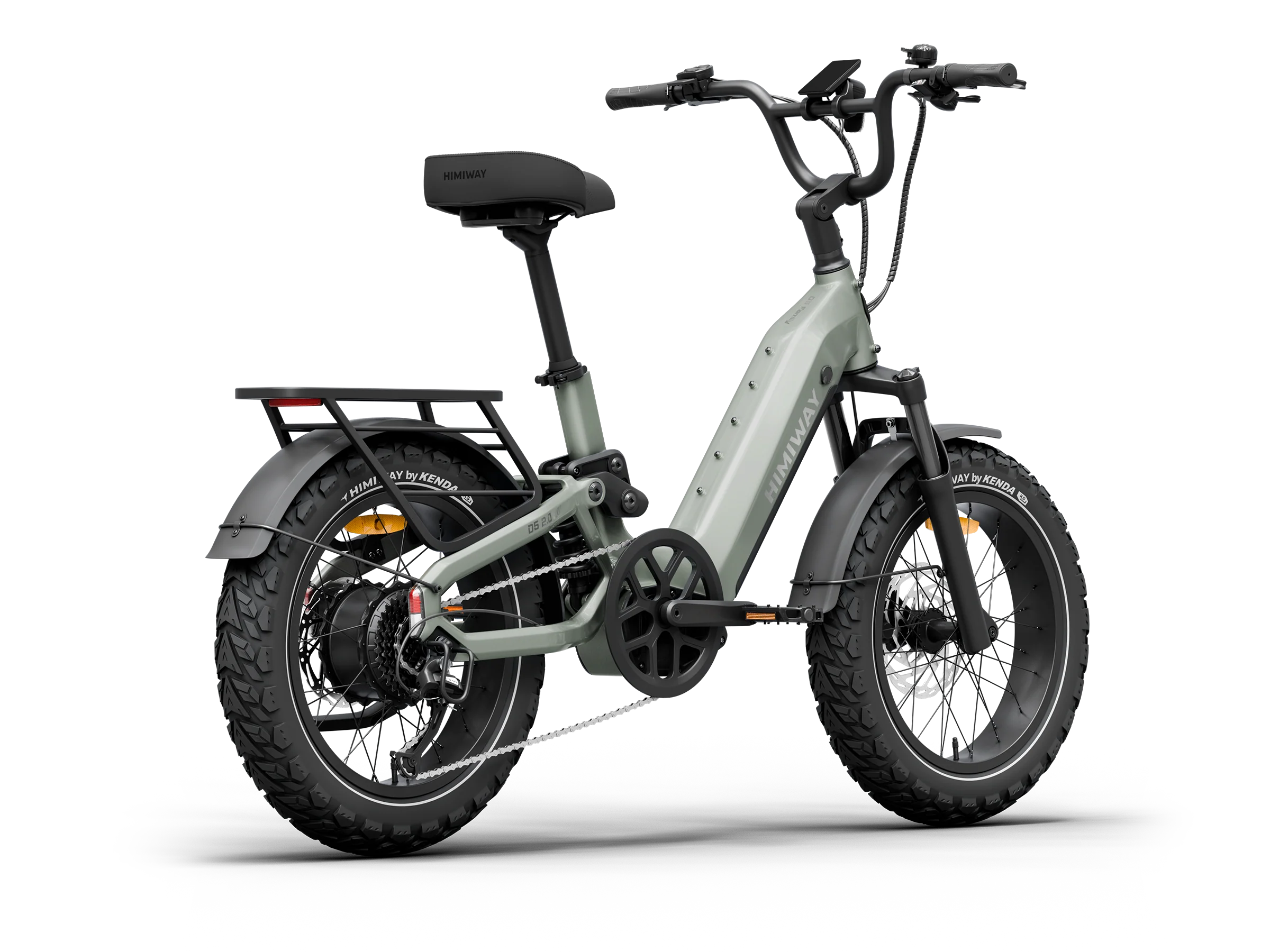

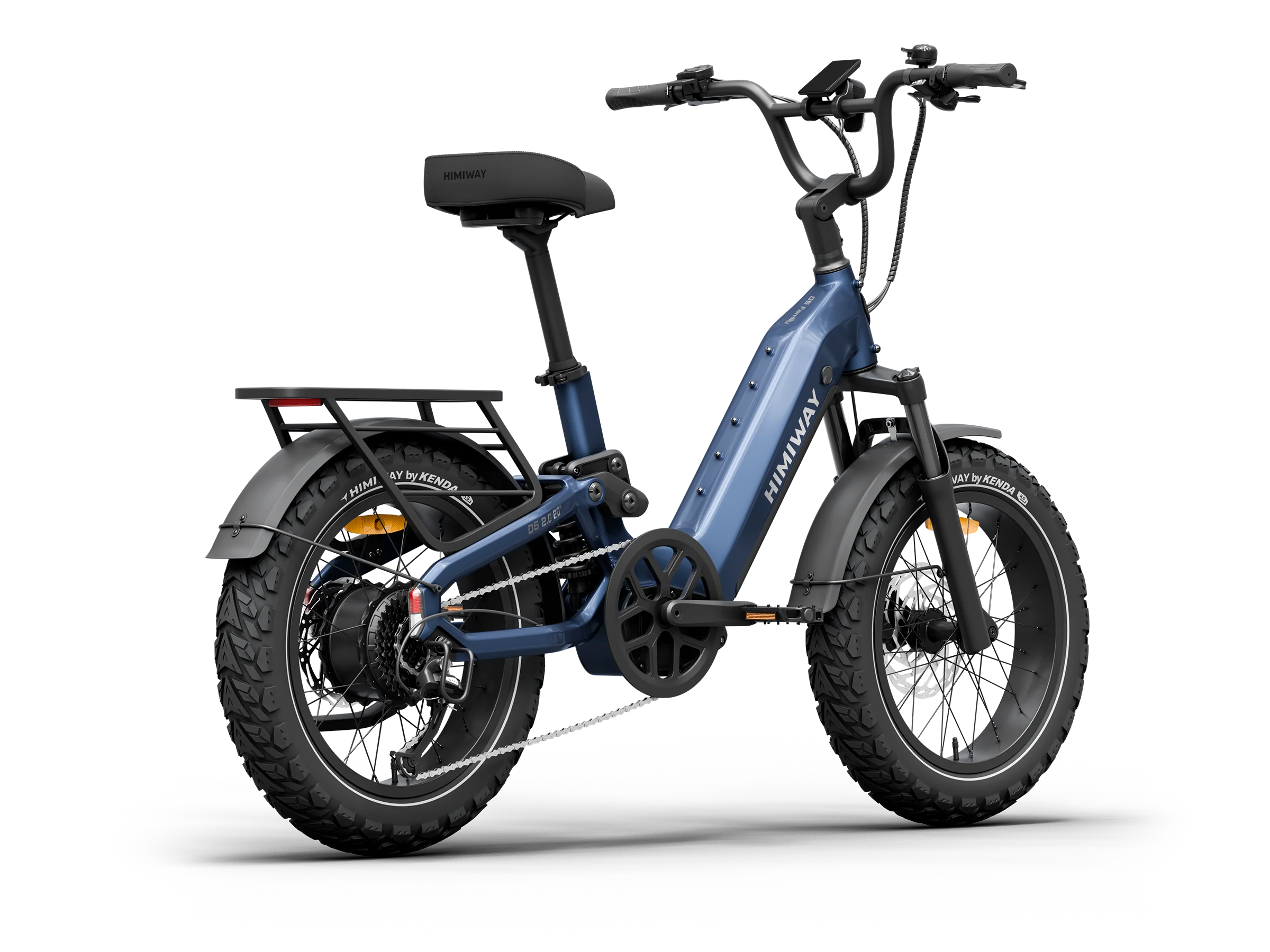

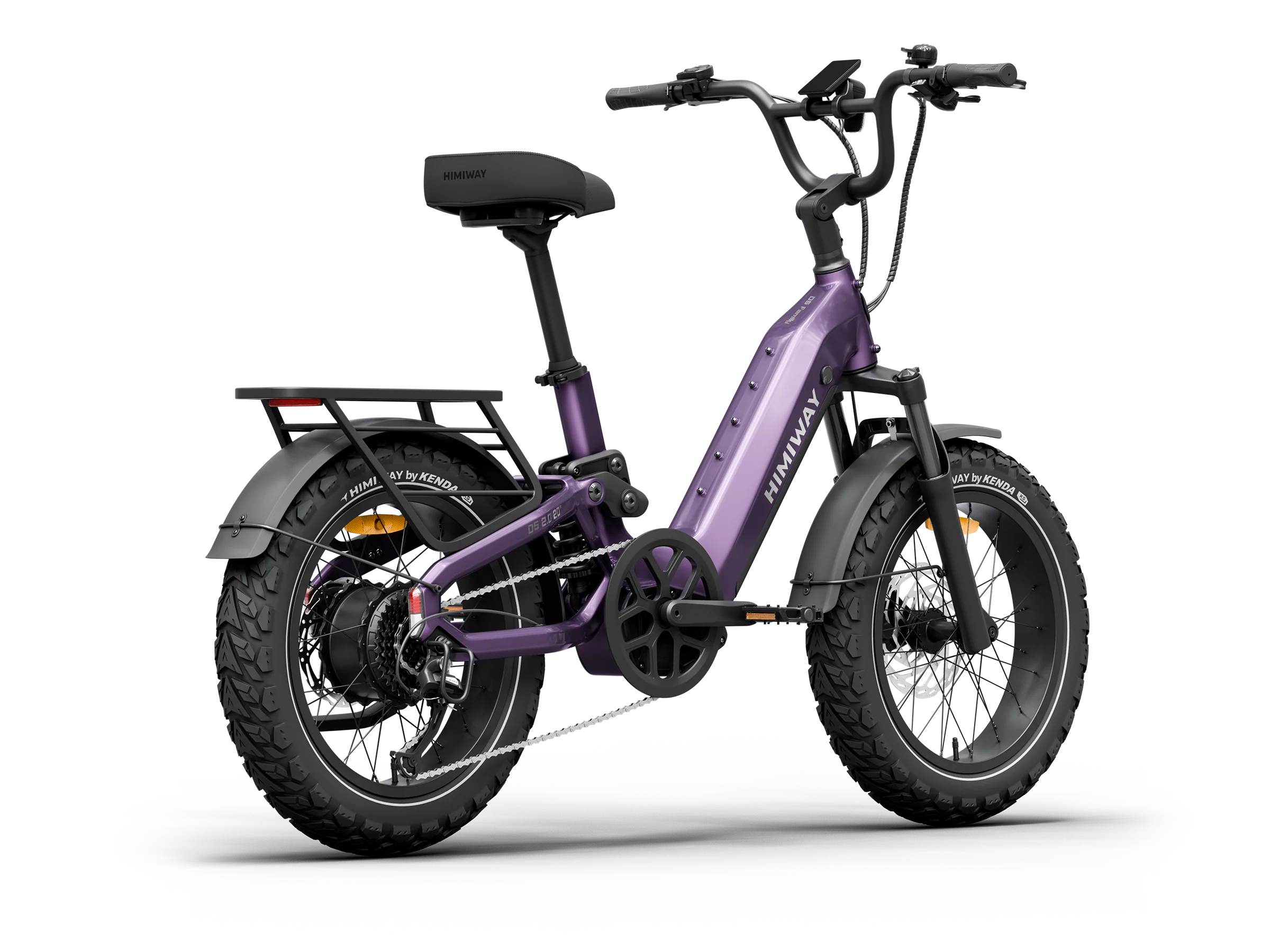

HImiway D5 2.0 20" eBike
Description
Himiway D5 2.0 20" Electric Bike – Power, Comfort, and Compact Control
The Himiway D5 2.0 20" Electric Bike is designed for riders who want powerful performance, smooth suspension, and easy maneuverability in a compact electric bike. With its 750W motor, full suspension frame, and wide 20" fat tires, this e-bike delivers exceptional comfort and control whether you're commuting through the city or exploring off-road trails.
Built for stability and confidence, the bike features a low standover height and a balanced frame design that makes mounting, riding, and stopping easier for riders of all experience levels.
Technical Specifications
Frameset
- Frame: Aluminum Alloy, Rear Wheel 100mm Travel
- Fork: Himiway Hydraulic Suspension 90mm Travel with Lock-out
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 130 Lux/800 LM High-Output Integrated LED, Adjustable Angle
- Rear light: Braking Indicator, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 11-34T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Brake: Tektro Hydraulic Disc Brake
- Rotors: 203mm Front/180mm Rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, Anti-Theft Quick Release
- Tire: 20×4.0 Kenda×Himiway, K-Shield Punch-Resistant, Reflective Sidewalls
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 60mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm, 350mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Plastic, Front and Rear Full Coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 80lbs
- Bike load capacity: 440lbs
- Rear rack load capacity: 120lbs
Certification
- Ul certification: UL 2849
Frameset
- Frame: Aluminum Alloy, Rear Wheel 100mm Travel
- Fork: Himiway Hydraulic Suspension 90mm Travel with Lock-out
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 130 Lux/800 LM High-Output Integrated LED, Adjustable Angle
- Rear light: Braking Indicator, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 11-34T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Brake: Tektro Hydraulic Disc Brake
- Rotors: 203mm Front/180mm Rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, Anti-Theft Quick Release
- Tire: 20×4.0 Kenda×Himiway, K-Shield Punch-Resistant, Reflective Sidewalls
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 60mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm, 350mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Plastic, Front and Rear Full Coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 80lbs
- Bike load capacity: 440lbs
- Rear rack load capacity: 120lbs
Certification
- Ul certification: UL 2849
Frameset
- Frame: Aluminum Alloy, Rear Wheel 100mm Travel
- Fork: Himiway Hydraulic Suspension 90mm Travel with Lock-out
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 130 Lux/800 LM High-Output Integrated LED, Adjustable Angle
- Rear light: Braking Indicator, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 11-34T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Brake: Tektro Hydraulic Disc Brake
- Rotors: 203mm Front/180mm Rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, Anti-Theft Quick Release
- Tire: 20×4.0 Kenda×Himiway, K-Shield Punch-Resistant, Reflective Sidewalls
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 60mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm, 350mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Plastic, Front and Rear Full Coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 80lbs
- Bike load capacity: 440lbs
- Rear rack load capacity: 120lbs
Certification
- Ul certification: UL 2849
Frameset
- Frame: Aluminum Alloy, Rear Wheel 100mm Travel
- Fork: Himiway Hydraulic Suspension 90mm Travel with Lock-out
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 130 Lux/800 LM High-Output Integrated LED, Adjustable Angle
- Rear light: Braking Indicator, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 11-34T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Brake: Tektro Hydraulic Disc Brake
- Rotors: 203mm Front/180mm Rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, Anti-Theft Quick Release
- Tire: 20×4.0 Kenda×Himiway, K-Shield Punch-Resistant, Reflective Sidewalls
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 60mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm, 350mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Plastic, Front and Rear Full Coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 80lbs
- Bike load capacity: 440lbs
- Rear rack load capacity: 120lbs
Certification
- Ul certification: UL 2849
Endless Comfort: Turning Rough Roads into Silk.
Size: Regular / 4'11" - 6'3"
Key Features
- Download your product manual here
What's Included in the Delivery?
Choose options
GEOMETRY
- Total Length: 70 inch
- Handlebar Height: 44 inch (0°)
- Handlebar Width: 28.3 inch
- Wheelbase: 46.5 inch
- Wheel Diameter: 23.3 inch
- Min Seat Height: 30.7 inch
- Seat adjustment height: 9 inch
- Chain Stay Length: 18.9 inch
- Frame stack: 20.6 inch
- Frame Reach: 16.8 inch
- Effective top tube: 24.3 inch
- Head Tube Length: 5.9 inch
- Head angle: 68°
- Standover Height: 16.9 inch
Recently viewed products

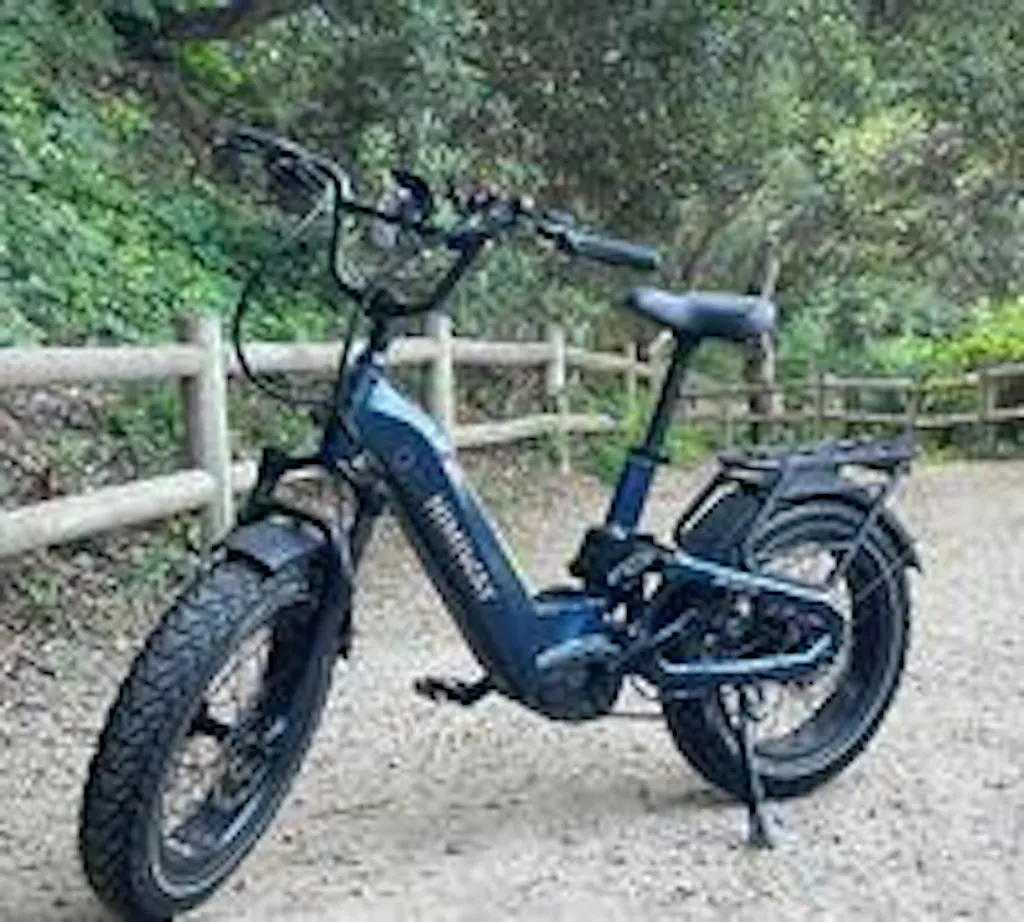

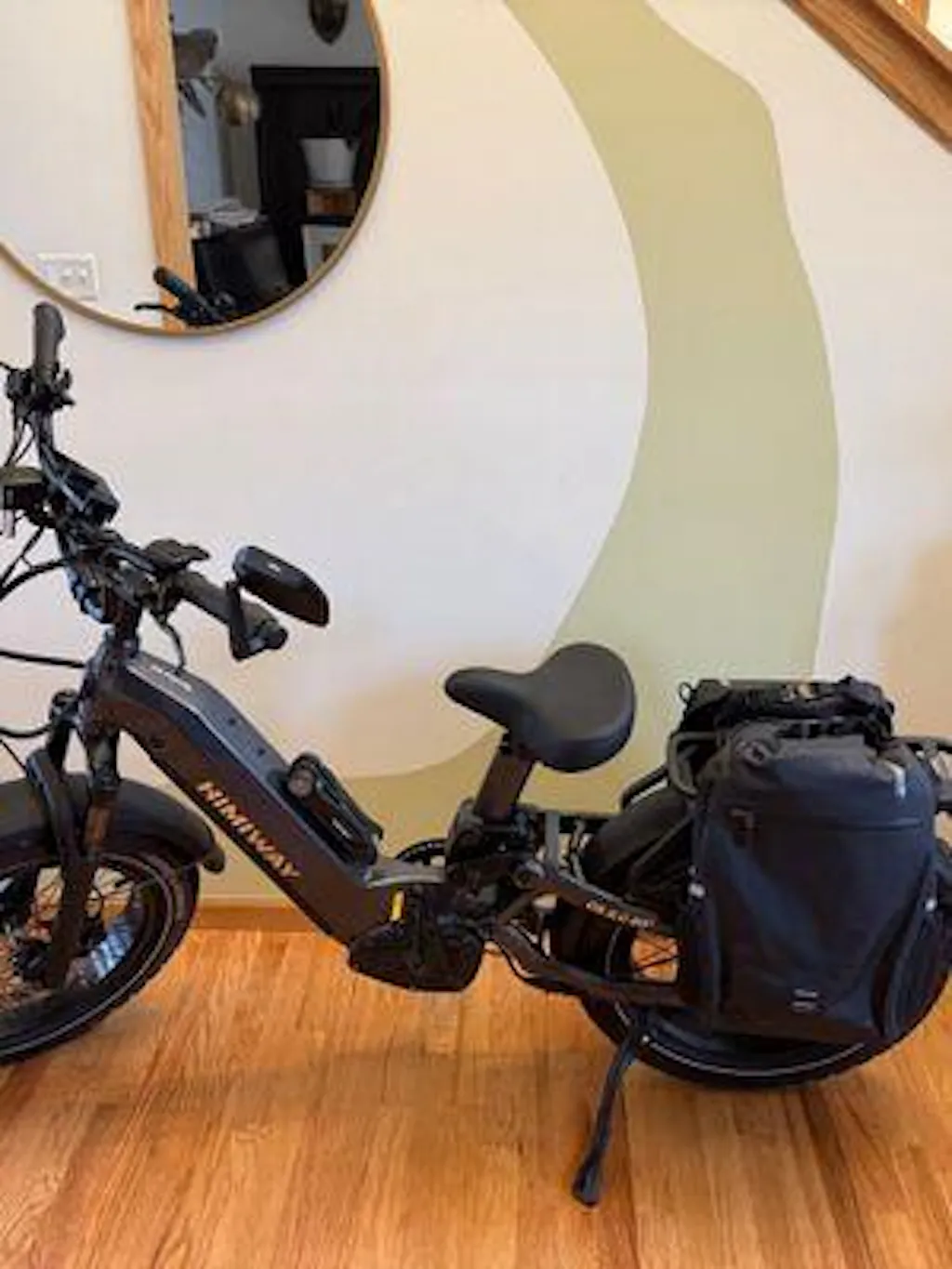

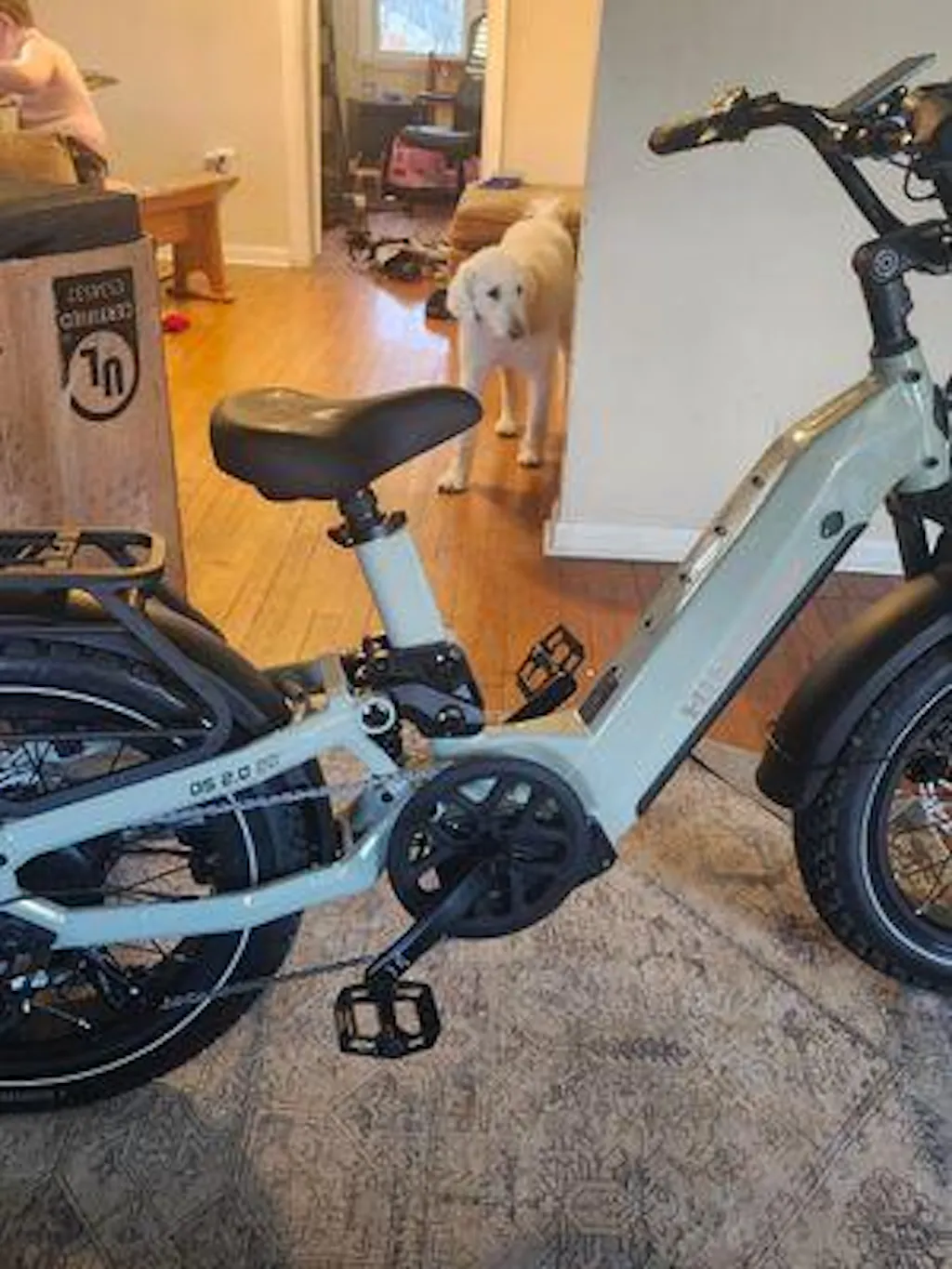

This is my second himiway ebike. The 20" is so much of an upgrade. The seat and suspension make the ride super comfortable. The automatic pedal is assist makes the ride much easier than worth about adjusting manually. The assembly was a breeze and it came packed so carefully. The 20 inch tires make getting on an off much easier than the 26 inch bikes. Can't wait for summer to get here to use it to its full potential.
Got the D5 2.0 20” for the wife’s birthday, was convinced to do so after loving the camo D5 2.0. She said mine was a little too big and we were presented with the perfect opportunity, now she’s in love! Couldn’t be happier with the product. 😎
I’ve really enjoyed getting a feel for this new bike! It’s quick and agile. It’s much less intimidating than a Cruiser or Step-thru.
This is the third Himiway bike that I have ordered. Really happy with the model. Avery smooth ride with the full suspension, quiet, and very comfortable factory seat. Packaging has also been upgraded to protect everything during shipping. The only issue I had was the front axle nut was stripped. I ordered a quick release axle from Amazon and am good to go. I would suggest a quick release axle be standard from the factory.
This is my second Himiway bike and I have ridden over 100 miles since receiving my bike in February 2026. Unboxing and assembly was well under 1 hour, and delivery was 1 day after I was notified that my package was on its way. In looks this bike is much more refined than my D3 Cruiser Step Thru I purchased in 2020 (I still love that bike). It feels to be about the same weight but the center of gravity is much lower thanks to the smaller tire diameter and shorter wheel base. It is easy to get on and off and the ride is smooth with the dual suspension, which comes in handy when I encounter a pot hole or cross the railroad tracks. The seat is probably the most comfortable I have ever had for a bike. I have ridden on city streets, bike paths and a bit of packed trails, the treads on the tires grip very well. The thumb throttle is much different than the motorcycle style grip throttle of my D3 but I got used to it very quickly, and it's not jerky when used after a hard stop. I was happy to see that this paint finish (Midnight Blue) isn't flat or matte, there are some sparkles in there! I am extremely satisified with this model and have made it my main commuter bike.
