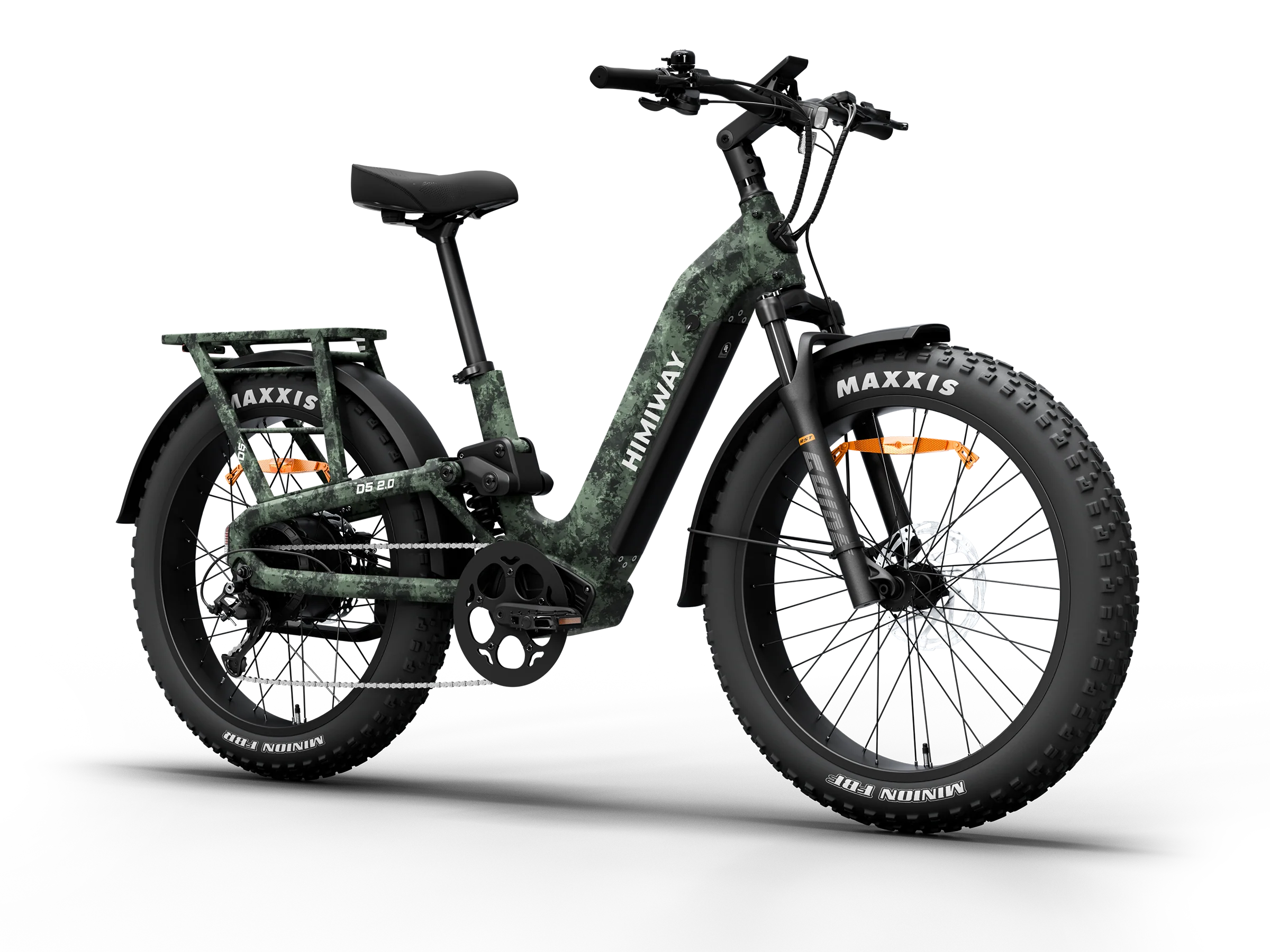

Himiway D5 2.0
Description

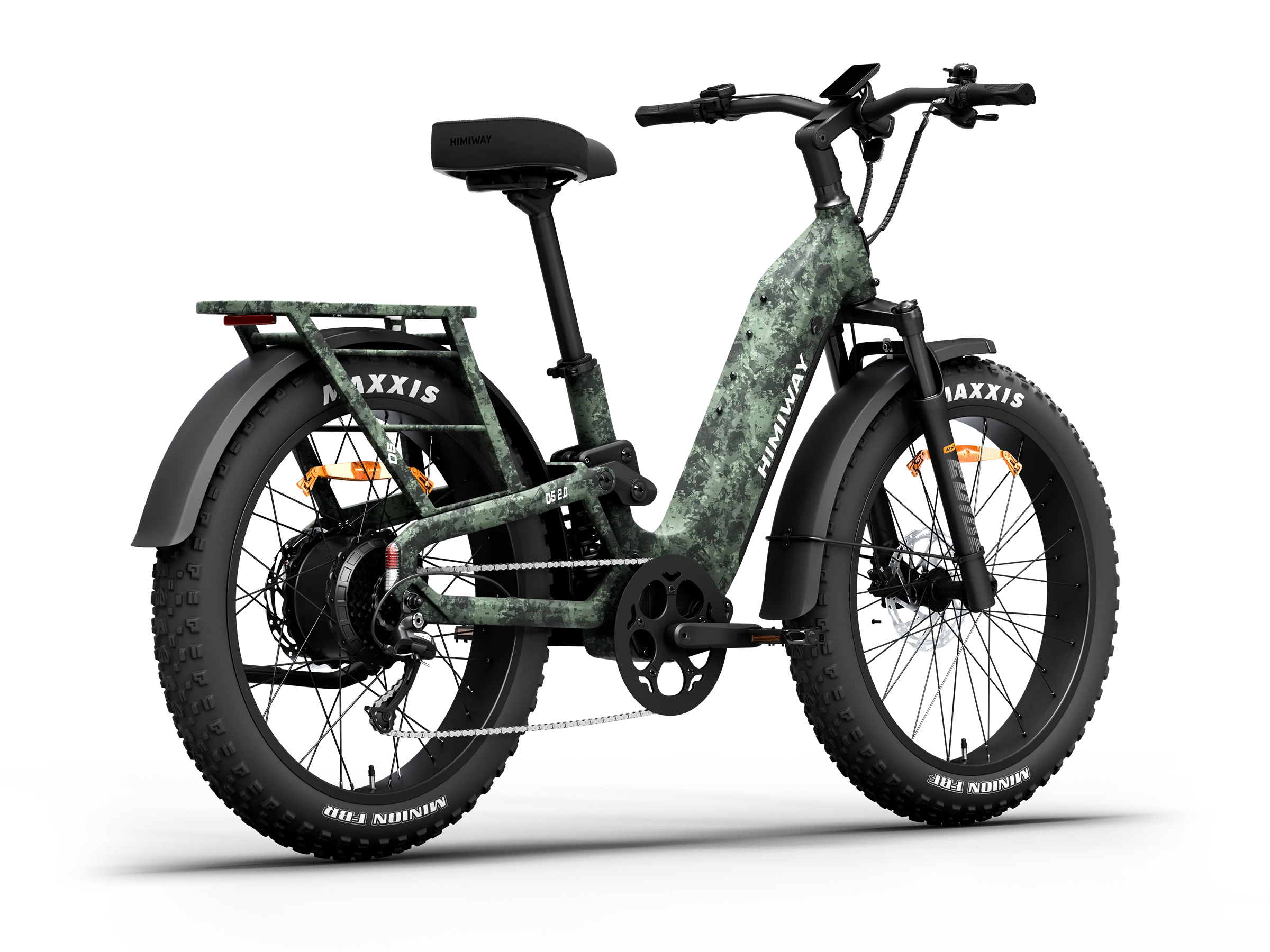

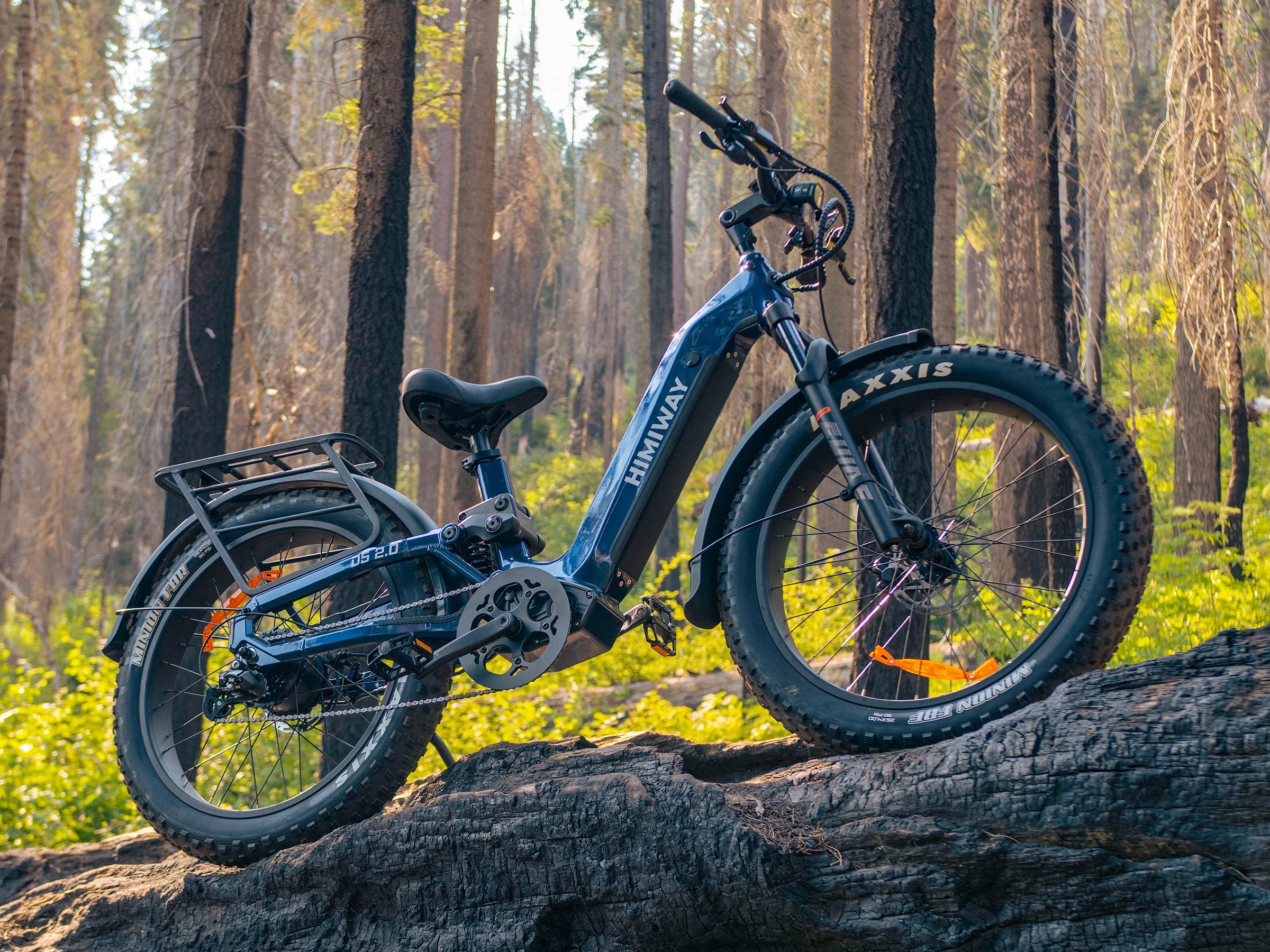

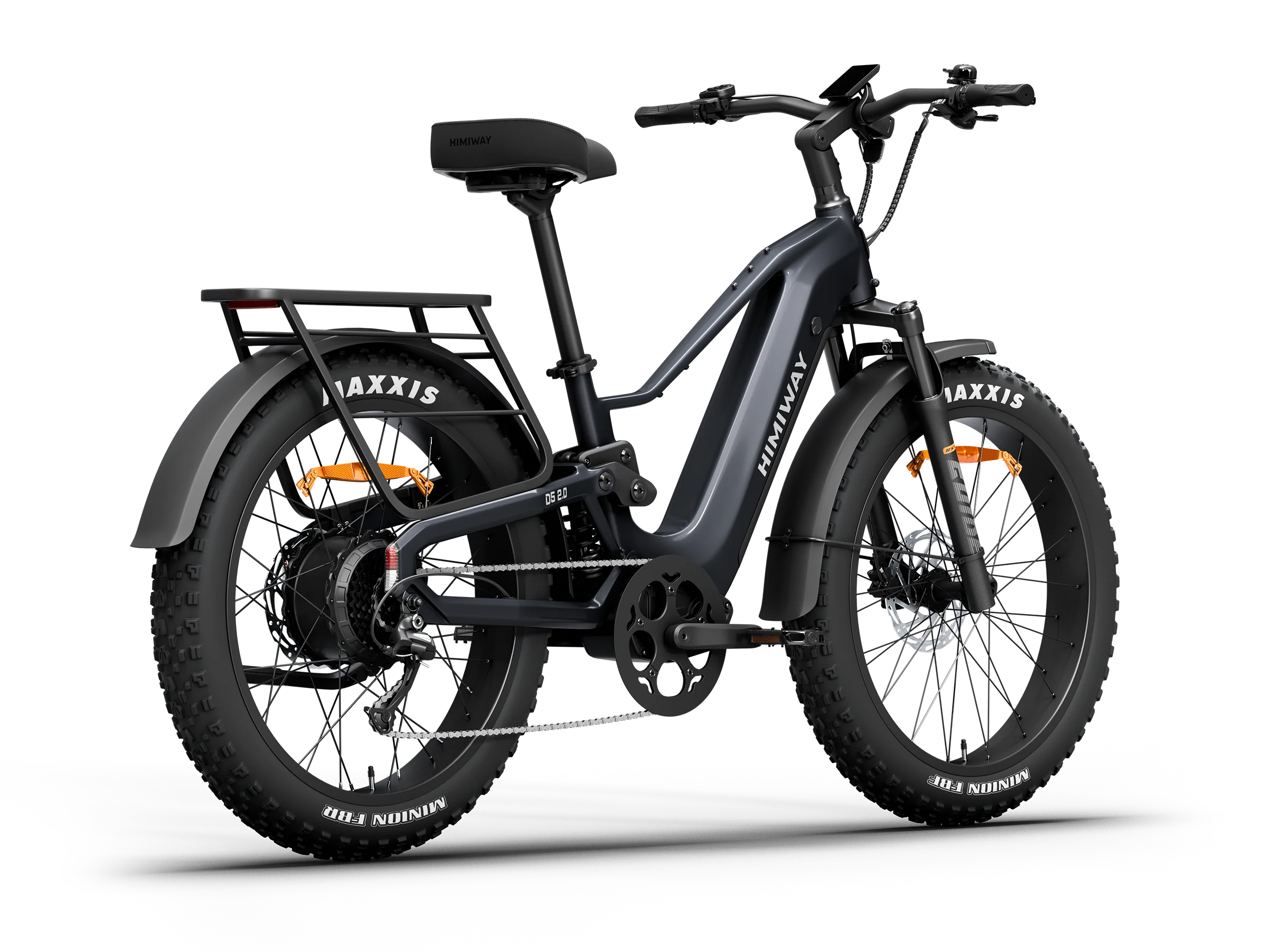

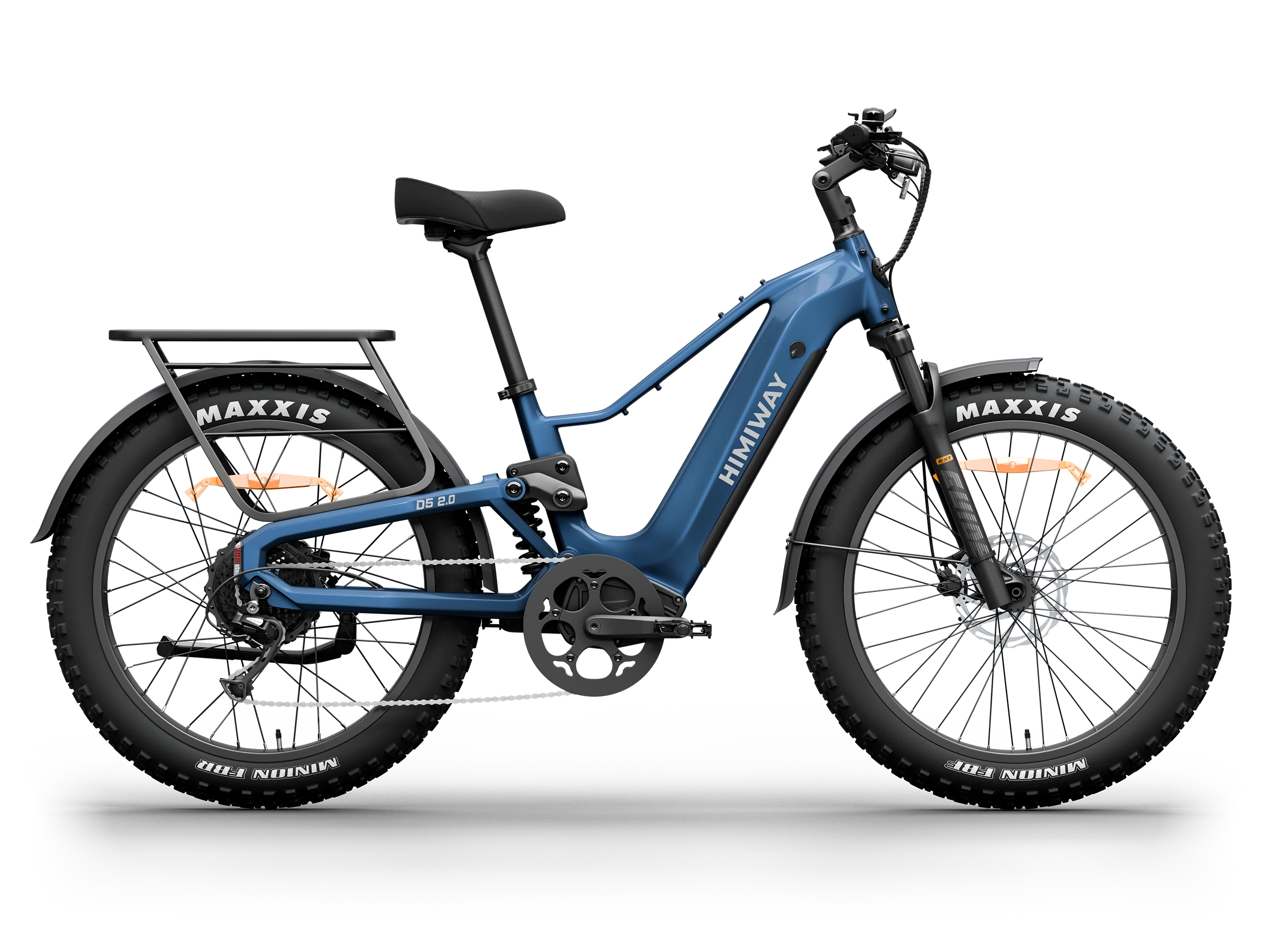

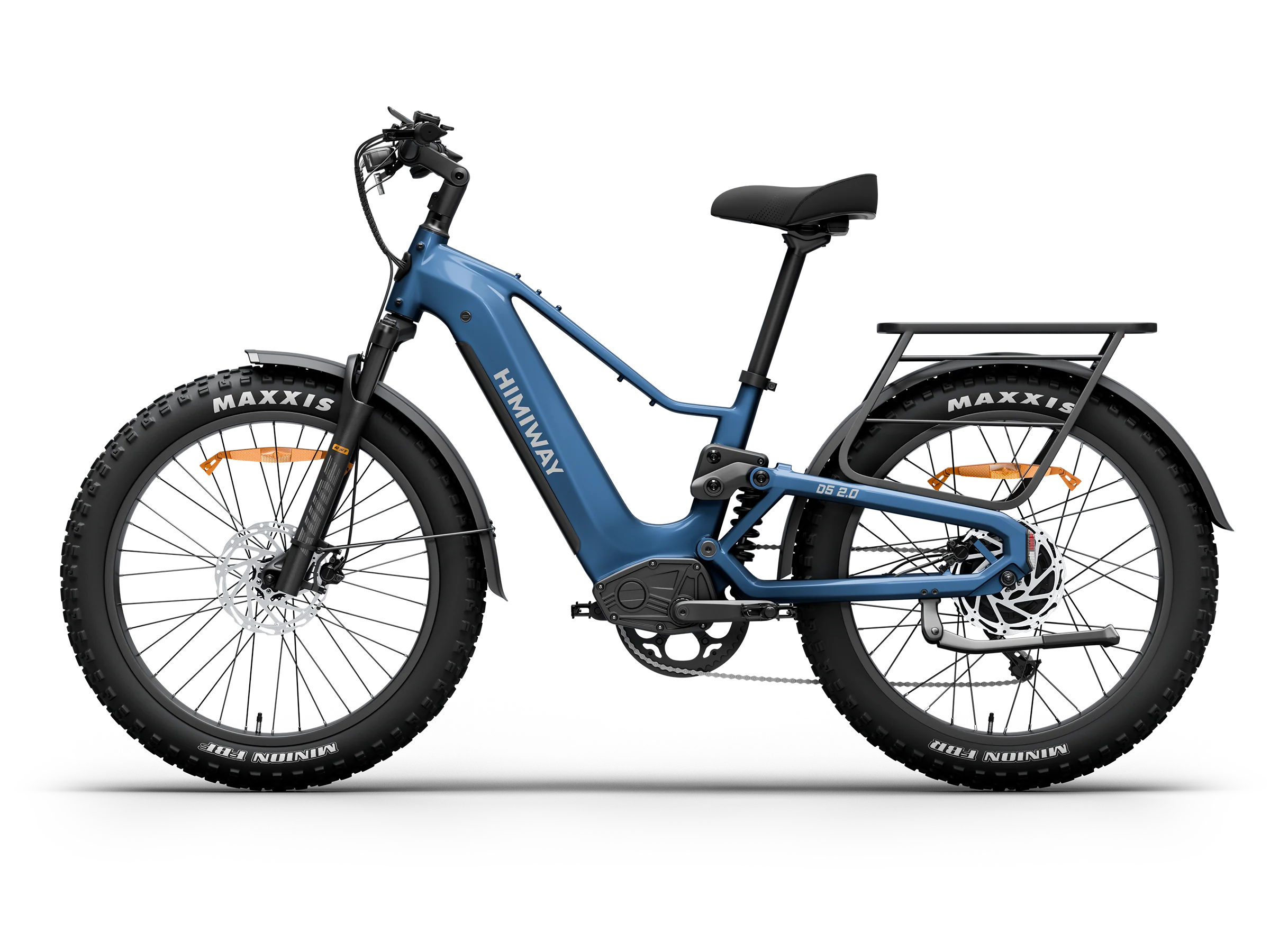

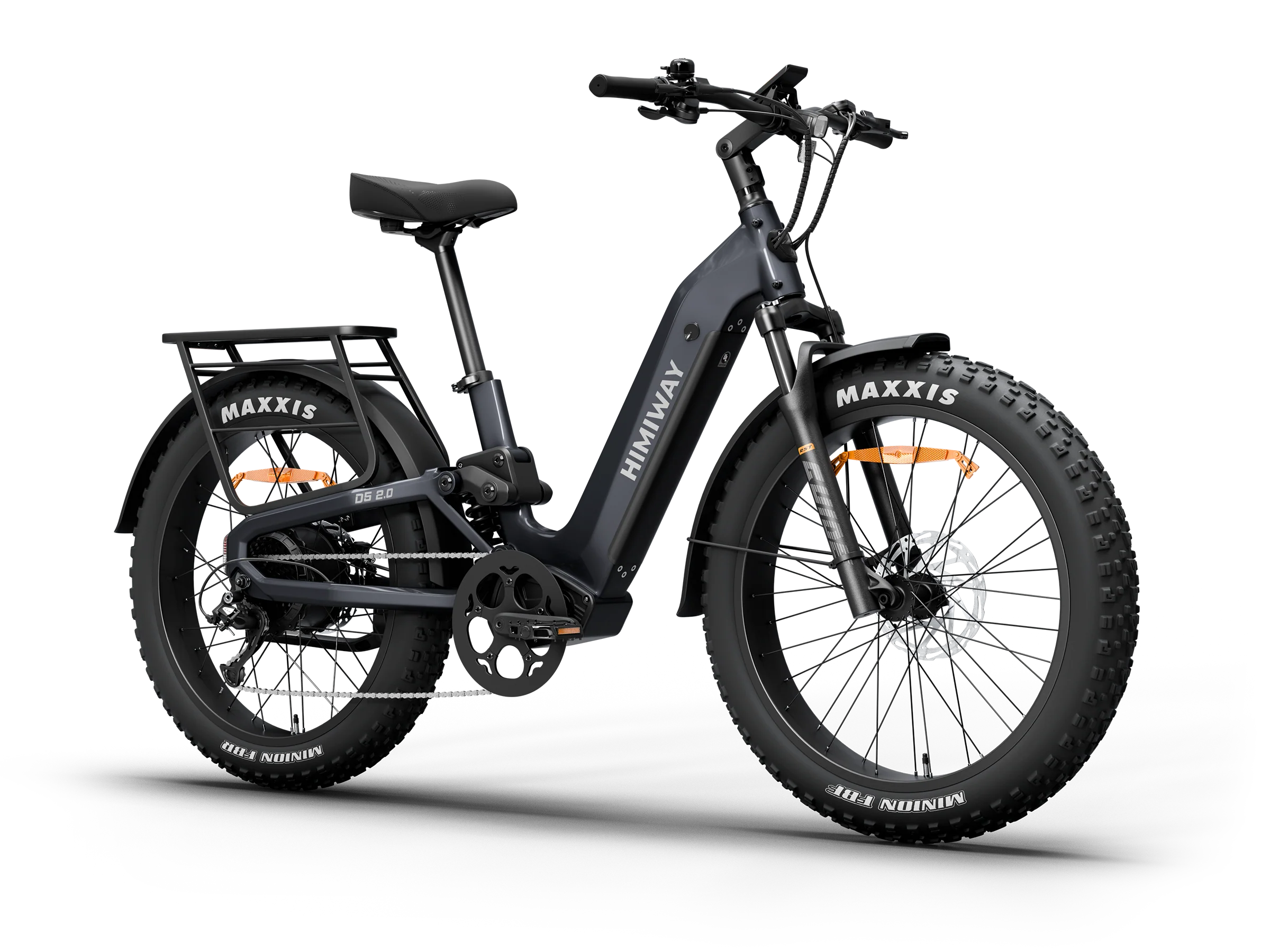

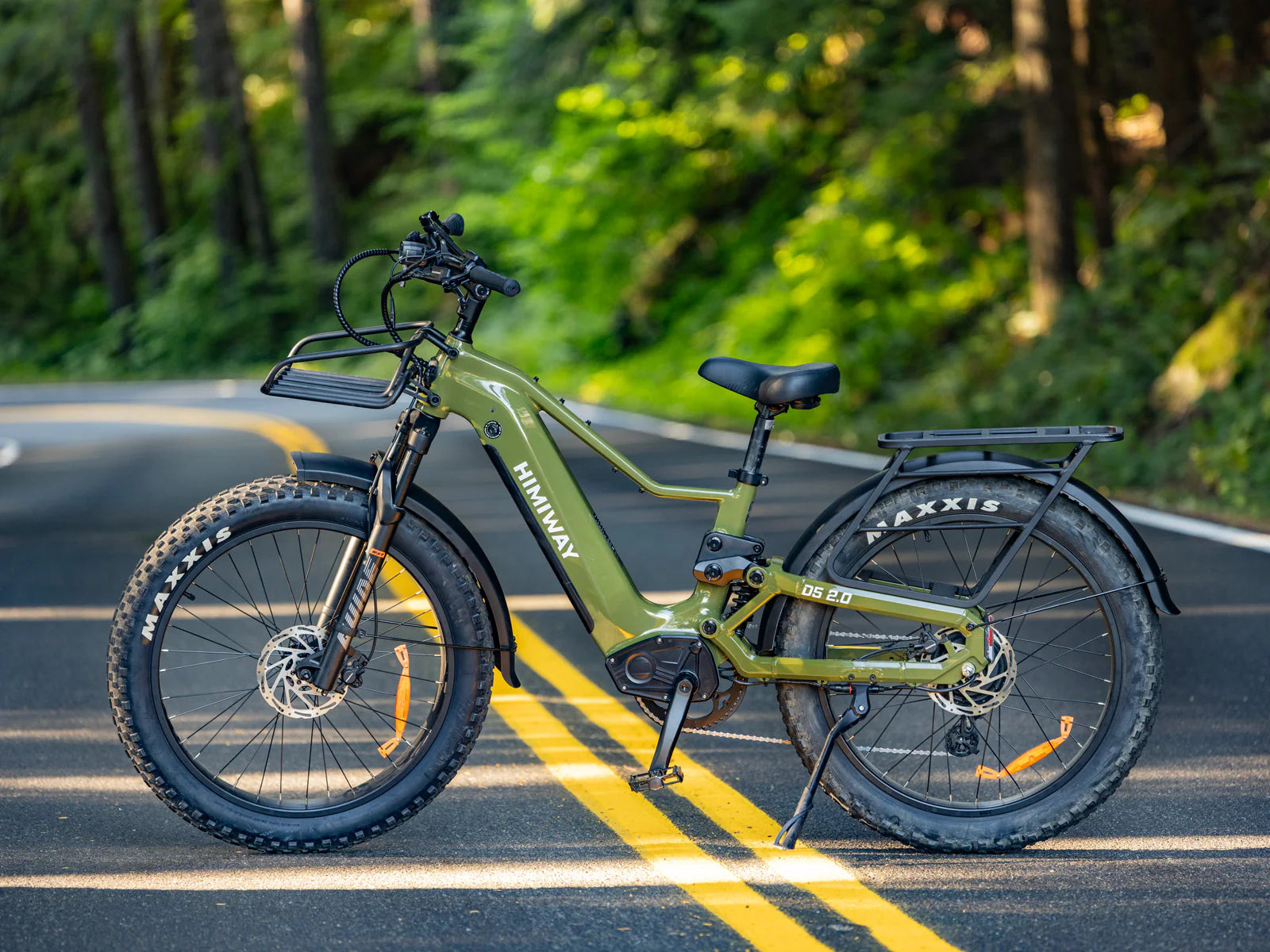

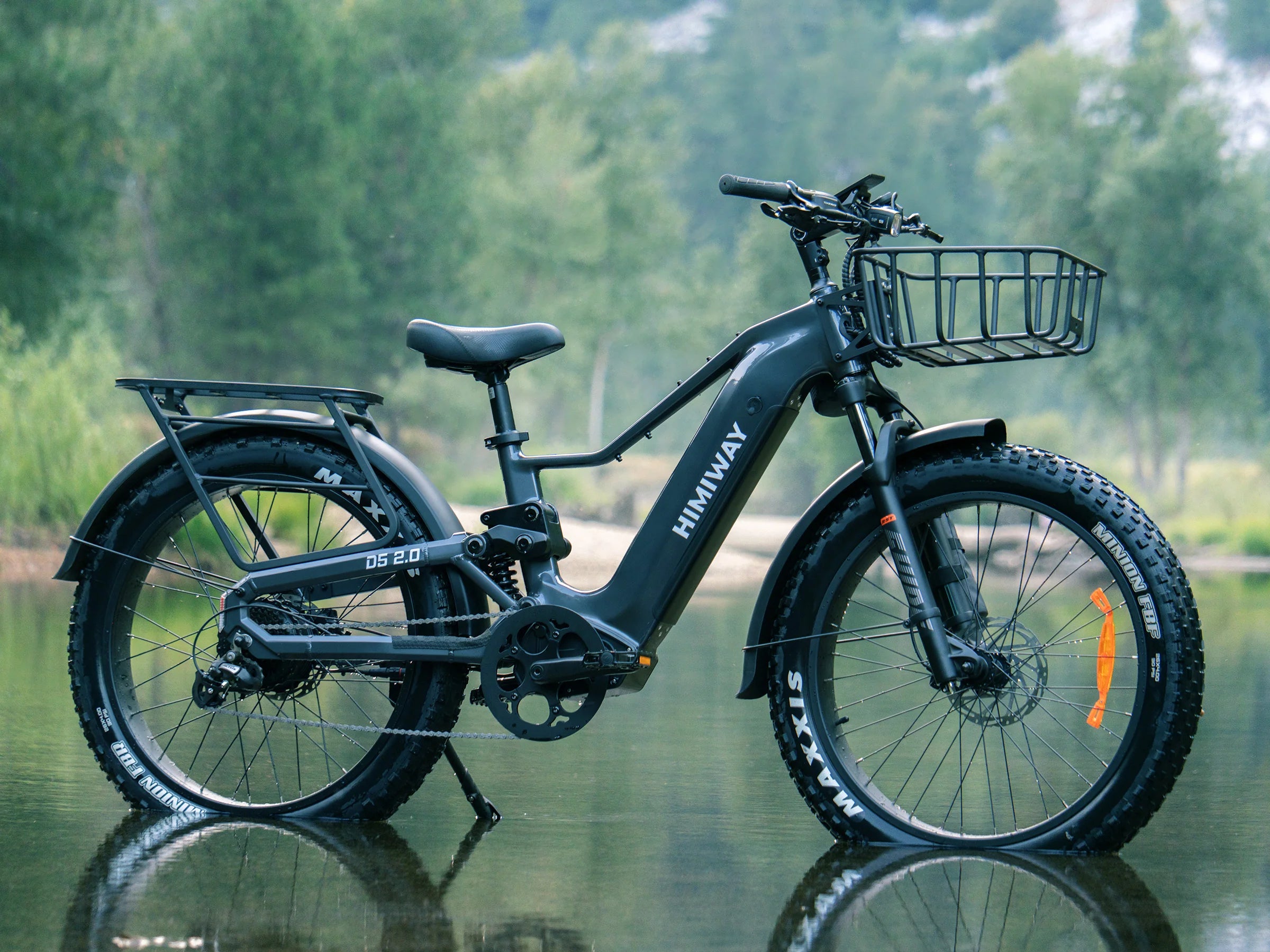

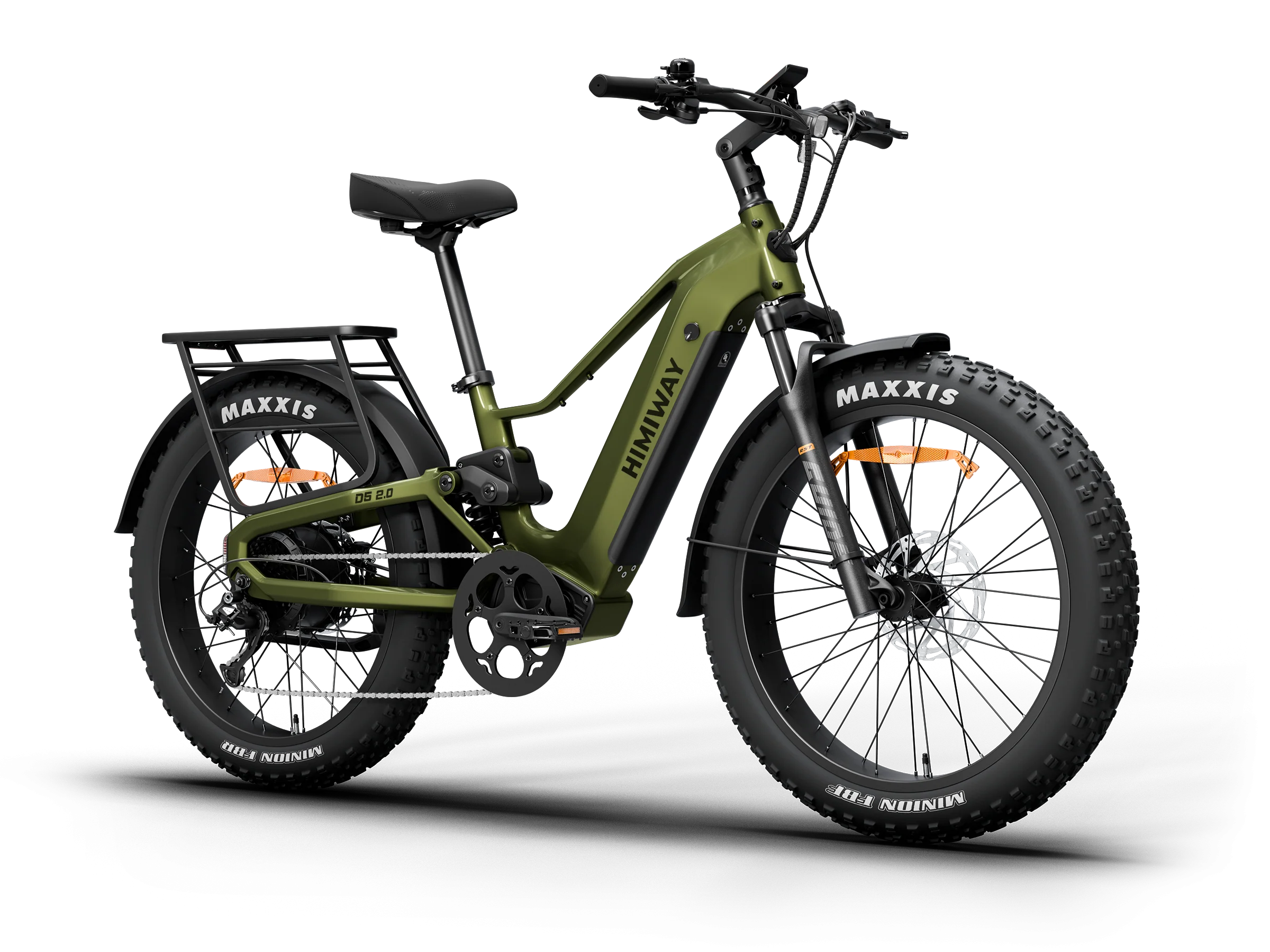

Himiway D5 2.0 Step-Thru Fat Tire Electric Bike – 750W All-Terrain eBike
The Himiway D5 2.0 Electric Bike is a powerful 750W fat tire electric bike built for riders who want comfort, durability, and all-terrain performance. Designed with a convenient frame, this electric bike allows easy mounting while maintaining the strength needed for rugged rides.
Equipped with 26” x 4” fat tires and a full suspension system, the D5 delivers exceptional traction and stability on trails, gravel, sand, snow, and city roads. The high-torque motor provides strong acceleration and reliable hill-climbing power, making it ideal for both commuting and outdoor adventures.
A long-range removable battery and advanced pedal-assist system help riders travel farther with less effort. Whether you're exploring off-road paths or navigating urban streets, the Himiway D5 Step-Thru combines power, comfort, and versatility in one premium electric bike.
Key Features
- 750W high-torque motor for powerful performance
- Full suspension system for smooth rides on rough terrain
- 26” x 4” fat tires for all-terrain traction

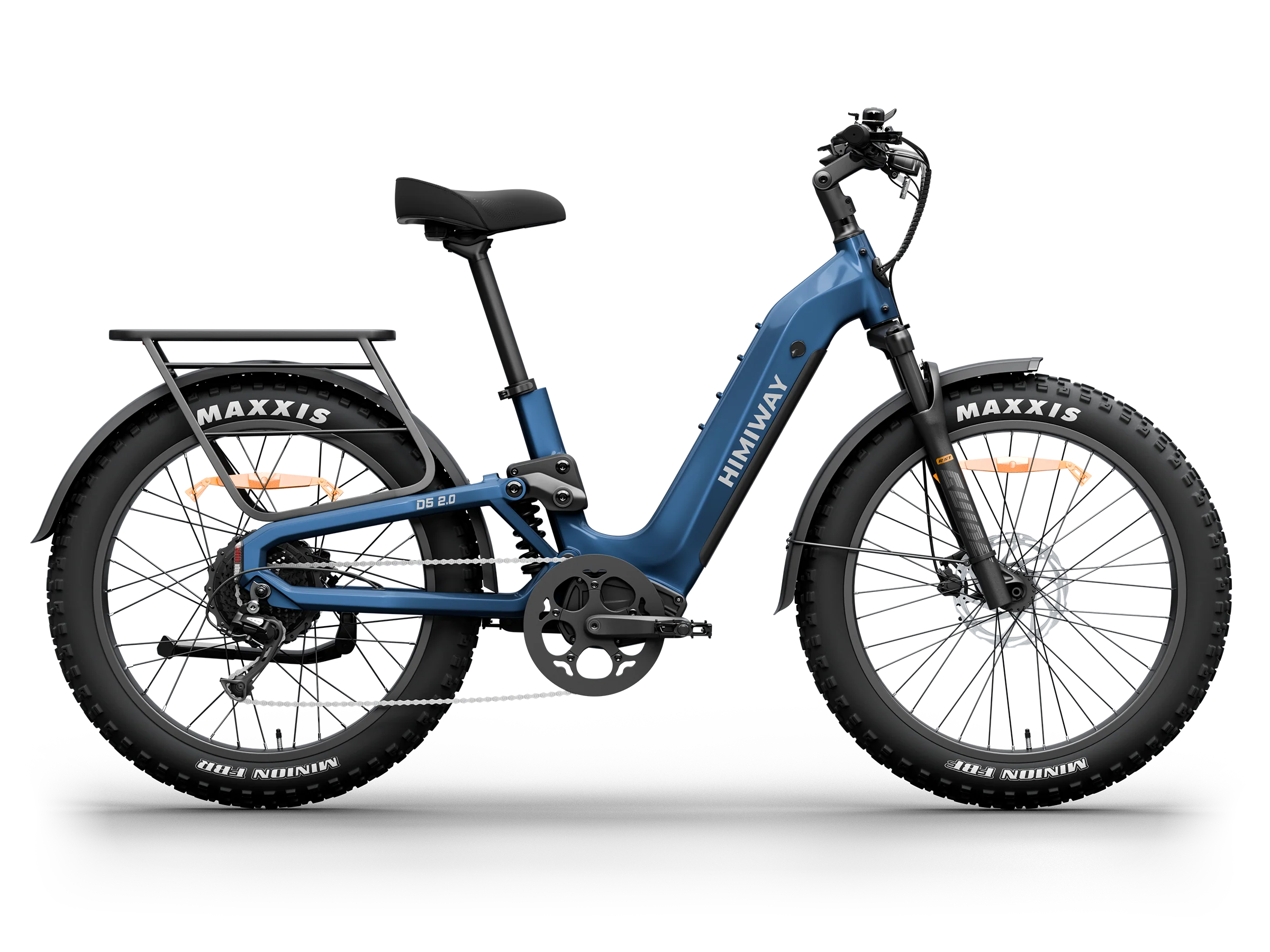

- Step-thru frame for easy mounting and accessibility
- Long-range removable battery for extended rides
- Durable design built for trails, commuting, and adventure
Technical Specifications
Frameset
- Frame: Aluminum Alloy, Rear Wheel 130mm Travel
- Fork: RST Hydraulic suspension 100mm travel with Lock-out, Nutted, Rebound adjustable
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger: 48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 120 Lux high-output integrated LED, adjustable angle
- Rear light: Braking Indicator, turn signal, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 13-32T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Rear brake: Tektro HD-E3520 Hydraulic Disc Brake
- Rotors: 180mm front and rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, nutted
- Tire: Maxxis Minion FBF / FBR 26 x 4.0, Tubeless ready
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 680mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 90mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Aluminum Alloy, front and rear full coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 92lbs
- Bike load capacity: 400lbs
- Rear rack load capacity: 60lbs
Certification
- Ul certification: UL 2849
Frameset
- Frame: Aluminum Alloy, Rear Wheel 130mm Travel
- Fork: RST Hydraulic suspension 100mm travel with Lock-out, Nutted, Rebound adjustable
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger: 48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 120 Lux high-output integrated LED, adjustable angle
- Rear light: Braking Indicator, turn signal, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 13-32T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Rear brake: Tektro HD-E3520 Hydraulic Disc Brake
- Rotors: 180mm front and rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, nutted
- Tire: Maxxis Minion FBF / FBR 26 x 4.0, Tubeless ready
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 680mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 90mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Aluminum Alloy, front and rear full coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 92lbs
- Bike load capacity: 400lbs
- Rear rack load capacity: 60lbs
Certification
- Ul certification: UL 2849
Frameset
- Frame: Aluminum Alloy, Rear Wheel 130mm Travel
- Fork: RST Hydraulic suspension 100mm travel with Lock-out, Nutted, Rebound adjustable
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger: 48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 120 Lux high-output integrated LED, adjustable angle
- Rear light: Braking Indicator, turn signal, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 13-32T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Rear brake: Tektro HD-E3520 Hydraulic Disc Brake
- Rotors: 180mm front and rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, nutted
- Tire: Maxxis Minion FBF / FBR 26 x 4.0, Tubeless ready
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 680mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 90mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Aluminum Alloy, front and rear full coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 92lbs
- Bike load capacity: 400lbs
- Rear rack load capacity: 60lbs
Certification
- Ul certification: UL 2849
Frameset
- Frame: Aluminum Alloy, Rear Wheel 130mm Travel
- Fork: RST Hydraulic suspension 100mm travel with Lock-out, Nutted, Rebound adjustable
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger: 48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 120 Lux high-output integrated LED, adjustable angle
- Rear light: Braking Indicator, turn signal, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 13-32T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Rear brake: Tektro HD-E3520 Hydraulic Disc Brake
- Rotors: 180mm front and rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, nutted
- Tire: Maxxis Minion FBF / FBR 26 x 4.0, Tubeless ready
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 680mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 90mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Aluminum Alloy, front and rear full coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 92lbs
- Bike load capacity: 400lbs
- Rear rack load capacity: 60lbs
Certification
- Ul certification: UL 2849
Frameset
- Frame: Aluminum Alloy, Rear Wheel 130mm Travel
- Fork: RST Hydraulic suspension 100mm travel with Lock-out, Nutted, Rebound adjustable
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger: 48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 120 Lux high-output integrated LED, adjustable angle
- Rear light: Braking Indicator, turn signal, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 13-32T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Rear brake: Tektro HD-E3520 Hydraulic Disc Brake
- Rotors: 180mm front and rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, nutted
- Tire: Maxxis Minion FBF / FBR 26 x 4.0, Tubeless ready
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 680mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 90mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Aluminum Alloy, front and rear full coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 92lbs
- Bike load capacity: 400lbs
- Rear rack load capacity: 60lbs
Certification
- Ul certification: UL 2849
Frameset
- Frame: Aluminum Alloy, Rear Wheel 130mm Travel
- Fork: RST Hydraulic suspension 100mm travel with Lock-out, Nutted, Rebound adjustable
Electronics
- Motor: 48V, 750W, 90Nm
- Battery: 48V, 15Ah , IPX6, Certificated by UL 2271
- Cell: Samsung/LG 21700 cell, Certificated by UL 2580
- Charger: 48V, 3.0A Fast Charger
- Display: 3.5" Full color, High brightness, Bluetooth, Adjustable angle
- Sensor: Torque / Cadence Switchable
- Throttle: Ergonomic Thumb Throttle
- Pedal assist: Auto Pedal Assistant + 5 PAS Levels
- Walk mode: 1.9~3.7 MPH
- Front light: 120 Lux high-output integrated LED, adjustable angle
- Rear light: Braking Indicator, turn signal, rear light steady/flash, integrated with the frame
- Waterproof rating: IPX5 (whole bike), IPX6 (battery)
Speed & Range
- Max speed (default): 20 MPH
- Max speed adjustable range: 4~28 MPH
- Class: 1/2/3
- Throttle range: 40 Miles
- Pedal assist range: 70 Miles
Drivetrain
- Chainrings: 52T Narrow Wide Chainring
- Crankset: Aluminum Alloy, 170mm
- Freewheel: 8-speed, 13-32T
- Rear derailleur: SHIMANO 8-speed
- Shift lever: SHIMANO 8-speed
- Chain: 8-speed
Brake
- Rear brake: Tektro HD-E3520 Hydraulic Disc Brake
- Rotors: 180mm front and rear
- Brake levers: Aluminum Alloy, with power cutoff
Wheel
- Rims: Aluminum alloy
- Front hub: Aluminum alloy, nutted
- Tire: Maxxis Minion FBF / FBR 26 x 4.0, Tubeless ready
Cockpit
- Handlebar: Aluminum Alloy, Φ31.8mm, 680mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0-60° Adjustable, Aluminum Alloy, Φ31.8mm, 90mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum Alloy, Φ33.9mm
- Clamp: Aluminum Alloy, quick release
Supports
- Fenders: Aluminum Alloy, front and rear full coverage
- Rear rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum Alloy, included, rear mount
Weight & Load
- Bike weight: 92lbs
- Bike load capacity: 400lbs
- Rear rack load capacity: 60lbs
Certification
- Ul certification: UL 2849
Key Features

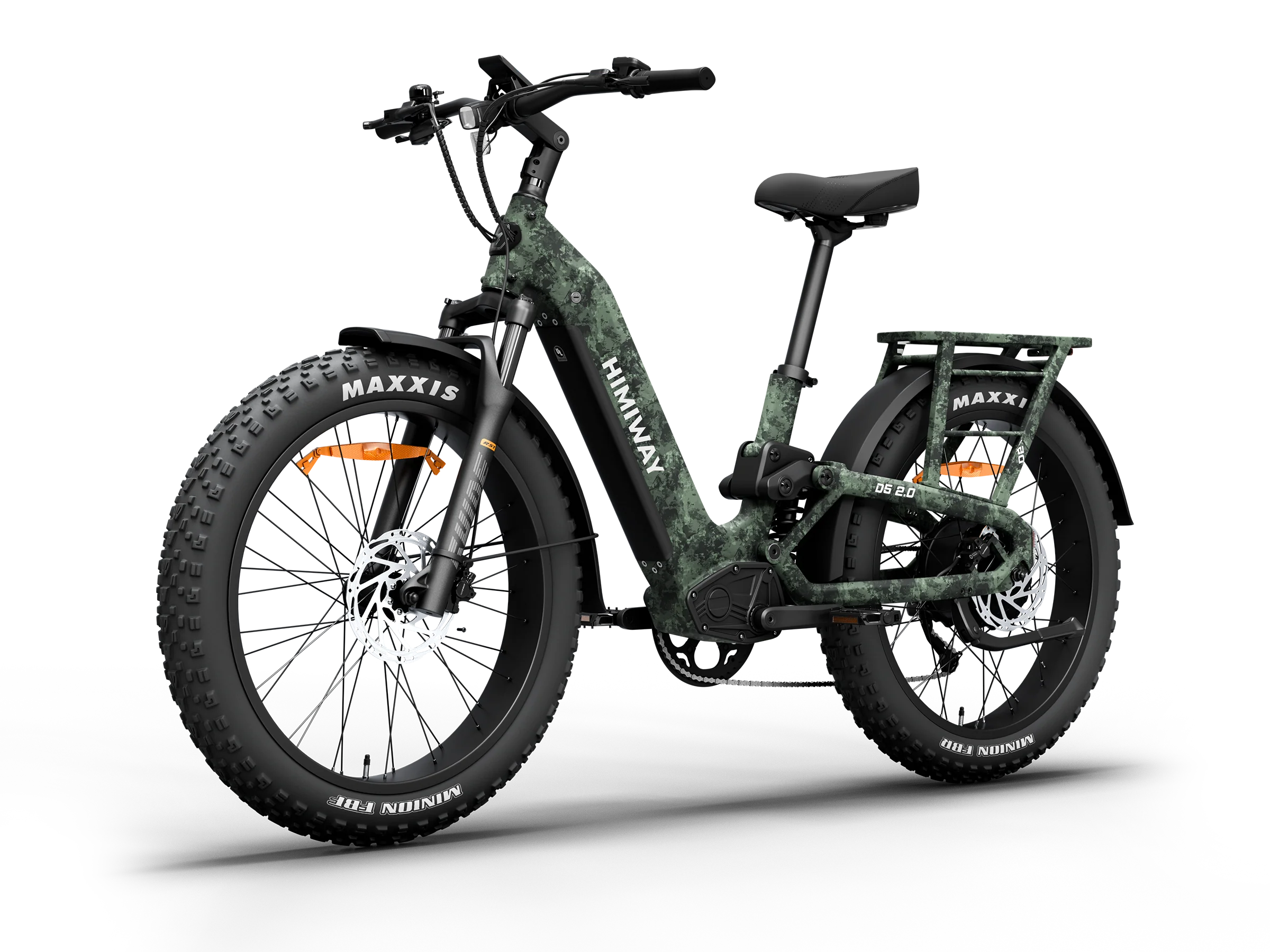

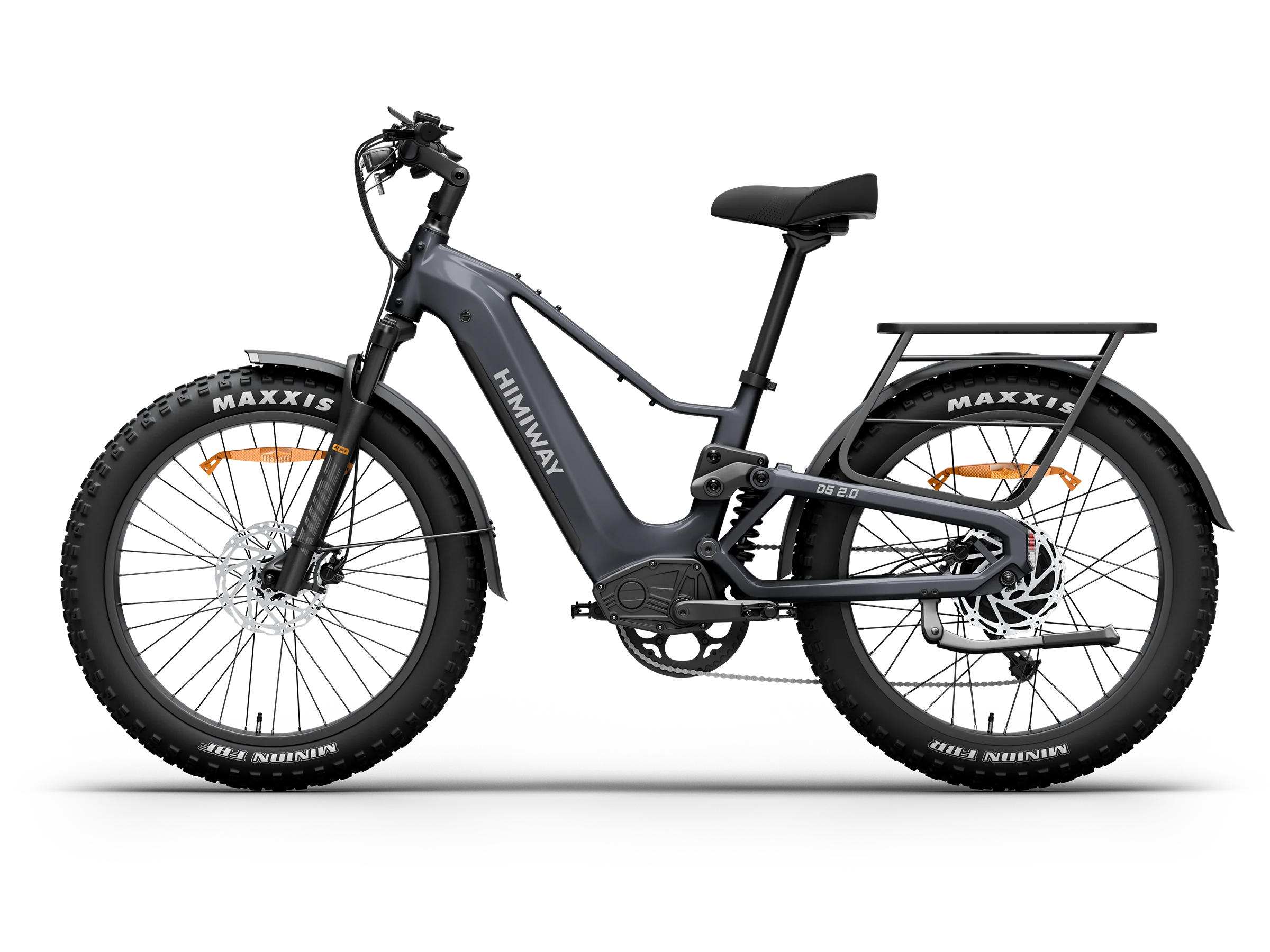

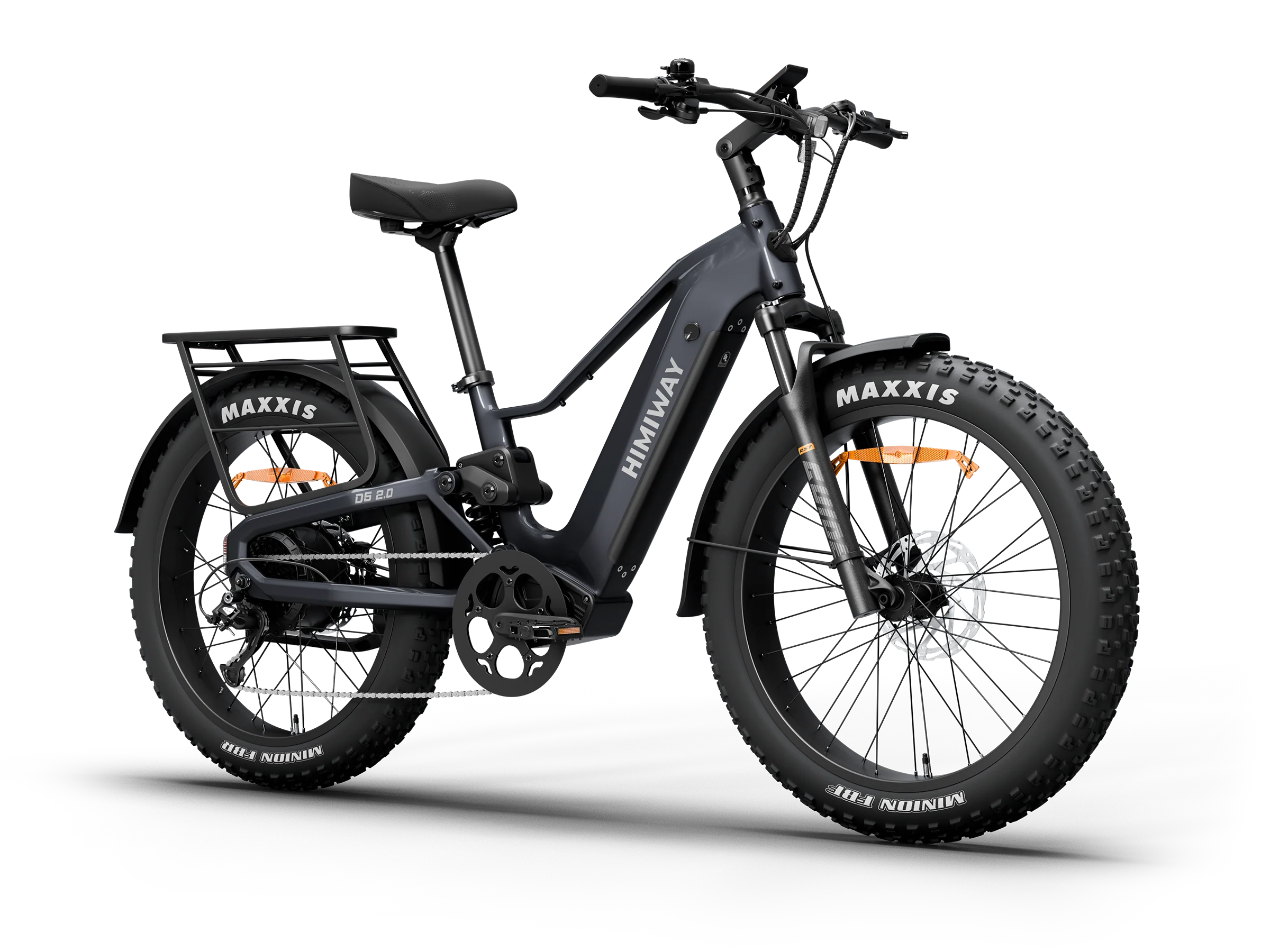

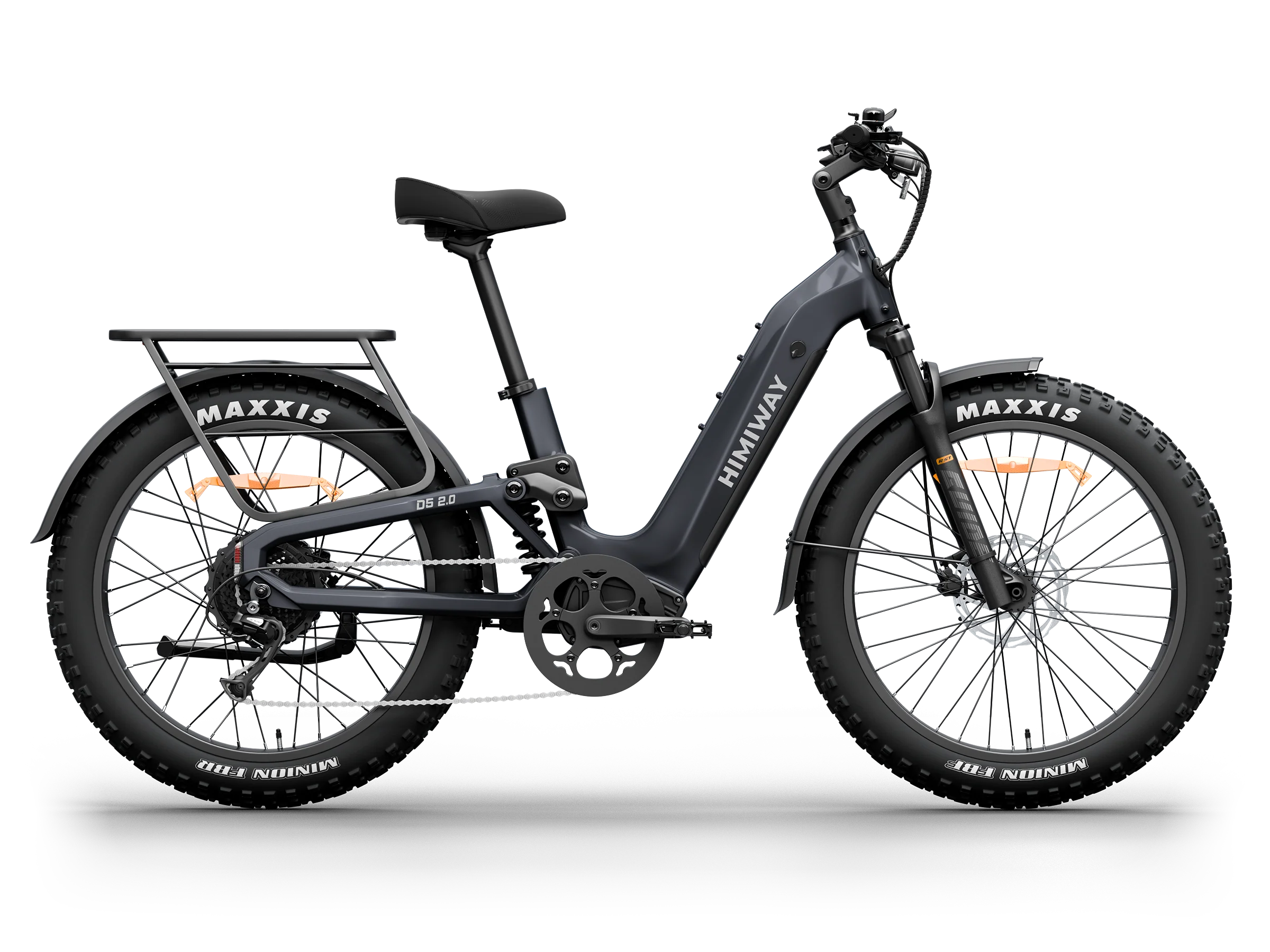

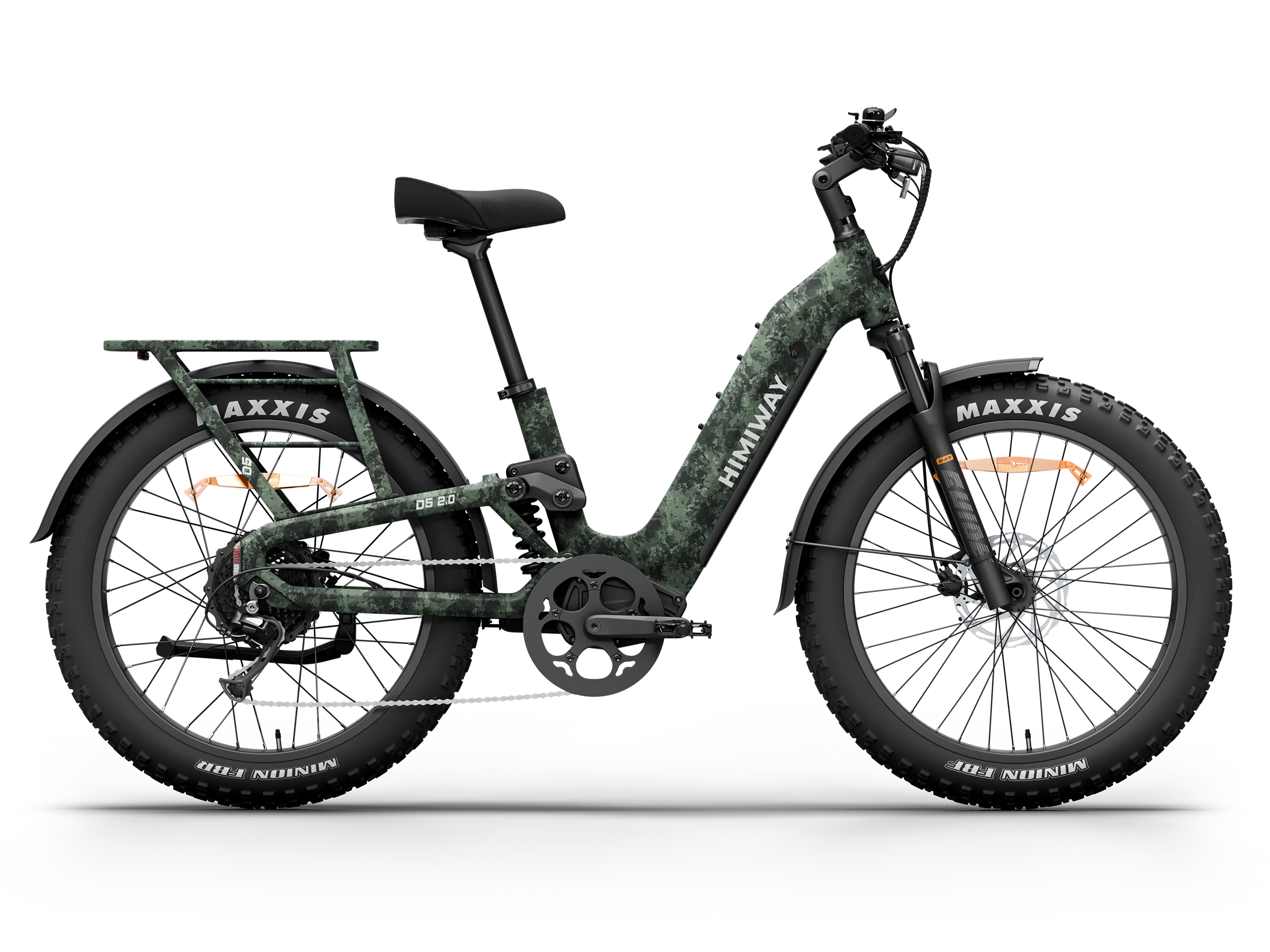

Buy Himiway D5 2.0 electric bike with 750W motor, good mile,UL-certified battery,full suspension, and fat tires built for all terrains and long-distance riding.
- Download your product manual here
What's Included in the Delivery?


Choose options

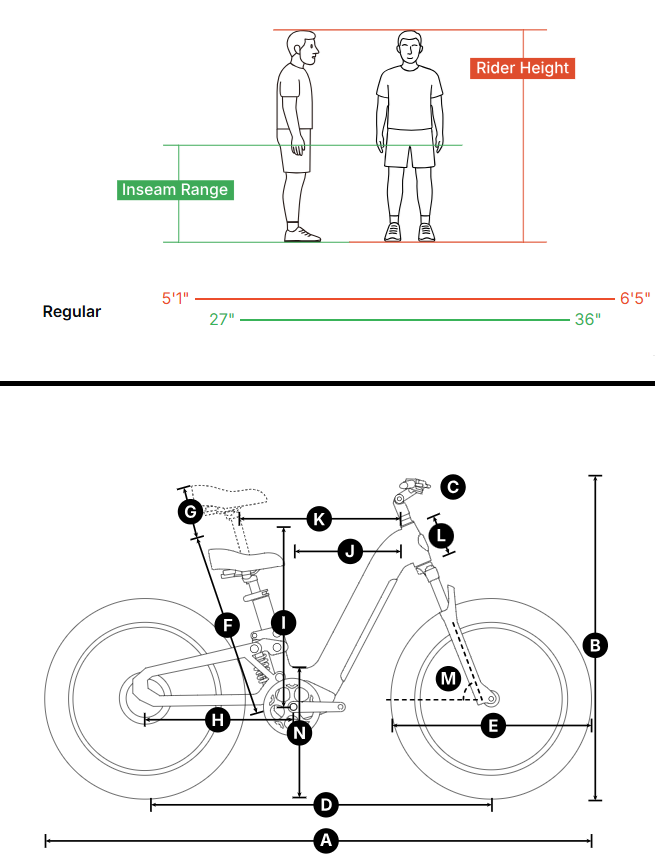

GEOMETRY
Total Length: 80.1 inch
Handlebar Height: 45.6 inch (0°)
Handlebar Width: 26.7 inch
Wheelbase: 49 inch
Wheel Diameter: 28.7 inch
Min Seat Height: 20 inch
Seat adjustment height: 5.9 inch
Chain Stay Length: 20.8 inch
Frame stack21.7 inch
Frame Reach: 16.6 inch
Effective top tube: 23.6 inch
Head Tube Length: 5.9 inch
Head angle: 70°
Standover Height: 19.3 inch
Recently viewed products
Coming from a Himiway Cruiser, this D5 2.0 rides like a Cadillac. If you want a smooth ride when getting your knees in the breeze, this is your bike.
We’re glad to hear you’ve been impressed with the D5’s performance, full suspension, smooth pedal assist, quiet ride, and overall comfort. Your real-world insights on battery behavior and setup adjustments are greatly appreciated. Thanks again for your support, and we hope the D5 serves you well on many future adventures.

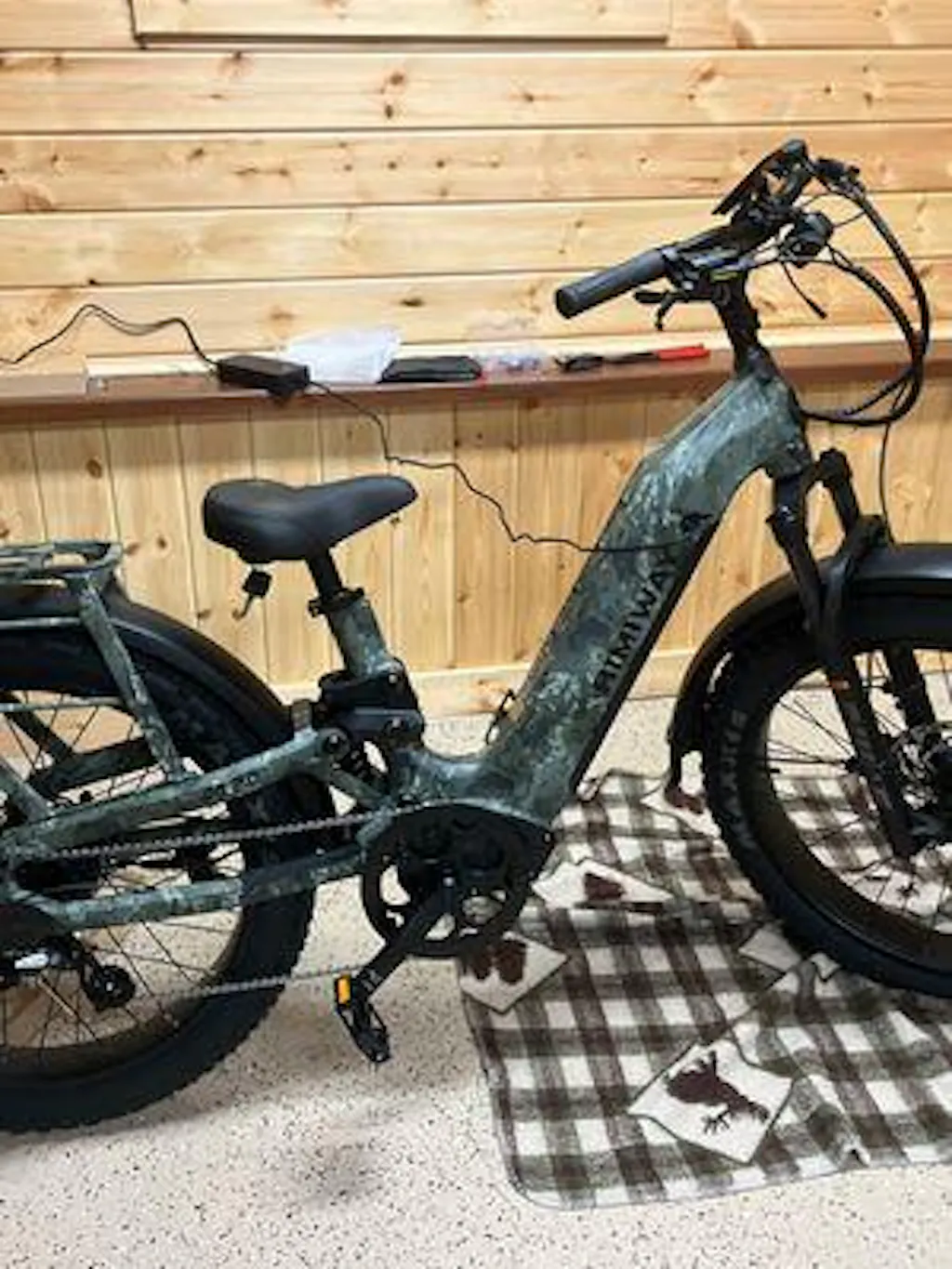

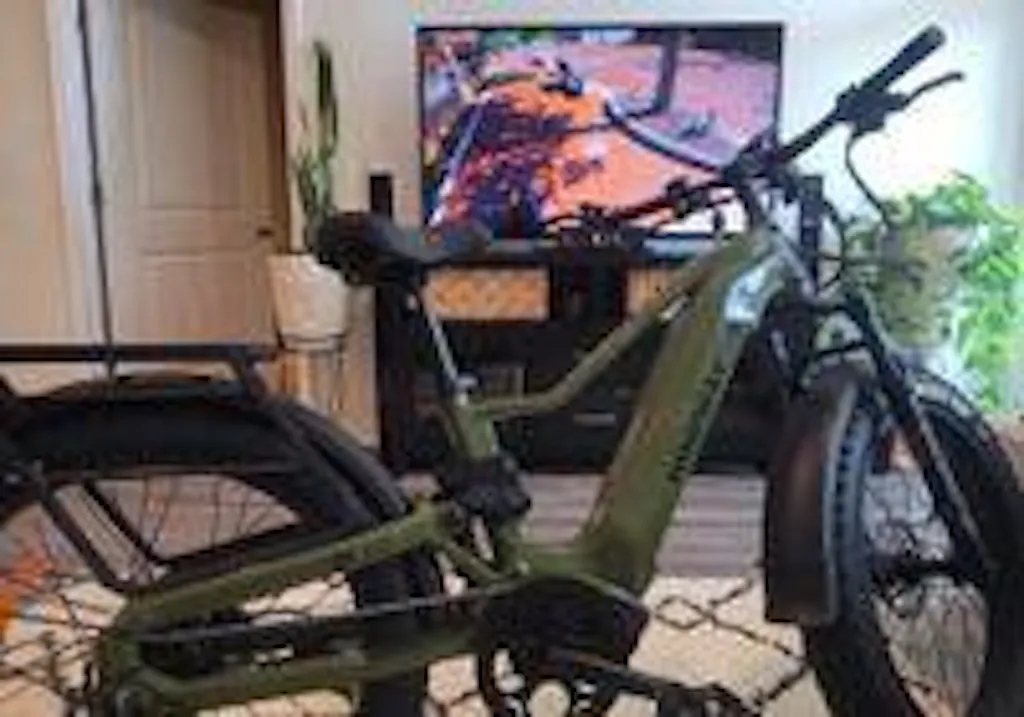

Received the D5 2.0 2 days after Christmas. It arrived in good condition, the bike was so well packed that i think a truck could had hit the box and it would had survived. Did not need instructions to assemble, it was pretty straightforward. I have a D3 Cruiser with over 300 miles on it, so i am quite familiar with these bikes. It took a little over 35 minutes to assemble, and assembly was accomplished with the Himiway tool, a 15mm wrench, and small adjustable wrench. Once i verified air pressure and charged the battery, i took it for a ride. The soft tail suspension is a game changer. It rode easily thru grass, and of course it was smooth on the road. I like the new color computer design, and the factory thumb-controlled throttle. I had converted the throttle on my D3 from the twist-type to thumb control, it is a lot more comfortable on the hand, and safer, as you won't accidentally actuate the throttle when gripping the handlebar. We use our Himiways on off road fishing trips where the terrain can be quite rough with rocks and small holes. Compared to my D3, which does a decent job with the front suspension, It will be nice having the rear suspension to navigate the rough terrain. I included a video below comparing my D3 to the D5 2.0, and the use case for our Himiways. Can't wait to get this bike out in the wild on excursions.
Received Bike for Christmas - very well packaged, instructions were easy to follow, bike was assembled in less than an hour, case with spare nuts and bolts a welcome addition.
First and foremost: Not extremely happy with the carrier. The bike was promised many days before arrival. Made myself available to receive package with a no show. Package arrived in ok condition. Some damages to box but nothing internal. Bike was packaged very well and everything was secure. Removal somewhat of a challenge but worth the effort as contents secure and not damaged. Assembly was straightforward as the technical parts are reassembled. The bike is heavy and battery removal will reduce weight. With that said manual states that keys for battery removal attached to handle bars. That was not the case in this situation as keys were found when bike was turned over to accept the front wheel so battery was left installed after that point. Some additional help may be required in assembly more because of weight and awkwardness when turning it upside down. Rest of assembly was self explanatory. Impressed with the new sleek screen. The handle bar adjustments provide much better fit to rider. Bike quality seems awesome. I don’t like the throttle on the left side as my other bikes are on the right similar to motorcycles and such. May be a learning curve there. Battery currently charging. Looking forward to my maiden journey. More to follow?
